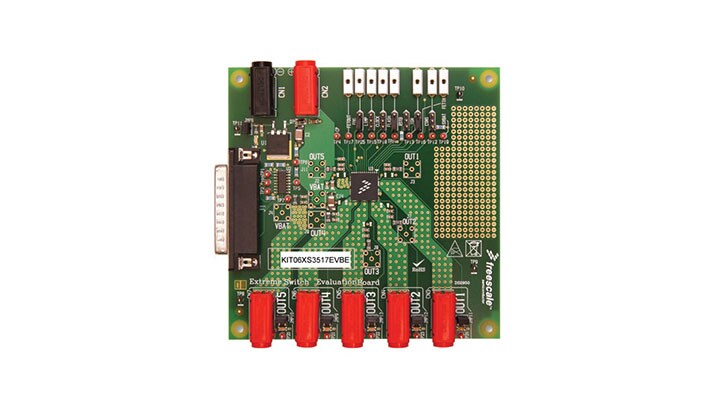

Evaluation Kit - MC06XS3517, Penta High Side Switch

Roll over image to zoom in

Product Details

Supported Devices

Power Management

High Side Switches



  • 16-bit SPI with daisy chain capability
  • Overcurrent shut down detection
  • Power net and reverse polarity protection
  • Low-power mode
  • Current sense output with SPI-programmable multiplex switch and board temperature feedback

User Components

  • Five high side switches
  • Fully protected switches
  • LEDs control including accurate current sensing and low duty cycle capability
  • External smart power switch control including current recopy

Tools and OS Support

  • Digital diagnosis feature

General Specifications

  • PWM module with multiphase feature including prescaler
  • Fail mode functions including auto restart feature

Buy Options


Click to expand

  • KIT06XS3517EVBE

  • Evaluation Kit - MC06XS3517, Smart High Side Switch Module (Triple 6.0 mOhm and Dual 17 mOhm).

  • $105.57USD
  • For a quantity of 1
Order from distributors
