KIT10XS3425EVBE
Active -
Evaluation Kit - MC10XS3425, Quad High Side Switch (Dual 10 mOhms, Dual 25 mOhm).
- KIT10XS3425EVBE Hardware
- Quick Reference Guide
Evaluation Kit - MC10XS3425, Quad High Side Switch

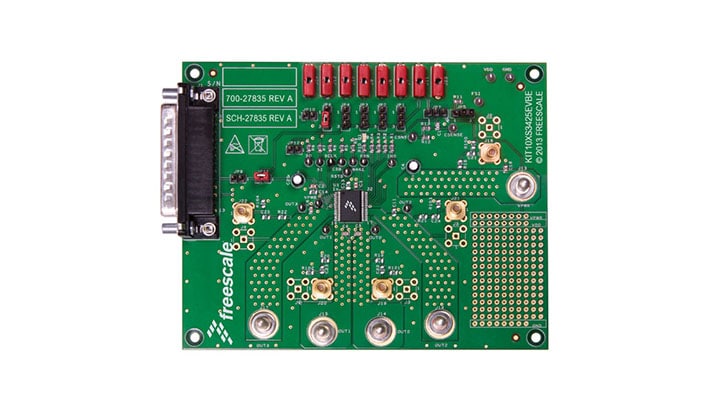

The KIT10XS3425EVBE is an easy-to-use circuit board that allows the user to exercise all the capabilities of the MC10XS3425, as a 12 V quad high side switch product family, with integrated control and a high number of protective and diagnostic functions. The MC10XS3425 is one in a family of devices designed for low-voltage automotive lighting applications. Its four low RDS(ON) MOSFETs can control four separate 55 W/28 W bulbs, and/or Xenon modules, and/or LEDs.
Product Details
Supported Devices
Power Management
High Side Switches
- MC12XS3: 12 V Automotive Exterior Lighting Multi eXtreme Switch
Features
KIT10XS3425
- Four separate 55 W/28 W bulbs
- Four separate Xenon modules
- Four separate LEDs
- Four separate Other types of loads
This family of devices is designed for low-voltage automotive lighting applications. Its four low RDS(ON) MOSFETs can control:
MC10XS3425
- Four protected high side switches
- Operating voltage range of 6.0 to 20 V, with sleep current < 5.0 μA, extended mode from 4.0 to 28 V
- 8.0 MHz 16-bit 3.3 V and 5.0 V SPI control and status reporting with daisy chain capability
- PWM module using external clock or internal oscillator
- Smart overcurrent shutdown, severe short-circuit, over-temperature protections with time limited auto-retry, and fail-safe mode in case of MCU damage
- Output OFF or ON open-load detection compliant to bulbs or LEDs and short-to-battery detection
