Octal Valve Controller System on Chip

MC34SB0800

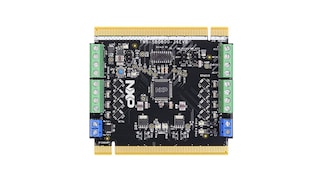

Roll over image to zoom in

Product Details

Block Diagram

MC34SB0800 Octal Valve and Pump Controller Block Diagram

Features

Supply Voltage

  • Up to 36 V

Low Side Drivers (x8)

  • Four low side drivers regulated up to 2.25 A
  • +/-2.0% precision reachable with calibration
  • Four low side drivers PWM up to 5 kHz with a maximum current capability up to 5 A
  • All low side drivers are integrated to save PCB space

High Side Pre-Driver

  • Allows to control a DC motor pump up to 500Hz

High Side Pre-Driver Fail Safe Switch

  • Safe MosFet turned off all the valves and the motor in case of issues

10-Bit ADC

  • ADC can monitor external or internal signals to enhance the control unit safety level

Embedded Supervision

  • Watchdog
  • Under-voltage, over-voltage, clock fail detection
  • Open load, short circuit, over temperature detection on each low side
  • Vds monitoring of each low side driver in real time
  • Over current and over temperature detection on the high side pre-driver

Serial Peripheral Interface (SPI)

  • Only one SPI is needed to control the device
  • MCU sent only once the current or the duty-cycle targeted through the SPI
  • MCU does not need to generate PWM signals at high frequency

Key Parametrics

  • Load Supply Voltage (Min) (V)
    6
  • Load Supply Voltage (Max) (V)
    36
  • Interface and Input Control
    SPI / SPI
