MAC7136: 32-bit Automotive Microcontrollers

Overview

The MAC7136 is a member of a pin-compatible family of 32-bit Flash memory-based devices developed specifically for embedded automotive applications. It addresses the growing demand for cost-effective 32-bit performance enhancements as traditional body, chassis and safety application exceed the performance scope of many 16-bit offerings.

MoreLess

Features

32-bit Arm7TDMI-S™ RISC core, up to 50 MHz operating frequency
Enhanced DMA with channel multiplexer
1 Mbyte program Flash EEPROM
32 Kbyte data Flash EEPROM
48 Kbyte RAM
16-bit external bus interface to support off-chip devices
Two 16-channel, 10-bit analog-to-digital converters
16-channel enhanced modular I/O timer subsystem
Four enhanced serial communications interfaces
Four CAN 2.0 software compatible interfaces
Two serial peripheral interfaces (SPI)
One I²C bus interface
10-channel, 24-bit periodic interrupt timer
144 general purpose input/output port pins shared with peripherals, with optional wake-up interrupts and 3.3 V to 5 V input and drive capability
Flexible interrupt controller
JTAG test access port (TAP) and Embedded ICE debug interfaces, with real-time instruction trace support via Nexus Class 2 Plus interface
On-chip clock generation with selectable standard or low-power Pierce oscillator driving a phase-locked loop clock frequency multiplier
On-chip dual 2.5 V linear voltage regulator
208-pin MAP BGA package

Please note that the complete listing of MAC7136 devices is available only to Tier 1 Automotive vendors.

MoreLess

Features

32-bit Arm7TDMI-S™ RISC core, up to 50 MHz operating frequency
Enhanced DMA with channel multiplexer
1 Mbyte program Flash EEPROM
32 Kbyte data Flash EEPROM
48 Kbyte RAM
16-bit external bus interface to support off-chip devices
Two 16-channel, 10-bit analog-to-digital converters
16-channel enhanced modular I/O timer subsystem
Four enhanced serial communications interfaces
Four CAN 2.0 software compatible interfaces
Two serial peripheral interfaces (SPI)
One I²C bus interface
10-channel, 24-bit periodic interrupt timer
144 general purpose input/output port pins shared with peripherals, with optional wake-up interrupts and 3.3 V to 5 V input and drive capability
Flexible interrupt controller
JTAG test access port (TAP) and Embedded ICE debug interfaces, with real-time instruction trace support via Nexus Class 2 Plus interface
On-chip clock generation with selectable standard or low-power Pierce oscillator driving a phase-locked loop clock frequency multiplier
On-chip dual 2.5 V linear voltage regulator
208-pin MAP BGA package

Please note that the complete listing of MAC7136 devices is available only to Tier 1 Automotive vendors.

Data Sheets

Application Notes

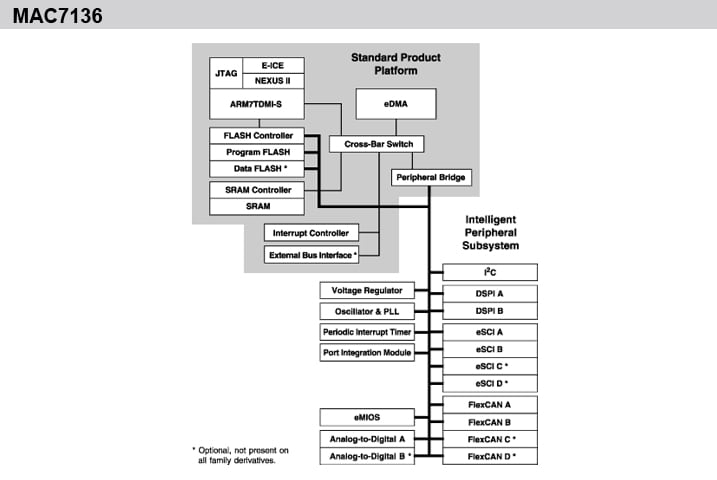

MAC7136_BD Block Diagram

MAC7136_BD Block Diagram

MAC7136_BD Block Diagram
