BGU8009 GNSS LNA Evaluation Board

OM7820
Active

Roll over image to zoom in

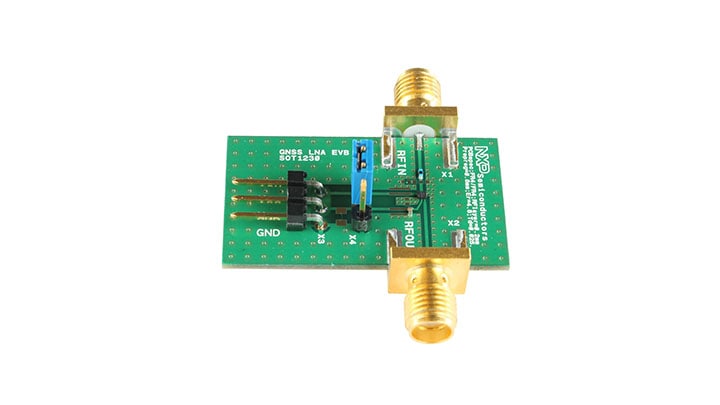

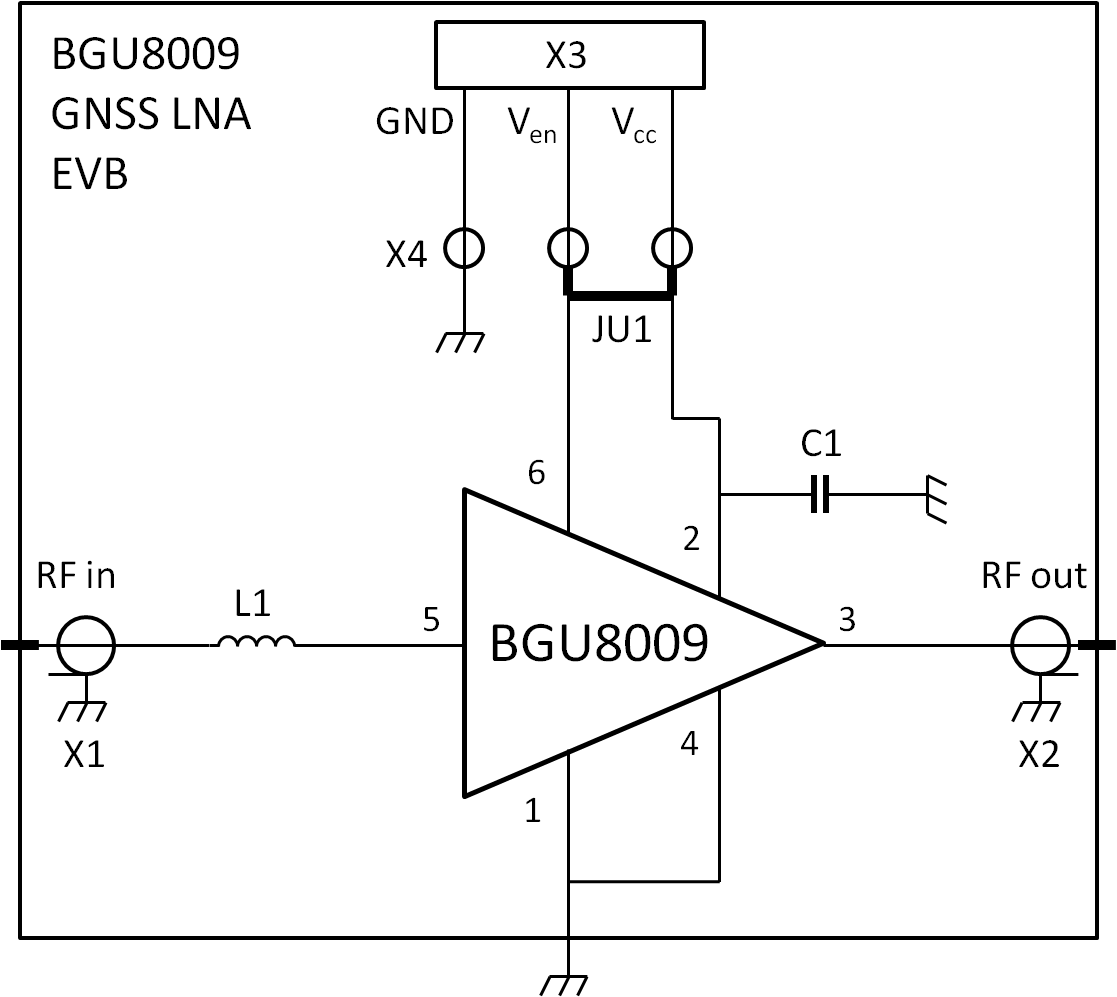

The BGU8009 GPS LNA evaluation board simplifies the evaluation of the BGU8009 LNA for the GPS application. The evaluation board enables testing of the device performance and requires no additional support circuitry. The board is fully assembled with the BGU8009, the input series inductor and a decoupling capacitor. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU8009 can operate from a 1.5 V to 3.1 V single supply and consumes about 4.4 mA.

Supported Devices

RF

Legacy RF Low-Medium Power Amplifiers

  • BGU8009: SiGe:C Low Noise Amplifier MMIC for GPS, GLONASS, Galileo and Compass

Features

Key Features

  • Covers full GNSS L1 band, from 1559 MHz to 1610 MHz
  • Noise figure (NF) = 0.70 dB
  • Gain = 17.8 dB
  • High input 1 dB compression point of -7 dBm
  • High out of band IP3I of 6 dBm
  • Integrated temperature stabilized bias for easy design
  • Requires only one input matching inductor and one supply decoupling capacitor
  • ESD protection on all pins (HBM > 2 kV)
  • Integrated matching for the output
  • 1.1 x 0.9 x 0.5 mm³; 0.4 mm pitch: SOT1230
  • 180 GHz transit frequency - SiGe:C technology

Power Management

  • Supply voltage 1.5 V to 3.1 V
  • Power-down mode current consumption < 1 µA
  • Input and output DC decoupled
  • Optimized performance at very low supply current of 4.4 mA

Buy Options

OM7820-Image

Click to expand

  • OM7820
    Active

  • BGU8009 GNSS LNA evaluation board.

    • BGU8009 LNA evaluation board in ESD safe packing
  • $160.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
