BGU8103 GNSS LNA evaluation board

OM7896
No Longer Manufactured

Roll over image to zoom in

The BGU8103 GNSS LNA evaluation board simplifies the evaluation of the BGU8103 LNA for the GNSS application. The evaluation board enables testing of the device performance and requires no additional support circuitry. The board is fully assembled with the BGU8103, the input series inductor and a decoupling capacitor. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU8103 can operate from a 1.5 V to 3.1 V single supply and consumes about 1.2 mA.

Supported Devices

RF

Legacy RF Low-Medium Power Amplifiers

  • BGU8103: SiGe:C Low-Noise Amplifier MMIC for GPS, GLonASS, Galileo and COMPASS

Features

  • Covers full GNSS L1 band, from 1559 MHz to 1610 MHz:
    • Noise figure (NF) = 0.9 dB
    • Gain = 17.5 dB
    • High input 1 dB compression point of -13 dBm
    • High out of band IP3i of -7 dBm
    • Supply voltage 1.5 V to 3.1 V
    • Optimized performance at low supply current of 1.2 mA
    • Power-down mode current consumption < 1 µA
    • Integrated temperature stabilized bias for easy design
    • Requires only one input matching inductor and one supply decoupling capacitor
    • Input and output DC decoupled
    • ESD protection on all pins (HBM > 2 kV)
    • Integrated matching for the output
    • Available in a plastic extremely thin and small outline 6-pins leadless package: 1.1 mm x 0.7 mm x 0.37 mm; 0.4 mm pitch: SOT1232
    • 180 GHz transit frequency - SiGe:C technology

Buy Options

OM7896-Image

Click to expand

OM7896
No Longer Manufactured

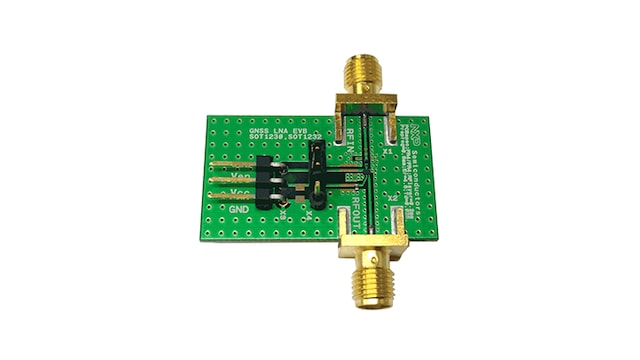

BGU8103 GNSS LNA evaluation board.
