BGU8L1UK LTE LNA Evaluation Board

OM7897
Active

Roll over image to zoom in

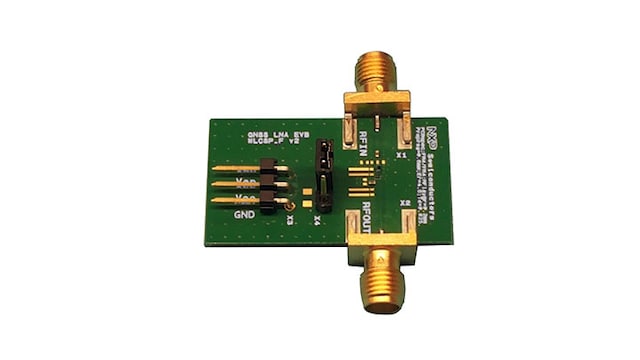

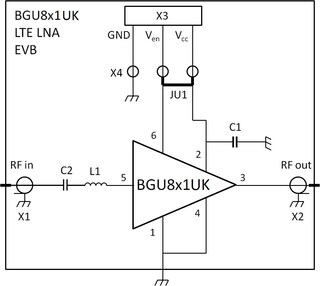

The BGU8L1UK LTE LNA evaluation board simplifies the evaluation of the BGU8L1UK LNA for the LTE application. The evaluation board enables testing of the device performance and requires no additional support circuitry. The board is fully assembled with the BGU8L1UK, the input series inductor, input DC blocking capacitor and a decoupling capacitor. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU8L1UK can operate from a 1.5 V to 3.1 V single supply and consumes about 4.6 mA.

Product Details

Features

Key Features

  • Noise figure (NF) = 0.70 dB
  • Integrated temperature stabilized bias for easy design
  • Integrated matching for the output
  • 180 GHz transit frequency - SiGe:C technology

Power Management

  • The BGU8L1UK is optimized for 728 MHz to 960 MHz
  • Supply voltage 1.5 V to 3.1 V
  • Optimized performance at low 4.6 mA supply current
  • Power-down mode current consumption < 1 µA
  • Input and output DC decoupled
  • ESD protection on all pins (HBM > 2 kV)
  • Requires only one input matching inductor, input DC blocking capacitor, and one supply decoupling capacitor

Connectivity

  • Gain = 16 dB
  • High input 1 dB compression point of -6 dBm
  • High out of band IP3i of 2 dBm

Size

  • 0.65 mm x 0.44 mm x 0.2 mm; 0.22 mm pitch

Buy Options

OM7897-Image

Click to expand

OM7897
Active

BGU8L1UK LTE LNA evaluation board.
