BGU8M1UK LTE LNA evaluation board

OM7898
Active

Roll over image to zoom in

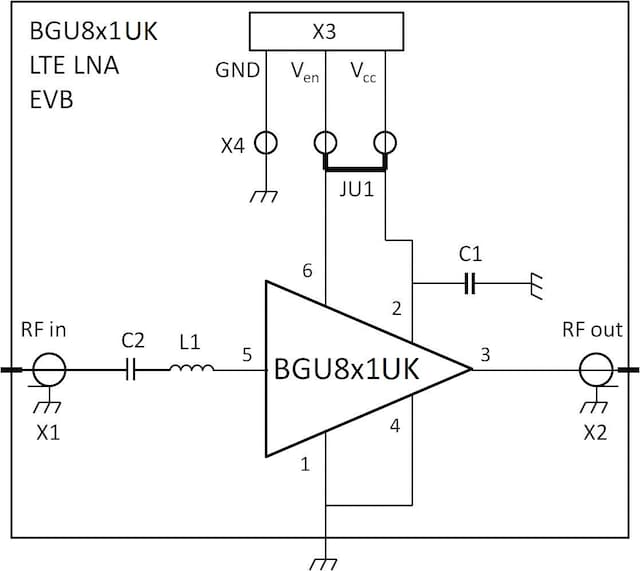

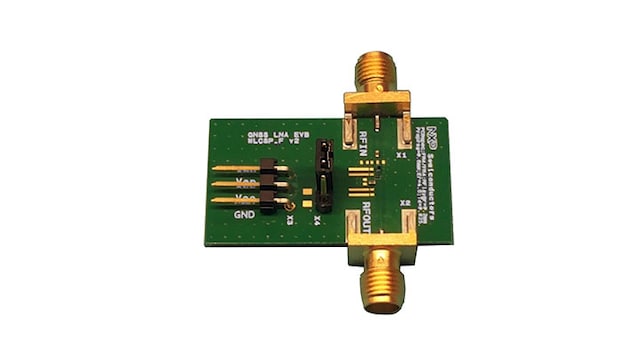

The BGU8M1UK LTE LNA evaluation board simplifies the evaluation of the BGU8M1UK LNA for the LTE application. The evaluation board enables testing of the device performance and requires no additional support circuitry. The board is fully assembled with the BGU8M1UK, the input series inductor, input DC blocking capacitor and a decoupling capacitor. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU8M1UK can operate from a 1.5 V to 3.1 V single supply and consumes about 4.3 mA.

Product Details

Features

  • Noise figure (NF) = 0.80 dB
  • Gain = 16 dB
  • High input 1 dB compression point of -4 dBm
  • High out of band IP3i of 2 dBm

Power Management

  • The BGU8M1UK is optimized for 1805 MHz to 2200 MHz
  • Supply voltage 1.5 V to 3.1 V
  • Optimized performance at low 5 mA supply current
  • Power-down mode current consumption < 1 µA
  • ESD protection on all pins (HBM > 2 kV)
  • Requires only one input matching inductor, input DC blocking capacitor, and one supply decoupling capacitor
  • Input and output DC decoupled

Size

  • 0.65 mm x 0.44 mm x 0.2 mm; 0.22 mm pitch
  • 180 GHz transit frequency - SiGe:C technology
  • Integrated matching for the output
  • Integrated temperature stabilized bias for easy design

Buy Options

OM7898-Image

Click to expand

OM7898
Active

BGU8M1UK LTE LNA evaluation board.
