GPS Low-Noise Amplifier Front-End Evaluation Board Using BGU7007

OM7806
Active

Roll over image to zoom in

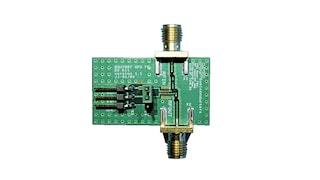

The BGU7007 GPS front-end evaluation board simplifies the evaluation of the BGU7007 LNA for the GPS application. Two Surface Acoustic Wave filters have been added to facilitate the evaluation of the complete GPS front-end. The board is fully assembled with the BGU7007, two identical SAW filters, the input series inductor and a decoupling capacitor. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU7007 can operate from a 1.5 V to 2.85 V single supply and consumes about 4.7 mA.

Supported Devices

RF

Legacy RF Low-Medium Power Amplifiers

  • BGU7007: SiGe:C LNA MMIC for GPS, GLONASS, Galileo and Compass

Features

Connectivity

  • Two SMA connectors for input and output connection to RF test equipment

Power Management

  • Evaluation of the power on settling time ton and the power off settling time toff

Buy Options

OM7806-Image

Click to expand

OM7806
Active

GPS low-noise amplifier front-end evaluation board using BGU7007.
