GPS Low-Noise Amplifier Front-End Evaluation Board Using BGU7008

OM7815
Active

Roll over image to zoom in

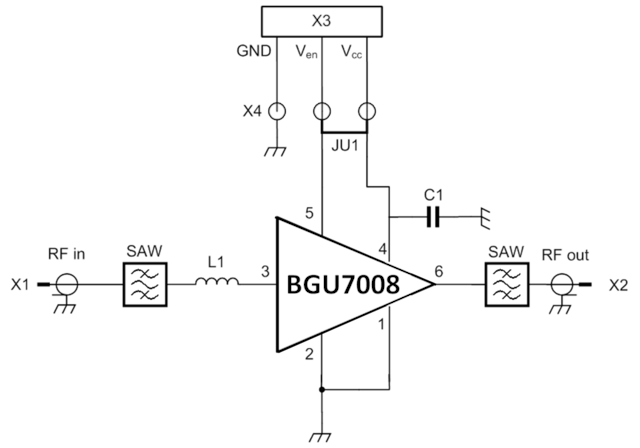

The BGU7008 GPS front-end evaluation board simplifies the evaluation of the BGU7008 LNA for the GPS application. Two Surface Acoustic Wave filters have been added to facilitate the evaluation of the complete GPS front-end. The board is fully assembled with the BGU7008, two identical SAW filters, the input series inductor and a decoupling capacitor. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU7008 can operate from a 1.5 V to 2.85 V single supply and consumes about 4.7 mA.

Supported Devices

RF

Legacy RF Low-Medium Power Amplifiers

  • BGU7008: SiGe:C Low Noise Amplifier MMIC for GPS, GLONASS, Galileo and Compass

Features

Connectivity

  • Two SMA connectors for input and output connection to RF test equipment

Power Management

  • Evaluation of the power on settling time ton and the power off settling time toff

Buy Options

OM7815-Image

Click to expand

OM7815
Active

GPS low-noise amplifier front-end evaluation board using BGU7008.
