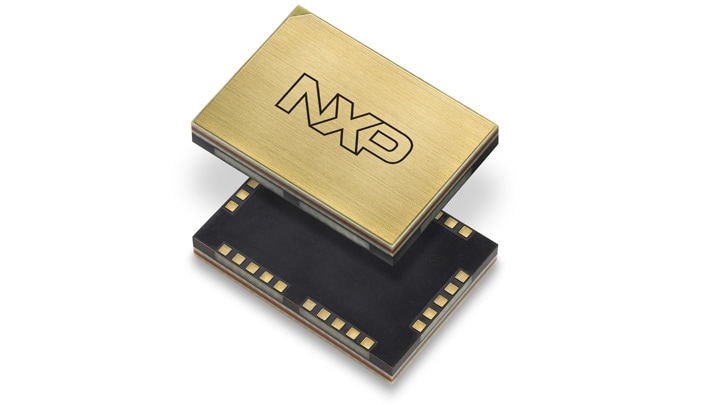

The A5M36TG040−TC is a fully integrated Doherty power amplifier module designed for wireless infrastructure applications that demand high performance in the smallest footprint. Ideal for applications in massive MIMO systems, outdoor small cells and low power remote radio heads. The field−proven LDMOS and GaN power amplifiers are designed for TDD LTE and 5G systems.
Typical LTE Performance: Pout = 10 W Avg., VDC1 = VDP1 = 5 Vdc, VDC2 = VDP2 = 48 Vdc, 1 × 20 MHz LTE, Input Signal PAR = 8 dB @ 0.01% Probability on CCDF. (1)
| Carrier Center Frequency | Gain (dB) | ACPR (dBc) | PAE (%) |
| 3410 MHz | 31.0 | –27.7 | 42.9 |
| 3600 MHz | 31.2 | –28.2 | 46.9 |
| 3790 MHz | 31.0 | –31.7 | 45.4 |
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Quick reference to our documentation types.
2 documents
Compact List
1 design file
Receive the full breakdown. See the product footprint and more in the eCad file.

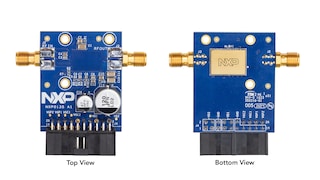

1 hardware offering
