GPS/GNSS Low-Noise Amplifier Evaluation Board Using BGU7008

OM7805 Active

Roll over image to zoom in

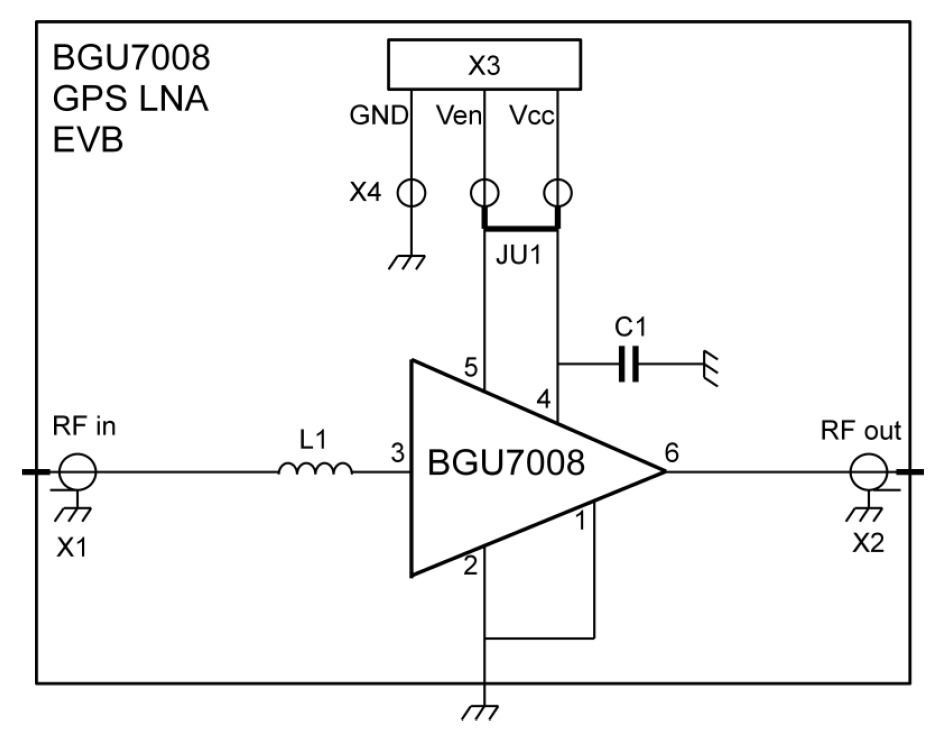

The BGU7008 GPS LNA evaluation board simplifies the evaluation of the BGU7008 LNA for the GPS application. The evaluation board enables testing of the device performance and requires no additional support circuitry. The board is fully assembled with the BGU7008, the input series inductor and a decoupling capacitor. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU7008 can operate from a 1.5 V to 2.85 V single supply and consumes about 4.7 mA.

Supported Devices

RF

Legacy RF Low-Medium Power Amplifiers

  • BGU7008: SiGe:C Low Noise Amplifier MMIC for GPS, GLONASS, Galileo and Compass

Features

Connectivity

  • Two SMA connectors for input and output connection to RF test equipment

Power Management

  • Evaluation of the power on settling time ton and the power off settling time toff

Buy Options

OM7805-Image

Click to expand

  • OM7805
    Active

  • GPS/GNSS low-noise amplifier evaluation board using BGU7008.

    • BGU7008 LNA evaluation board in ESD safe packing
  • For a quantity of 1
Order from distributors
