OM7897
-
BGU8L1UK LTE LNA evaluation board.
- BGU8L1UK LNA evaluation board in ESD safe packing
Design Files
1 design file
-
Design Files - miscellaneous
OM7897_8_9 board layout file
BGU8L1UK LTE LNA evaluation board
OM7897 Receive alerts

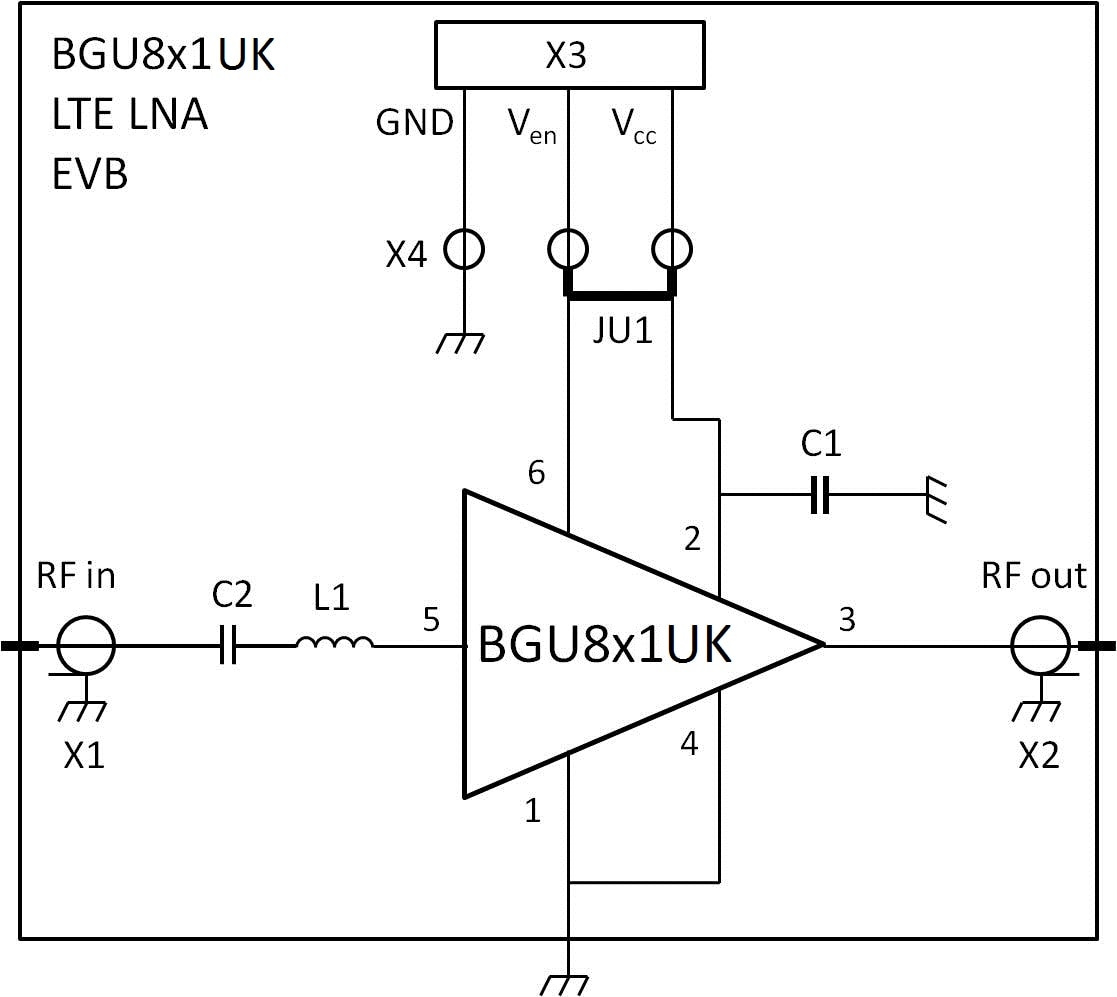

The BGU8L1UK LTE LNA evaluation board simplifies the evaluation of the BGU8L1UK LNA for the LTE application. The evaluation board enables testing of the device performance and requires no additional support circuitry. The board is fully assembled with the BGU8L1UK, the input series inductor, input DC blocking capacitor and a decoupling capacitor. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU8L1UK can operate from a 1.5 V to 3.1 V single supply and consumes about 4.6 mA.
Product Details
Features
- Noise figure (NF) = 0.70 dB
- Gain = 16 dB
- High input 1 dB compression point of -6 dBm
- High out of band IP3i of 2 dBm
Power Management
- The BGU8L1UK is optimized for 728 MHz to 960 MHz
- Supply voltage 1.5 V to 3.1 V
- Optimized performance at low 4.6 mA supply current
- Power-down mode current consumption < 1 µA
- Input and output DC decoupled
- ESD protection on all pins (HBM > 2 kV)
- Requires only one input matching inductor, input DC blocking capacitor, and one supply decoupling capacitor
Size
- 0.65 mm x 0.44 mm x 0.2 mm; 0.22 mm pitch
- Integrated temperature stabilized bias for easy design
- Integrated matching for the output
- 180 GHz transit frequency - SiGe:C technology
