Wideband Silicon Low-Noise Amplifier MMIC

BGU6102

The BGU6102 MMIC is an unmatched wideband MMIC featuring an integrated bias, enable function and wide supply voltage. BGU6102 is part of a family of three products (BGU6101, BGU6102 and BGU6104) and is optimized for 2 mA operation.

See product image

Product Details

Select a section:

Features

  • Supply voltage range from 1.5 V to 5 V
  • Current range up to 20 mA at 3 V and 40 mA at 5 V supply voltage
  • NFmin of 0.7 dB
  • Applicable between 40 MHz and 4 GHz
  • Integrated temperature-stabilized bias for easy design
  • Bias current configurable with external resistor
  • Power-down mode current consumption < 6 µA
  • ESD protection on all pins up to 3 kV HBM
  • Small 6-pin leadless package 2.0 mm x 1.3 mm x 0.35 mm

Target Applications

  • FM radio
  • Mobile TV, CMMB
  • ISM
  • Wireless security
  • RKE, TPMS
  • AMR, ZigBee, Bluetooth
  • WiFi, WLAN (2.4 GHz)
  • Low current applications

Documentation

Quick reference to our documentation types.

Filters

1-5 of 7 documents

Show All

Design Resources

Select a section:

Design Files

Filters

1 design file

  • Models

    S-parameters BGU6102

    ZIPRev 1.0Apr 23, 2019 00:00:00117.0 KBSPAR_BGU6102
    Download

Hardware

Filters

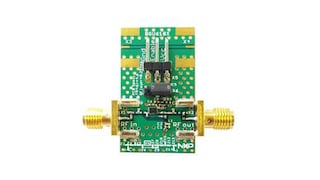

3 hardware offerings
