SiGe:C Low-Noise Amplifier MMIC for GPS, GLONASS, Galileo and Compass

See product image

Product Details

Select a section:

Features

  • Cover full GNSS L1 band, from 1559 MHz to 1610 MHz
  • Noise figure (NF) = 0.55 dB
  • Gain 18.5 dB
  • High input 1 dB compression point of -7 dBm
  • High out of band IP3i of 6 dBm
  • Supply voltage 1.5 V to 3.1 V
  • Self-shielding package concept
  • Integrated supply decoupling capacitor
  • Optimized performance at a supply current of 4.6 mA
  • Power-down mode current consumption < 1 μA
  • Integrated temperature stabilized bias for easy design

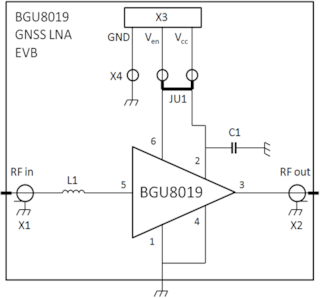

  • Require only one input matching inductor
  • Input and output DC decoupled
  • ESD protection on all pins (HBM > 2 kV)
  • Integrated matching for the output
  • Available in 6-pins leadless package 1.1 mm x 0.7 mm x 0.37 mm; 0.4 mm pitch: SOT1232
  • 180 GHz transit frequency - SiGe:C technology
  • Moisture sensitivity level of 1
  • LNA for GPS, GLONASS, Galileo, and Compass (BeiDou) in smartphones, feature phones, tablet PCs, digital still cameras, digital video cameras, RF front-end modules, complete GNSS modules and personal health applications

Part numbers include: BGU8019.
