BGU8061 S-parameters
Low-Noise High-Linearity Amplifier
BGU8061 Receive alerts

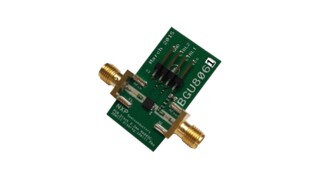

The BGU8061 is, also known as the BTS3001L, a high-linearity bypass amplifierfor wireless infrastructure applications, equipped with fast shutdown to support TDDsystems. The LNA has a high input and output return loss and is designed to operate between 0.7 GHz and 1.5 GHz. It is housed in a 3 mm × 3 mm × 0.85 mm 10-terminal plastic thin small outline package. The LNA is ESD protected on all terminals.
sot650-2_3d
Product Details
Features
- Low-noise performance: NF = 1.1 dB
- High-linearity performance: IP3O = 36.5 dBm
- High-input return loss > 10 dB
- High-output return loss > 10 dB
- Unconditionally stable up to 20 GHz
- Small 10-terminal leadless package 3 mm x 3 mm x 0.85 mm
- ESD protection on all terminals
- Moisture sensitivity level 1
- Fast shut down to support TDD systems
- +5 V single supply
Target Applications
- Wireless infrastructure
- Low noise and high-linearity applications
- LTE, W-CDMA, CDMA, GSM
- General-purpose wireless applications
- TDD or FDD systems
-
Suitable for small cells
Part numbers include: BGU8061.
Documentation
Quick reference to our documentation types.
2 documents
-
Data Sheet
low-noise high-linearity amplifier
-
Application Note
BGU8061 700-1500MHz High linear bypass LNA
