2.4 GHz ISM SiGe:C Low-Noise Amplifier MMIC with Bypass

See product image

Product Details

Select a section:

Features

  • IEEE 802.11b/g/n WiFi, WLAN (including 256 QAM enabling “802.11n turbo”)
  • Fully integrated, high performance LNA with built-in bypass

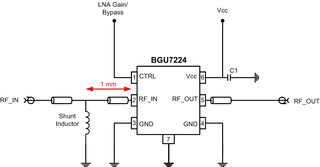

  • Integrated DC blocking at RF input and RF output, with only one external component needed
  • Low 1.0 dB noise figure with 13 mA current consumption
  • Low bypass current of 2 μA (typical)
  • Single supply 3.0 V to 3.6 V operation
  • Integrated, temperature stabilized bias network
  • Integrated concurrent 5 GHz notch filter
  • High IP3i and low EVM
  • High ESD protection of 2 kV (HBM) on all pins
  • Small, 0.5 mm pitch, 1.6 mm x 1.6 mm x 0.5 mm QFN-style package, MSL 1 at 260 °C
  • Compliant to Directive 2002/95/EC, regarding Restriction of Hazardous Substances (RoHS) following NXP’s RHF-2006 indicator D (dark green)

Target Applications

  • IEEE 802.11b/g/n WiFi, WLAN
  • Bluetooth
  • IEEE 802.15.4 PAN
  • Smartphones, tablets, netbooks and other portable computing devices
  • Access points, routers, gateways
  • Wireless video
  • General purpose ISM applications
