OM7800: Low-noise amplifier evaluation board with BGU7003 for 2.4 GHz ISM/WLAN

Name: Low-noise amplifier evaluation board with BGU7003 for 2.4 GHz ISM/WLAN
Price: 160.00 USD

Overview

The BGU7003 LNA evaluation board simplifies the evaluation of the BGU7003 LNA for the 100 MHz FM application. The evaluation board enables testing of the device performance and requires no additional support circuitry. The board is fully assembled with the BGU7003, including the input and output matching circuitry as well as a decoupling capacitors to optimize the performance. The board is supplied with two SMA connectors for input and output connection to RF test equipment. The BGU7003 board is optimized for 2.8 V operation and consumes about 5 mA.

MoreLess

OM7800: Low-noise amplifier evaluation board with BGU7003 for 2.4 GHz ISM/WLAN

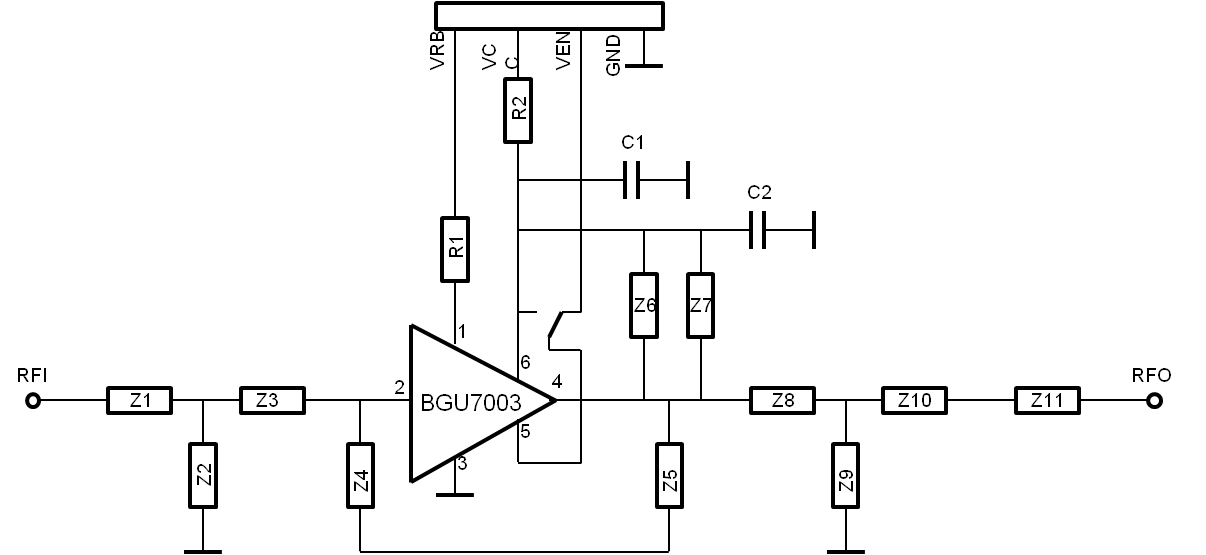

OM7800 functional diagram

OM7800: Low-noise amplifier evaluation board with BGU7003 for 2.4 GHz ISM/WLAN

Specifications

Technical and Functional Specifications

Connectivity	Two SMA connectors for input and output connection to RF test equipment
Power Management	Evaluation of the power on settling time t_on and the power off settling time t_off

Buy

OM7800 ^Active
Low-noise amplifier evaluation board with BGU7003 for 2.4 GHz ISM/WLAN
- BGU7003 LNA evaluation board in ESD safe packing

- OM7800/BGU7003/100
- 1 @ US
- $160.00

Design Resources

Documents ( 1 )

User Guide ( 1 )

Documents

User Guide ( 1 )

User manual for the BGU7003 100MHz LNA evaluation board^{(REV
1.1
)}
- PDF
- 602.7 kB
- 15 Dec 2011
- UM10455
- [ English ]

Target Applications

FM applications, like portable audio devices and mobile computing devices like feature phones, tablet PC's and notebook PC's.
