High-Performance Low-Power Mixer FM IF System

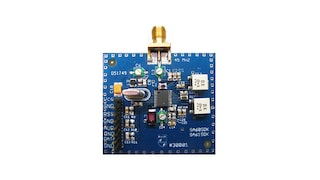

Product Details

Select a section:

Block Diagram

SA615 Block Diagram

SA615 Block Diagram

Features

  • Low power consumption: 5.7 mA typical at 6 V
  • Mixer input to >500 MHz
  • Mixer conversion power gain of 13 dB at 45 MHz
  • Mixer noise figure of 4.6 dB at 45 MHz
  • XTAL oscillator effective to 150 MHz (L/C oscillator to 1 GHz local oscillator can be injected)
  • 102 dB of IF amplifier/limiter gain
  • 25 MHz limiter small signal bandwidth
  • Temperature-compensated logarithmic Received Signal Strength Indicator (RSSI) with a dynamic range in excess of 90 dB
  • Two audio outputs — muted and unmuted
  • Low external component count; suitable for crystal/ceramic/LC filters
  • Excellent sensitivity: 0.22 μV into 50 Ω matching network for 12 dB SINAD (Signal-to-Noise-and-Distortion ratio) for 1 kHz tone with RF at 45 MHz and IF at 455 kHz
  • SA615 meets cellular radio specifications
  • ESD hardened

Target Applications

  • Cellular radio FM IF
  • High performance communications receivers
  • Single conversion VHF/UHF receivers
  • SCA receivers
  • RF level meter
  • Spectrum analyzer
  • Instrumentation
  • FSK and ASK data receivers
  • Log amps
  • Wideband low current amplification
