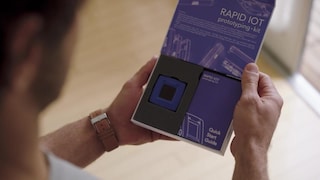

NXP Rapid IoT prototyping kit

NXP Rapid IoT prototyping kit

Introducing the NXP Rapid IoT prototyping kit

Introducing the NXP Rapid IoT prototyping kit  thumbnail

Introducing the Rapid IoT Prototyping Kit at Embedded World 2018

Introducing the Rapid IoT Prototyping Kit at Embedded World 2018  thumbnail

Kit Contains

  • Rapid IoT Prototyping Kit
  • Quick Start Guide
  • USB cable

Supported Devices

  • K64_120: Kinetis® K64-120 MHz, 256KB SRAM Microcontrollers (MCUs) based on Arm Cortex®-M4 Core
  • KW41Z: Kinetis® KW41Z-2.4 GHz Dual Mode: BLE and 802.15.4 Wireless Radio Microcontroller (MCU) based on Arm® Cortex®-M0+ Core
  • NT3H2111_2211: NTAG® I2C plus, NFC Forum Type 2 Tag with I²C interface
  • FXAS21002C: 3-Axis Digital Gyroscope
  • FXOS8700CQ: Digital Motion Sensor - 3D Accelerometer (±2g/±4g/±8g) + 3D Magnetometer
  • MPL3115A2: 20 to 110kPa, Absolute Digital Pressure Sensor
  • NX3L2267: Low-ohmic dual single-pole double-throw analog switch
  • NX3P191UK: Logic controlled high-side power switch
  • PCF2123: SPI Real-time clock/calendar
  • MC34671: 600 mA Single-cell Li-Ion/Li-Polymer Battery Charger
  • A1006: Secure Authenticator IC
