15 W LDO Wireless Charging Receiver Reference Design

RDWPR1500-LDO Not Recommended for New Designs
  • This page contains information on a product that is not recommended for new designs.

Roll over image to zoom in

This product is not recommended for new designs, it has been replaced by WPR1500-HV.

The 15-watt wireless charging receiver reference platform with LDO architecture uses our MWPR1516 receiver controller IC to manage and perform all control functions necessary to implement a wireless charging receiver solution.

The reference platform complies with the Wireless Power Consortium's (WPC) Medium Power Working Group (MPWG) specification and can be charged by any Qi®-certified transmitter devices.

Medium Power Wireless Charger Receiver 15 W WPC Compliant Solution - Fact Sheet

Block Diagram

Wireless Charging Receiver

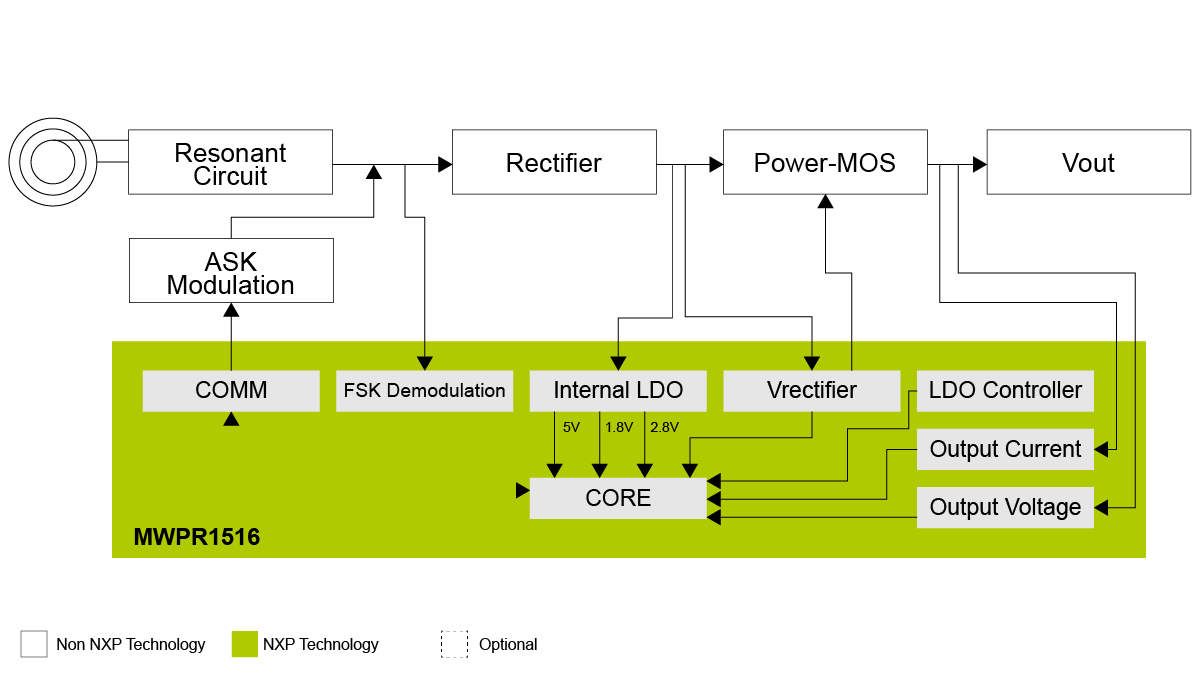

WPR1500-LDO Block Diagram
Get diagram PDF

Supported Devices

Power Management

Wireless Power

  • MWCT1x1x: 15 Watt Wireless Charging Transmitter ICs
  • MWPR1516: 15 Watt Wireless Charging Receiver ICs

Features

  • Reference solution with NXP® embedded wireless charger software libraries provides customer design freedom, product differentiation, and access to essential NXP IPs
  • Provides a user-friendly interface with FreeMASTER
  • Provides a highly integrated and flexible platform to help customers shorten development time and reduce time to market
  • Pre-validated according to WPC compliance testing procedure
  • Interfaces
    • LDO controller feature with external MOSFET provides lowest cost high current delivery capability
    • Specially designed FSK and CNC models ease the MPWG bi-directional communication development
    • 12-bit ADC and PGA provide the easiest solution for small system level power loss detection to achieve FOD
    • USB/adaptor switcher to set wired charging as higher priority to save power
    • I2C and UART reserve the capability for receiver and main application processor communication for either security or content delivery

Buy Options

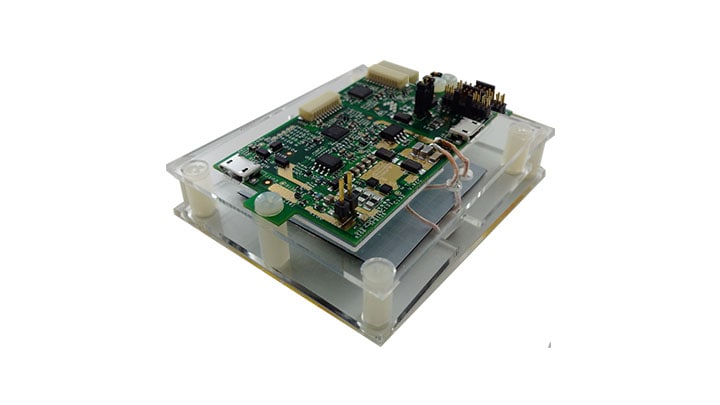

WPR1500-LDO-Image

Click to expand

  • WPR1500-LDO
    Active

  • 15 Watt Wireless Charging Receiver Reference Platform with LDO Architecture.

    Order from distributors
