3-Phase Reference Design for Fuji M653 IGBTs Featuring GD3100

RDGD3100F3PH5EVB

Roll over image to zoom in

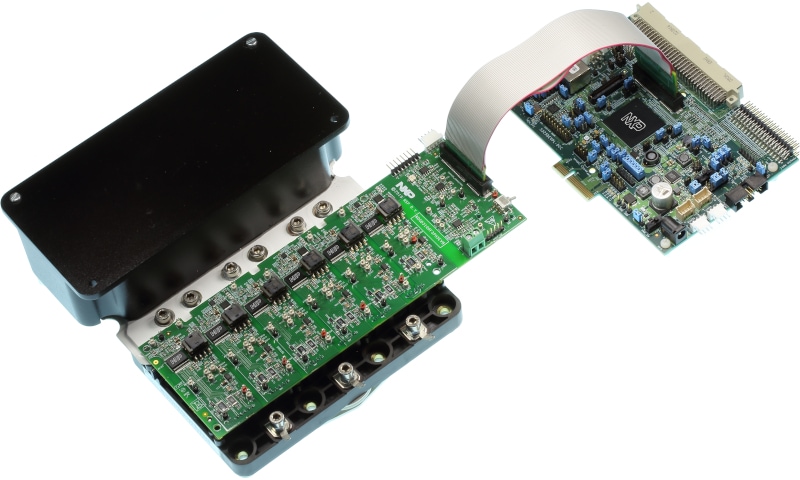

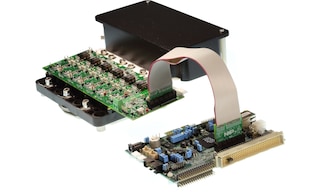

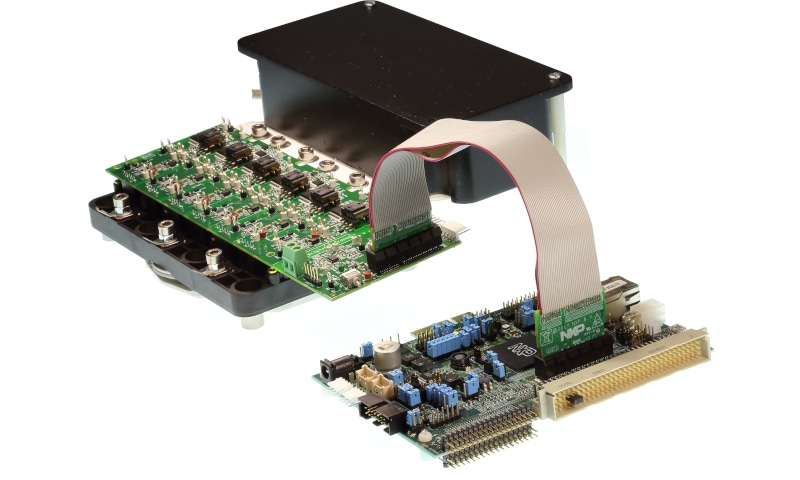

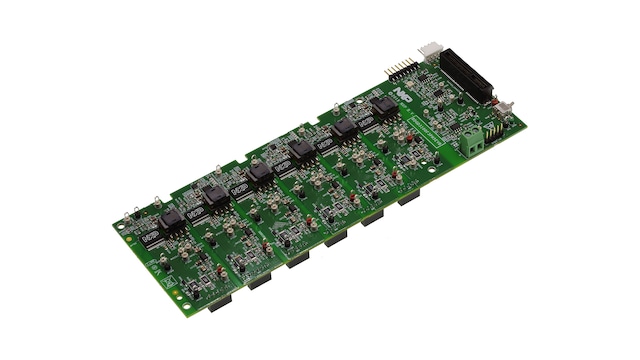

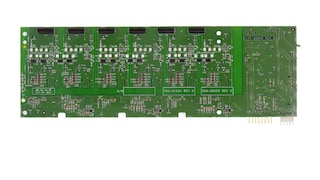

The RDGD3100F3PH5EVB is a fully functional three-phase power gate drive reference design populated with six GD3100 gate drivers with fault management and supporting control circuitry.

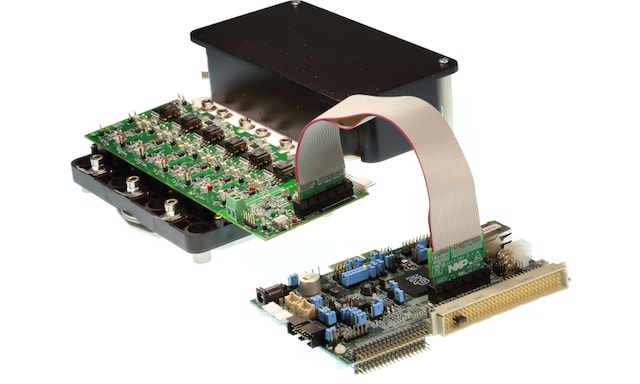

This board supports SPI daisy chain for programming and communication with three high-side gate drivers and three low-side gate drivers independently. Included is S32SDEV-CON18 PCIe cable for connecting to MCU controller board MPC5777C-DEVB (not included). This board is designed to be connected to a Fuji Electric M653 Series IGBT module footprint (not included).

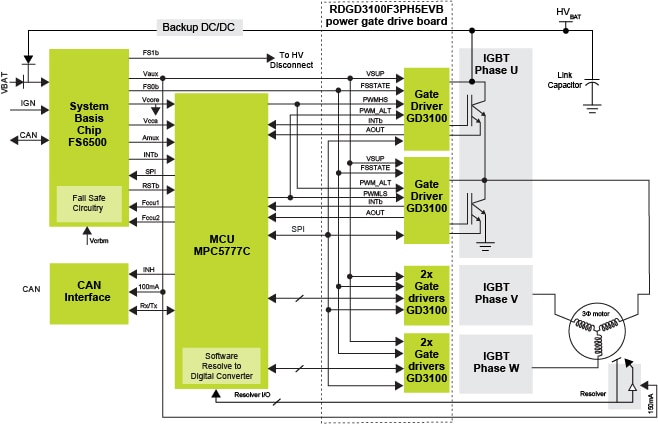

Block Diagram

RDGD3100F3PH5EVB

RDGD3100F3PH5EVB Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC5777C: Ultra-Reliable MPC5777C MCU for Automotive and Industrial Engine Management
  • MPC5775B-E: MPC5775B and MPC5775E Microcontrollers for Battery Management Systems (BMS) and Inverter Applications

Power Management

System Basis Chips

  • FS6500: Grade 1 and Grade 0 Safety Power System Basis Chip with CAN Flexible Data Transceiver

Powertrain and Engine Control

  • GD3100: Advanced High Voltage Isolated Gate Driver for IGBT and SiC MOSFETs

Interfaces

3.3 V / 5 V IO CAN Transceivers

  • TJA1042: High-Speed CAN Transceiver with Standby Mode

Features

Key Features

  • SPI interface for safety monitoring, programmability and flexibility
  • Low propagation delay and minimal PWM distortion
  • Integrated galvanic signal isolation (up to 8 kV)
  • Integrated gate drive power stage capable of 15 A peak source and sink
  • Fully programmable active Miller clamp
  • Compatible with negative gate supply
  • Compatible with current sense and temperature sense IGBTs
  • Integrated soft shutdown, two-level turn-off, active clamp and segmented drive for wave shaping
  • CMTI > 100 V/ns
  • Compatible with 200 V to 1700 V IGBT/SiC, power range > 125 kW
  • Operating temperature range −40 °C to 125 °C
  • External creepage distance (CPG): > 7.8 mm
  • Operating frequency > 40 kHz
  • 5.0 V and 3.3 V tolerant MCU interface available

SPI Interface

  • Safety monitoring and programming control features
  • PCIe connector providing external I/O connections (including GDIC control and SPI, motor current and application feedback, and power supply control). PCIe cable harness included
  • Additional SPI test port for GDIC debug
  • Connector for resolver/motor position sense
  • Connector for motor phase current sense

MC33GD3100

  • Advanced single channel gate driver for IGBT and SiC MOSFETs. Integrated galvanic isolation and low on-resistance drive transistors provide high charging and discharging current, low dynamic saturation voltage and rail-to-rail gate voltage control

ASIL D ISO 26262 ompliant

  • GD3100 is compliant with ISO 26262 ASIL C/D functional safety requirements

AEC-Q100

  • Automotive grade qualified

Not Included (order separately):

  • MPC5777C-DEVB MCU: Based on the 32-bit Power Architecture® MPC5777C ultra-reliable MCU together with the FS65 System Basis Chip and the TJA1100 and TJA1145T/FD Ethernet and CAN FD PHY transceivers, the MPC5777C-DEVB facilitates hardware and software development, offering system performance, safety, and security
  • DC link capacitor
  • IGBT module
  • Water cooling jacket

Buy Options

RDGD3100F3PH5EVB-Image

Click to expand

  • RDGD3100F3PH5EVB
    Active

  • 3-Phase Reference Design for Fuji M653 IGBTs featuring GD3100.

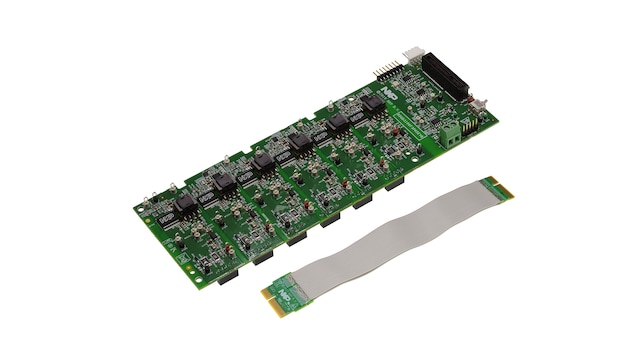

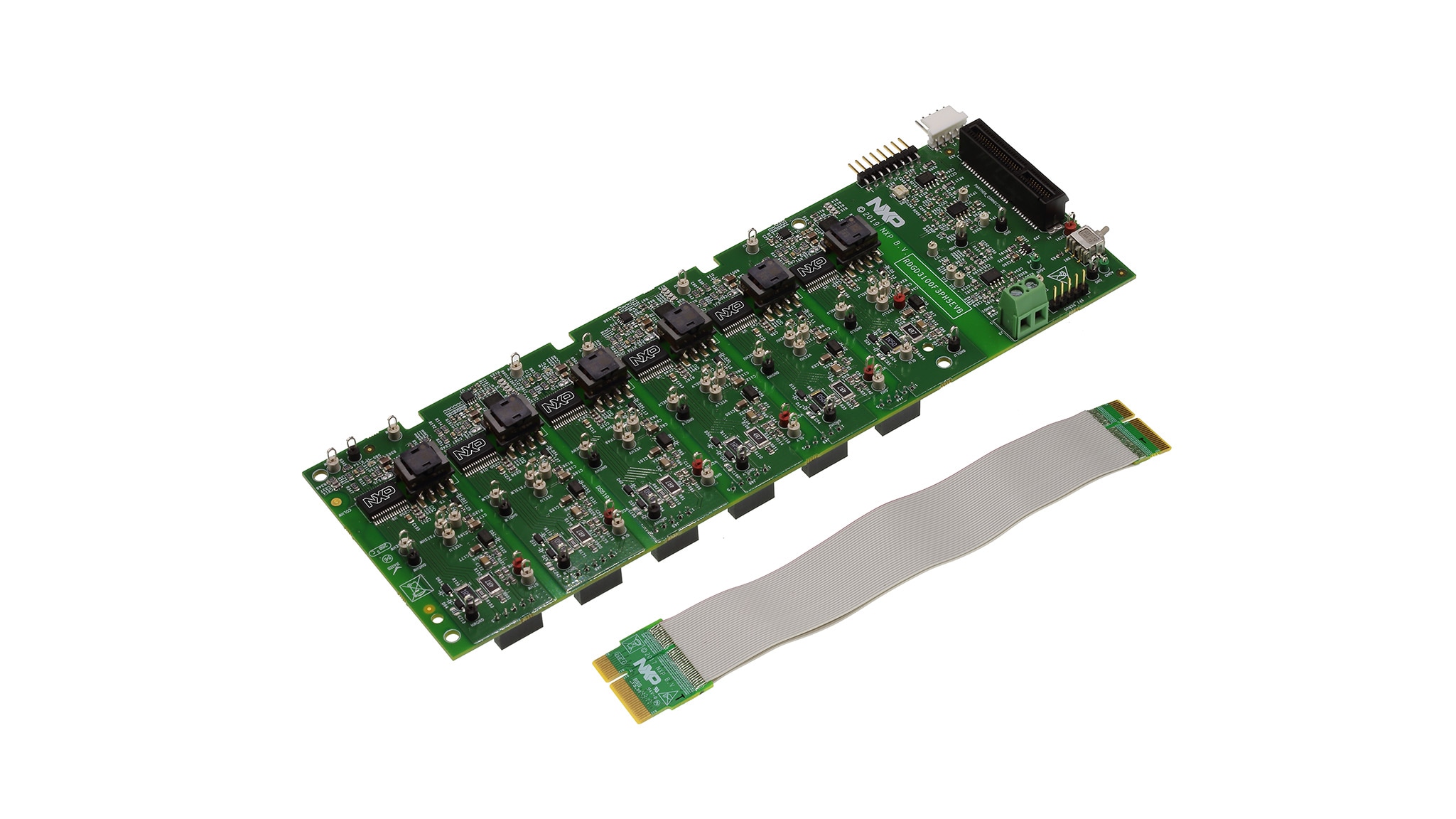

  • Kit contains:

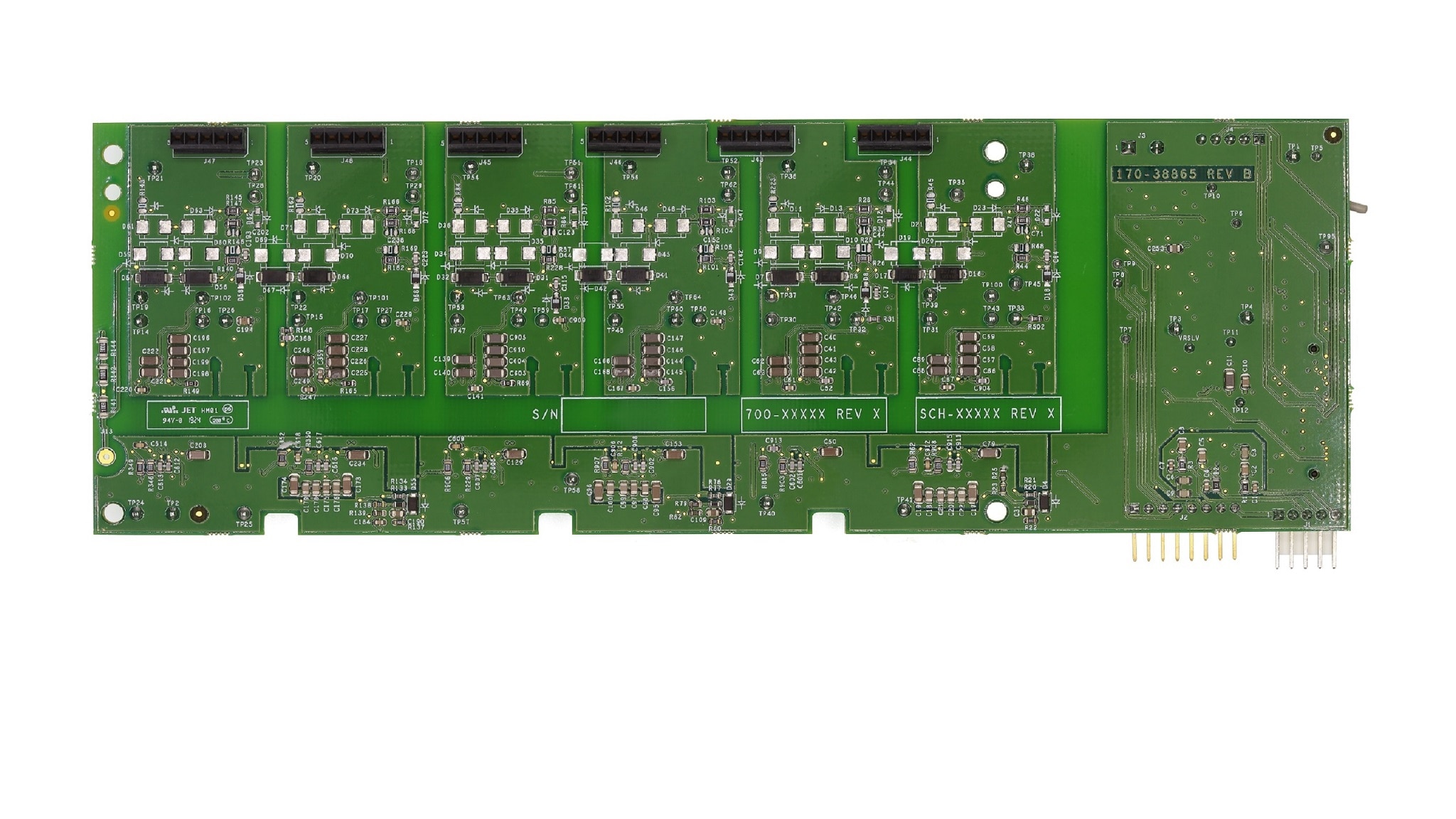

    • RDGD3100F3PH5EVB three-phase power gate drive inverter board

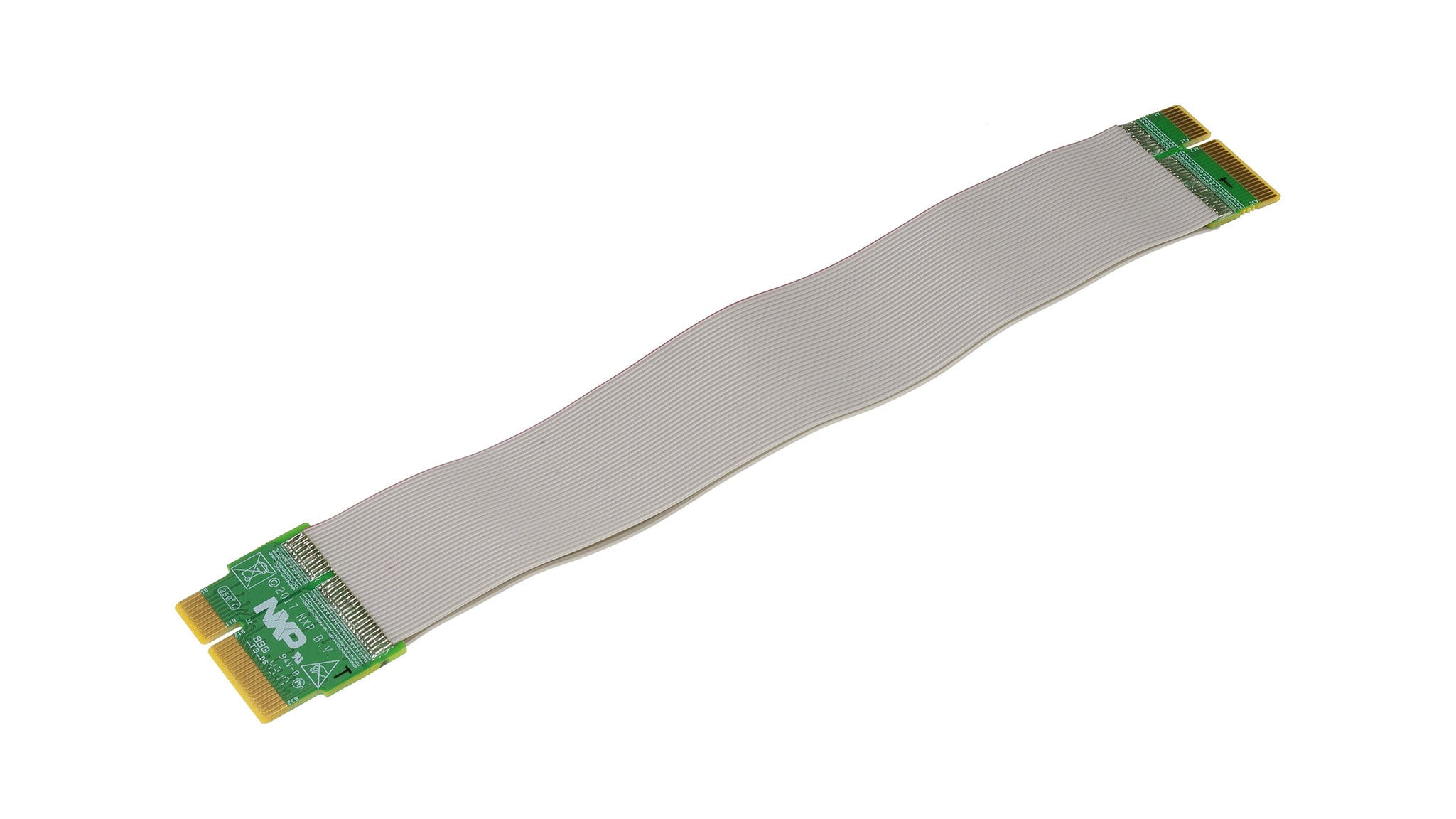

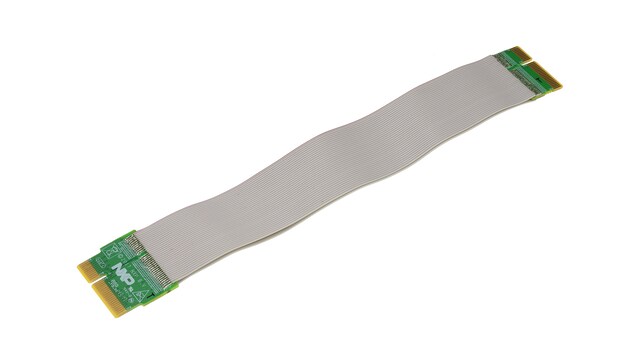

    • Connection cable (S32SDEV-CON18)
  • $747.13 USD
  • For a quantity of 1
    • Availability: Pending Stock
