3-Phase BLDC/PMSM Low-Voltage Motor Control Drive

3PHASELV-KIT
Active
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

Archived content is no longer updated and is made available for historical reference only.

"This tool is no longer in production, we recommend MTRCKTSBN5606B as a replacement."

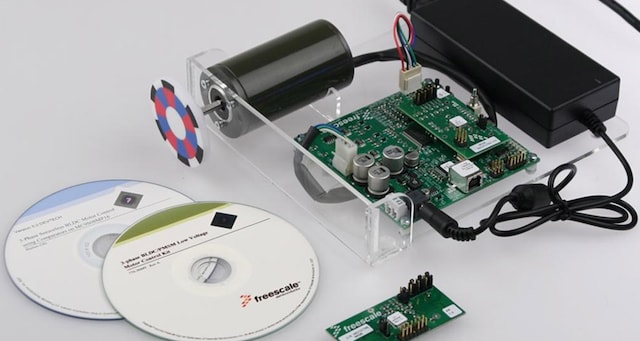

The NXP® 3-Phase Brushless DC (BLDC) / Permanent Magnet Synchronous Motor (PMSM) Low-voltage motor control drive creates a single unit for developing BLDC/PMSM motor control applications.

  • With one of the available daughter boards accommodating a selected MCU, this tool provides a ready-made software-development platform for 12-24 Vdc, 4A motors
  • Feedback signals are provided that allow a variety of algorithms to control 3-phase PMSM and BLDC motors

Supported Devices

Processors and Microcontrollers

16-Bit 56800E DSC Core

  • 56F800x: MC56F8006 and MCF56F8002 Digital Signal Controllers

8-Bit S08 MCUs

  • S08MP: 8-bit General Purpose MP MCUs

Pre-Drivers

  • MC33937: 3-Phase Field Effect Transistor Pre-Driver

Features

Connectivity

  • CAN physical layer
  • USB interface
  • Motor power and two signal connectors for MCU daughter board connection

Power Management

  • Power supply voltage input 12-24 V DC, extended up to 50 V
  • Output current 4 A
  • 3-phase bridge inverter (6 MOSFETs) + 3-phase MOSFET gate driver MC33937 with overcurrent and undervoltage protection
  • 3-phase and DC-bus-current-sensing shunts
  • DC-bus voltage sensing and 3-phase back-EMF voltage-sensing circuitry

Sensors

  • Encoder/hall sensor sensing circuitry

User Components

  • User LEDs and switches
