Name: EasyEVSE EV Charging Station Development Platform MCU RTOS
Price: 113.85 USD
Availability: BackOrder

Product Details

Features

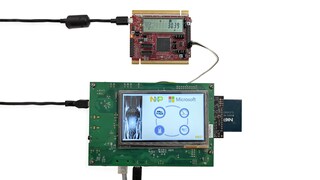

Hardware

Modular and scalable development board options can be ordered from the Products Table to support the required functions

Software

Complimentary example software is downloadable at the link below, targeting:

i.MX RT106x Crossover MCU

Microsoft Azure RTOS (part of the MCUXpresso SDK)
Clarinox Wi-Fi stack (evaluation license)
SDIO card driver for the u-blox MAYA-W1 module with IW416 SoC (dual-band Wi-Fi 4, Bluetooth 5.2)
Host library for the EdgeLock^{^®} SE050 secure element
Libraries for the CLRC663 NFC board

Kinetis M metrology MCU

Software to control the TWR-KM35Z75M metrology board
EVSE application-specific example software for front-end power socket emulation development

EdgeLock SE050 secure element

Software for the OM-SE050ARD-E security board
EdgeLock SE05x Plug & Trust Middleware

Documentation

User guide describes how to get the EasyEVSE up and running using a simplified setup
User manual provides detailed instructions to use the development platform

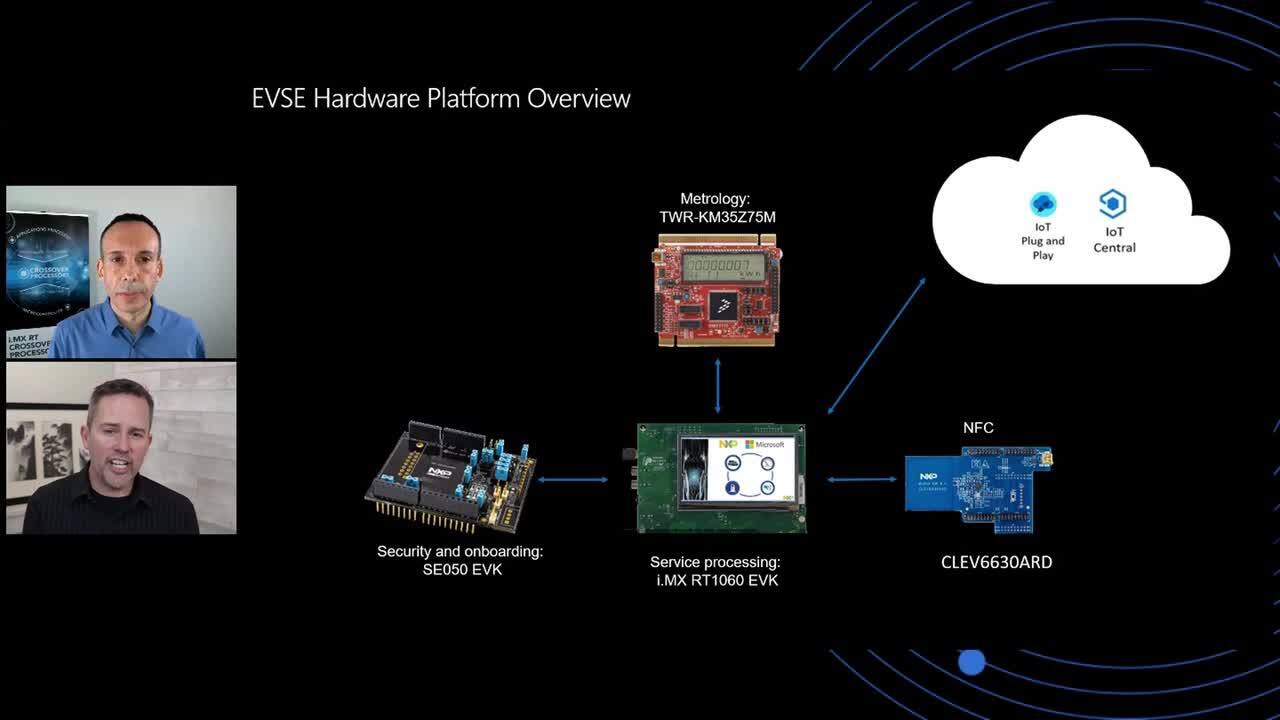

Set-up video (32 minutes) shows step-by-step instructions when you click the Getting Started button above

Availability

Development boards are orderable from the Product Table below
Wi-Fi boards are orderable from the channels of Wi-Fi partner u-blox

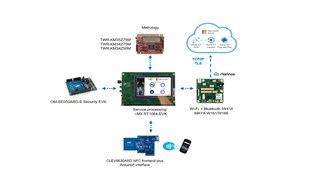

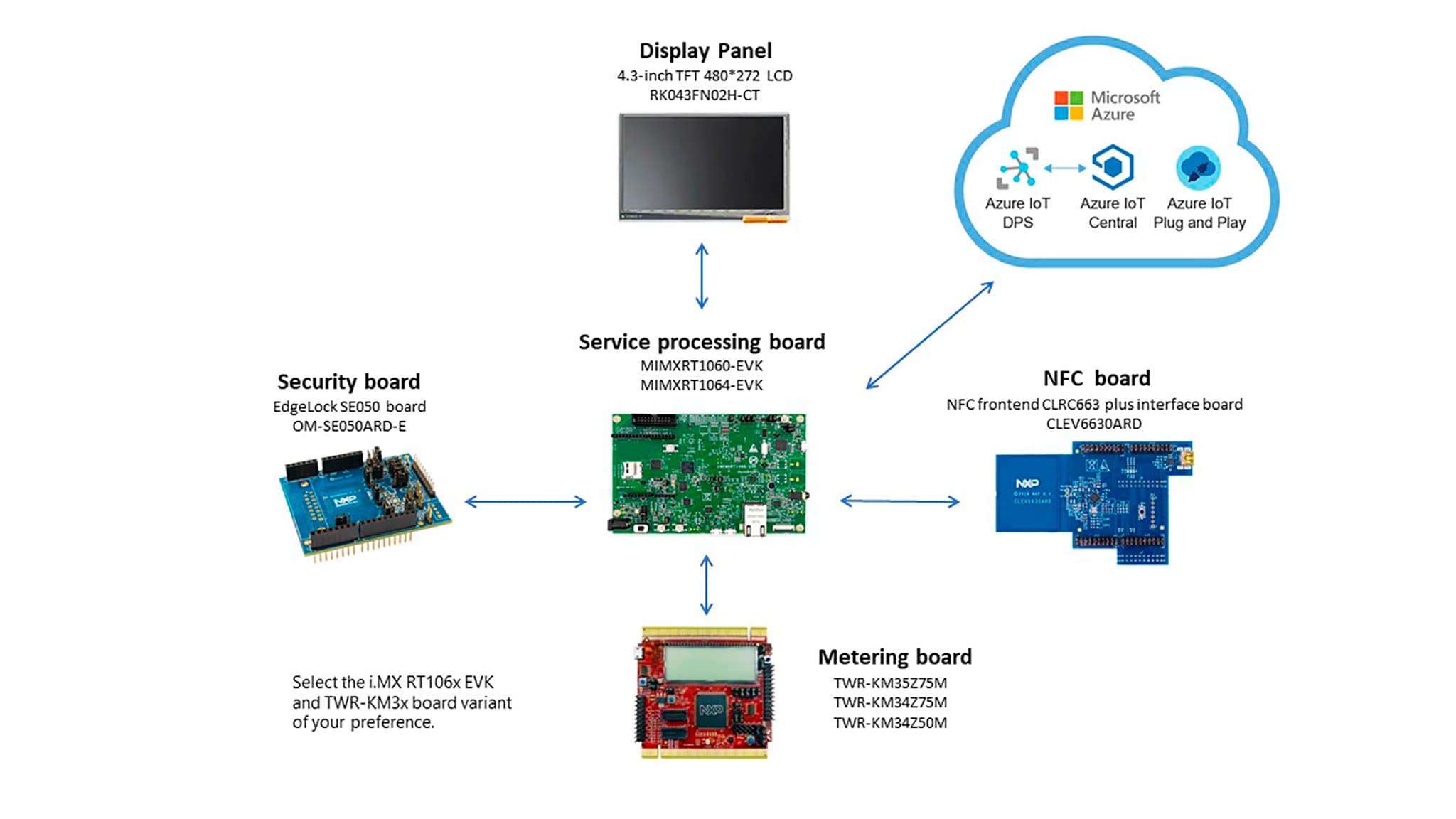

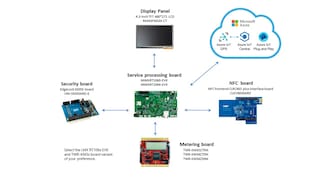

Products Table

	Part Number	Board Description
Service Processing Board (choose one)	MIMXRT1060-EVKB	Development kit for i.MX RT1060 Crossover MCU with Arm^{^®} Cortex^{^®}-M7 core operating up to 600 MHz
Service Processing Board (choose one)	MIMXRT1064-EVK	Development kit for i.MX RT1064 Crossover MCU with Arm^{^®} Cortex^{^®}-M7 Core operating up to 600 MHz with 4 MB Flash
Security Board	OM-SE050ARD-E	SE050 Arduino^{^®} compatible development kit
Metering Board (choose one)	TWR-KM35Z75M	Tower System development board for Kinetis KM35 metrology MCUs
	TWR-KM34Z75M	Tower System development board for Kinetis KM14, KM33 and KM34 (75 MHz) metrology MCUs
	TWR-KM34Z50M	Tower System Development Board for Kinetis KM14, KM33 and KM34 (50 MHz) metrology MCUs
NFC Board (optional)	CLEV6630ARD	CLEV6630ARD: NFC frontend CLRC663 plus Arduino^{^®} interface board
Display Panel	RK043FN66HS-CTG	4.3" TFT 480*272 pixels LCD Panel with LED backlight and capacitive touch
Wi-Fi Module	EVK-MAYA-W1	u-blox MAYA-W161 or MAYA-W166 modules with NXP IW416 SoC (dual-band Wi-Fi 4, Bluetooth 5.2)

Buy Options

Click to expand

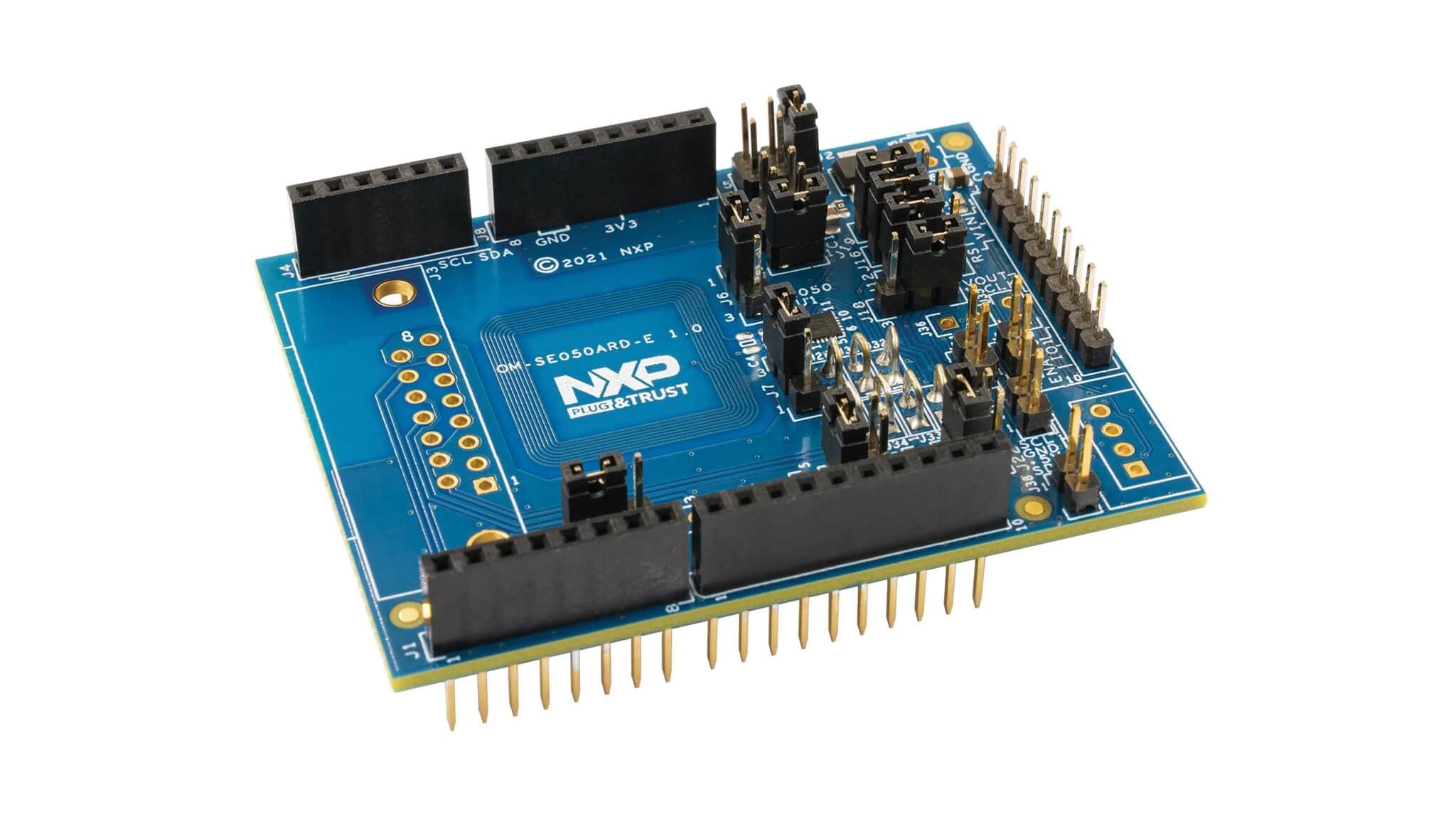

OM-SE050ARD-E
Active

EdgeLock SE050E Arduino compatible development kit.

Kit Contains

EdgeLock^® SE050 Development Kit

EdgeLock SE050 development board

Expansion Board: Yes
Peripherals: I²C
Connector Type: Arduino-Compatible

$60.00 USD

In Stock :20

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

CLEV6630ARD
Active

CLEV6630ARD: NFC frontend CLRC663 plus Arduino® interface board.

$67.62 USD

In Stock :20

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

RK043FN66HS-CTG
Active

4.3" LCD Panel.

Expansion Board: Yes

$44.80 USD

In Stock :11

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

MIMXRT1064-EVK
Active

i.MX RT1064 Evaluation Kit.

$148.35 USD

In Stock :4

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

TWR-KM35Z75M
Active

KM Series Tower System Module for KM35 MCUs.

$161.00 USD

In Stock :1

Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

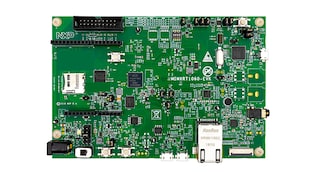

MIMXRT1060-EVKB
Active

i.MX RT1060 Evaluation Kit.

Kit Contains

MIMXRT1060-EVKB board

$113.85 USD

Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

TWR-KM34Z75M
Active

Tower System Development Board for Kinetis KM14, KM33 and KM34 (50 MHz) MCUs.

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Click to expand

TWR-KM34Z50M
No Longer Manufactured

Tower System Development Board for Kinetis KM14, KM33 and KM34 (50 MHz) MCUs.

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Documentation

Quick reference to our documentation types

6 documents

Compact List

NXP EasyEVSE EV Charging Station Development Platform User Guide[CCEVCPGSUG-V4]

PDFJul 10, 2024Rev 4.0
Build EV Charging Solutions Fasts[GS-EV-CHARGING-STATION]Getting Started

HTMLMar 24, 2022
NXP EasyEVSE EV Charging Station Development Platform User Guide[CCEVCPGSUG-V5]Getting Started

PDFSep 19, 2024Rev 5.0

NXP EasyEVSE EV Charging Station Development Platform User Manual[UM11750-V4]

HTML | PDFOct 18, 2024Rev 4.0
NXP EasyEVSE EV Charging Station Development Platform[UM11750-V3]

PDFJun 10, 2024Rev 3.0

EV Supply Equipment Outlook[NXP-EVSE-WH]

PDFJan 11, 2023Rev 1

Design Resources

Related Hardware

Quick reference to our board types.

1 hardware offering

Evaluation and Development Boards
MAYA-W1 EVK

Evaluation kit for MAYA-W161 - Two external antennas for dual-band Wi-Fi 4 and Bluetooth 5.2 MAYA-W166 - Sinlge embedded antenna for dual-band Wi-Fi 4 and Bluetooth 5.2

By u-blox AG Gold Partner

Software

Quick reference to our software types.

1 software file

Software Development Resources
EasyEVSE Software

ZIPRev 3.0Oct 18, 2023 10:14:0083306 KBEasyEVSE-SW-3-0

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Note: For better experience, software downloads are recommended on desktop.

Training

3 trainings

On-Demand
NXP EasyEVSE EV Charging Station Software and Support

43 minEnglish Level: Beginner

Account Required

On-Demand
EV Charging Ahead: Enabling Accurate Energy Measurement, Secure Remote Management and Intuitively Safe Operation

30 minEnglish Level: Beginner

Account Required

On-Demand
The Future of EV Charging Station Development

Discover our secure device-to-cloud communication, energy billing accuracy, NFC authentication, and seamless connectivity Charging Station Development Platform.

1 hrEnglish Level: Intermediate

Account Required
