S08LL Demonstration Board

DEMO9S08LL16

Roll over image to zoom in

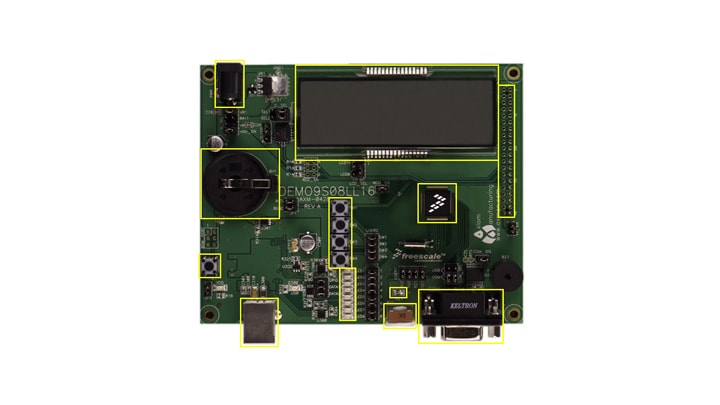

The cost-effective DEMO9S08LL16 demonstration kit contains everything you need to develop and evaluate application code. The integrated USB multilink allows you to communicate with the board and target device with only a USB cable.

Product Details

Supported Devices

Processors and Microcontrollers

8-bit Legacy MCUs

  • RS08LA: 8-bit with LCD Driver LA MCUs
  • RS08LE: 8-bit with LCD Driver LE MCUs

8-Bit S08 MCUs

  • S08LL: 8-bit Segment LCD LL MCUs

Features

Microcontroller

  • MC9S08LL16, 64 LQFP

Connectivity

  • Integrated P&E USB-BDM
  • 40-pin MCU I/O connector
  • 2.0 mm barrel connector
  • BDM_PORT (not installed)
  • USB connector
  • DB9 connector

Power Management

  • On-board +5 V regulator
  • Battery holder for Li-ion battery
  • Power input selection jumpers

User Components

  • Five push switches; four Users, one Reset
  • 10 LED Indicators; eight Users, VDD, USB
  • 5 K ohm POTs w /LP filter
  • Light sensor w/ LP filter and Op Amp
  • User option jumpers to disconnect peripherals
