Multiphase Power Quality Monitor and Electricity Meter
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.
Safety and EMC testing pending; design is pre-production and subject to change; not certified/approved for production use.

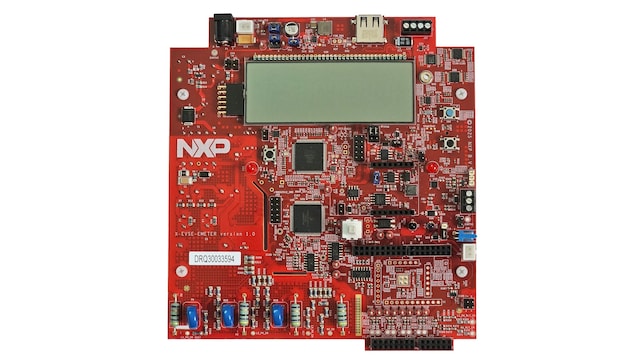

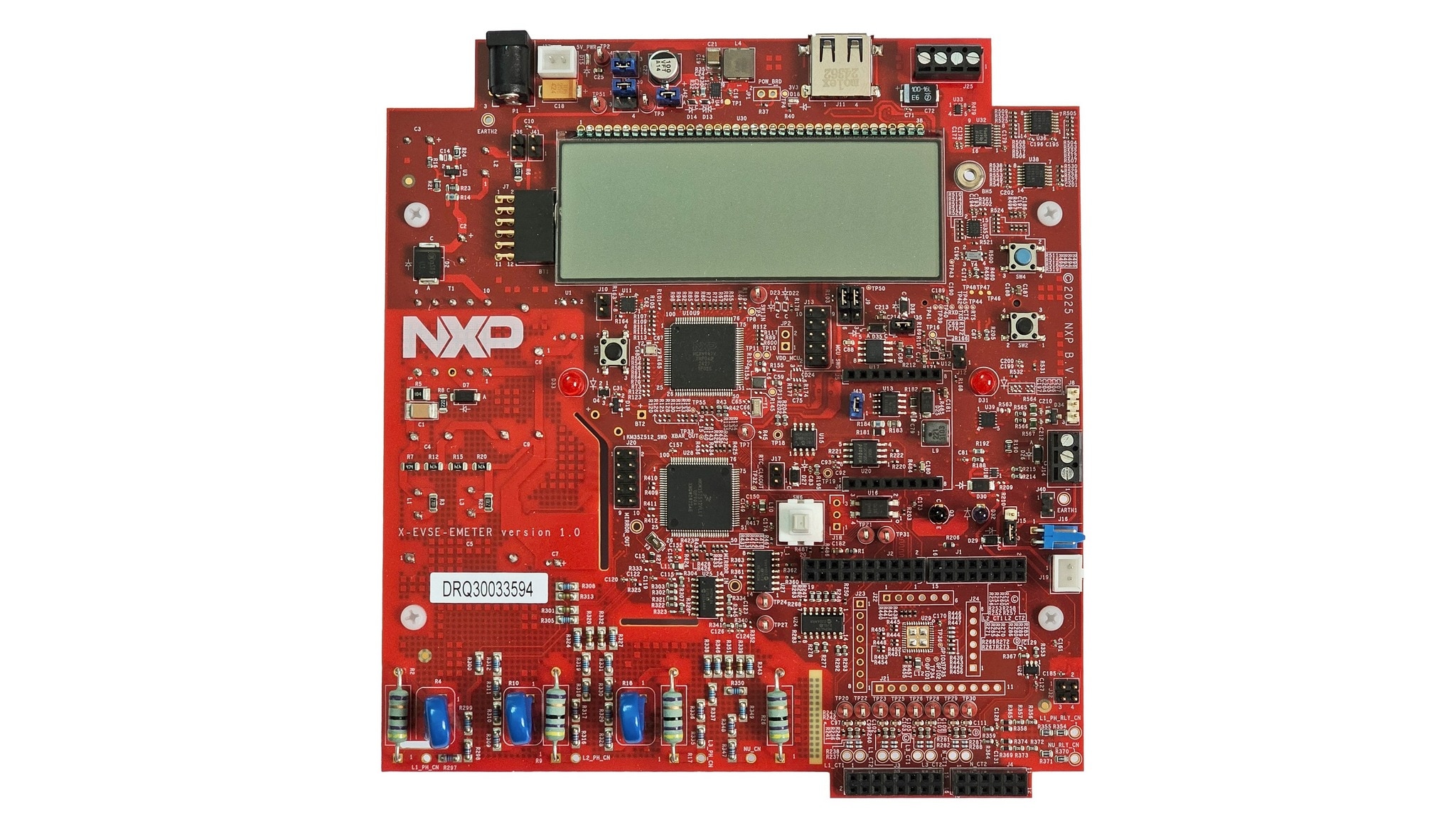

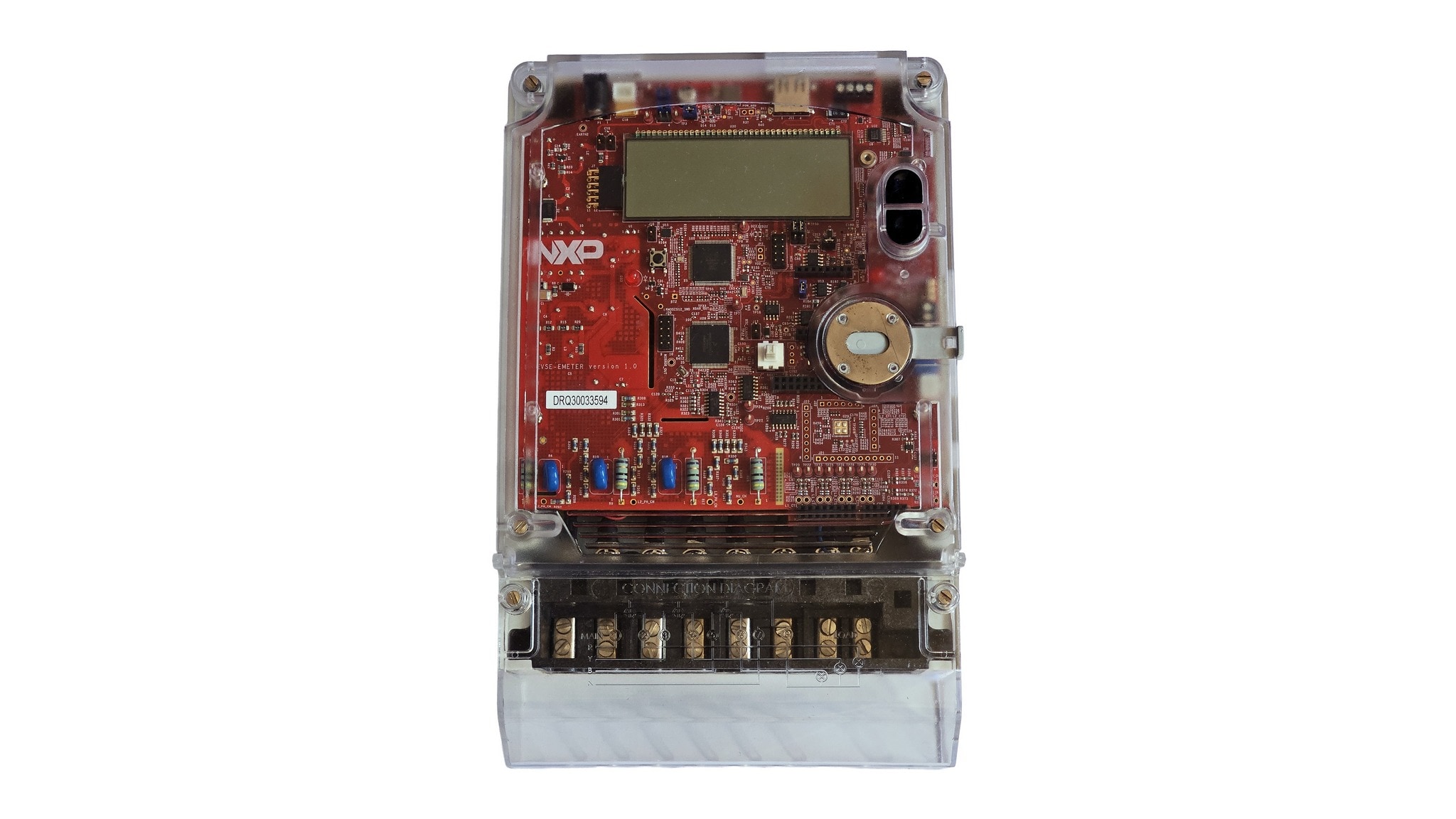

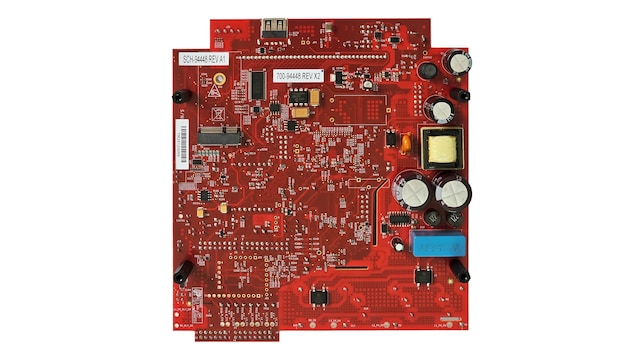

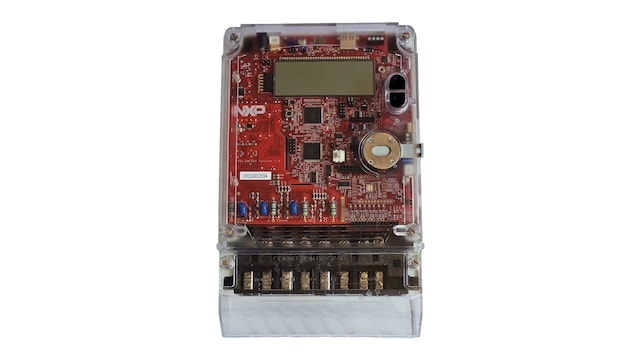

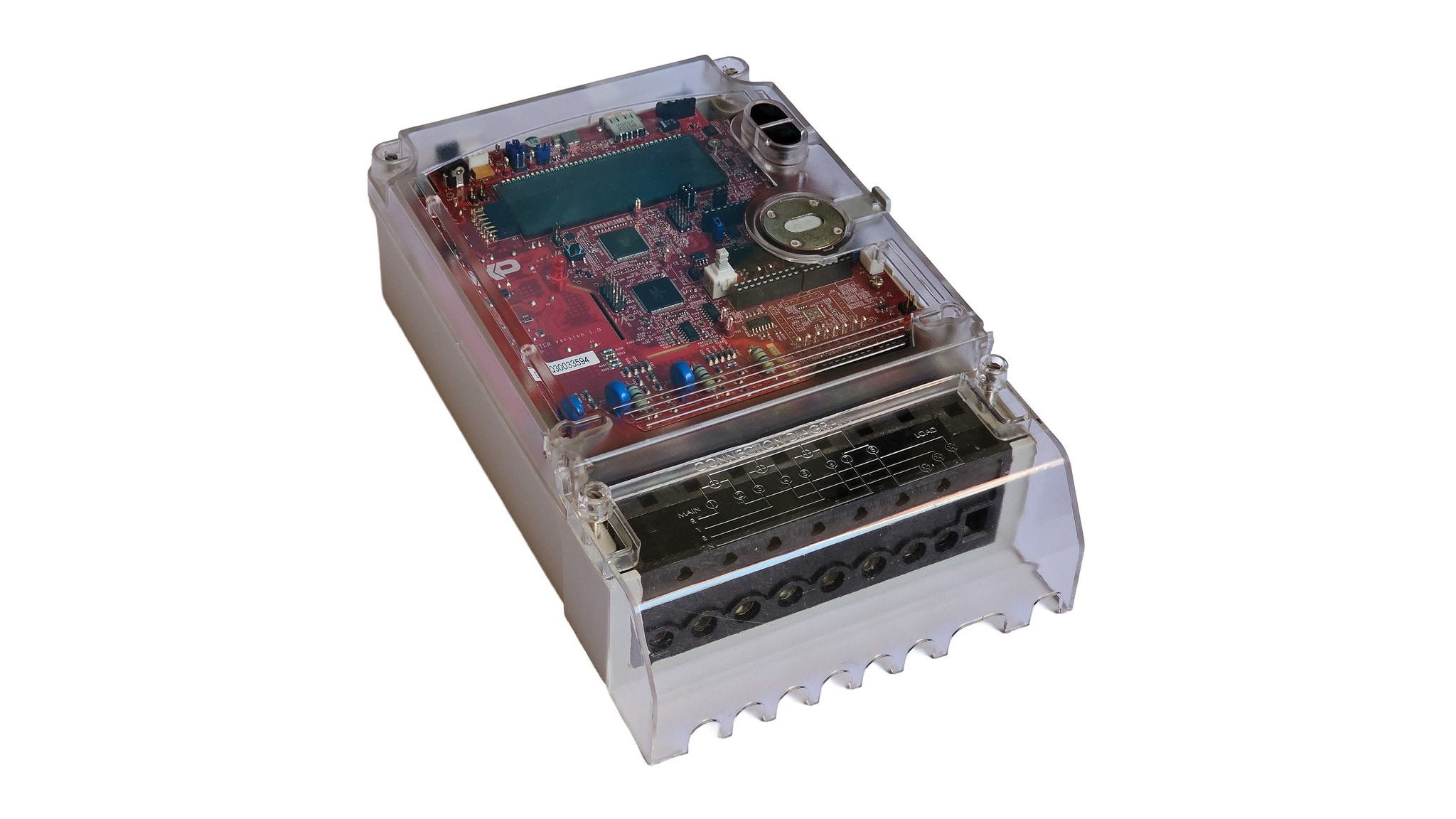

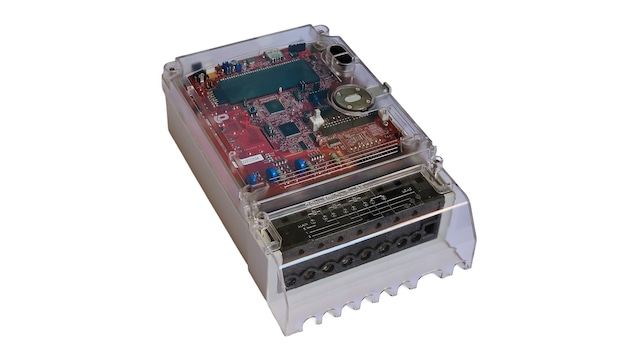

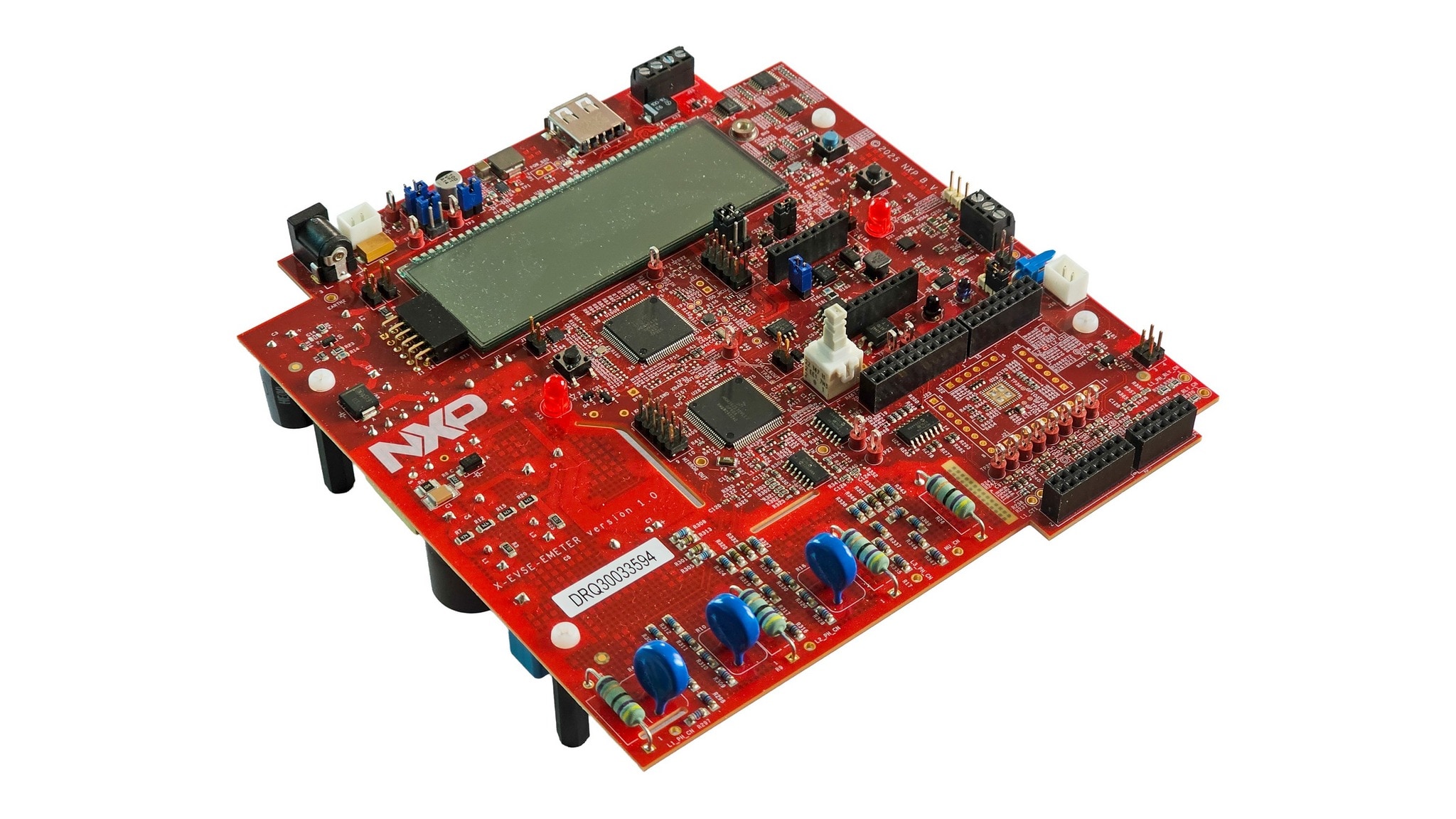

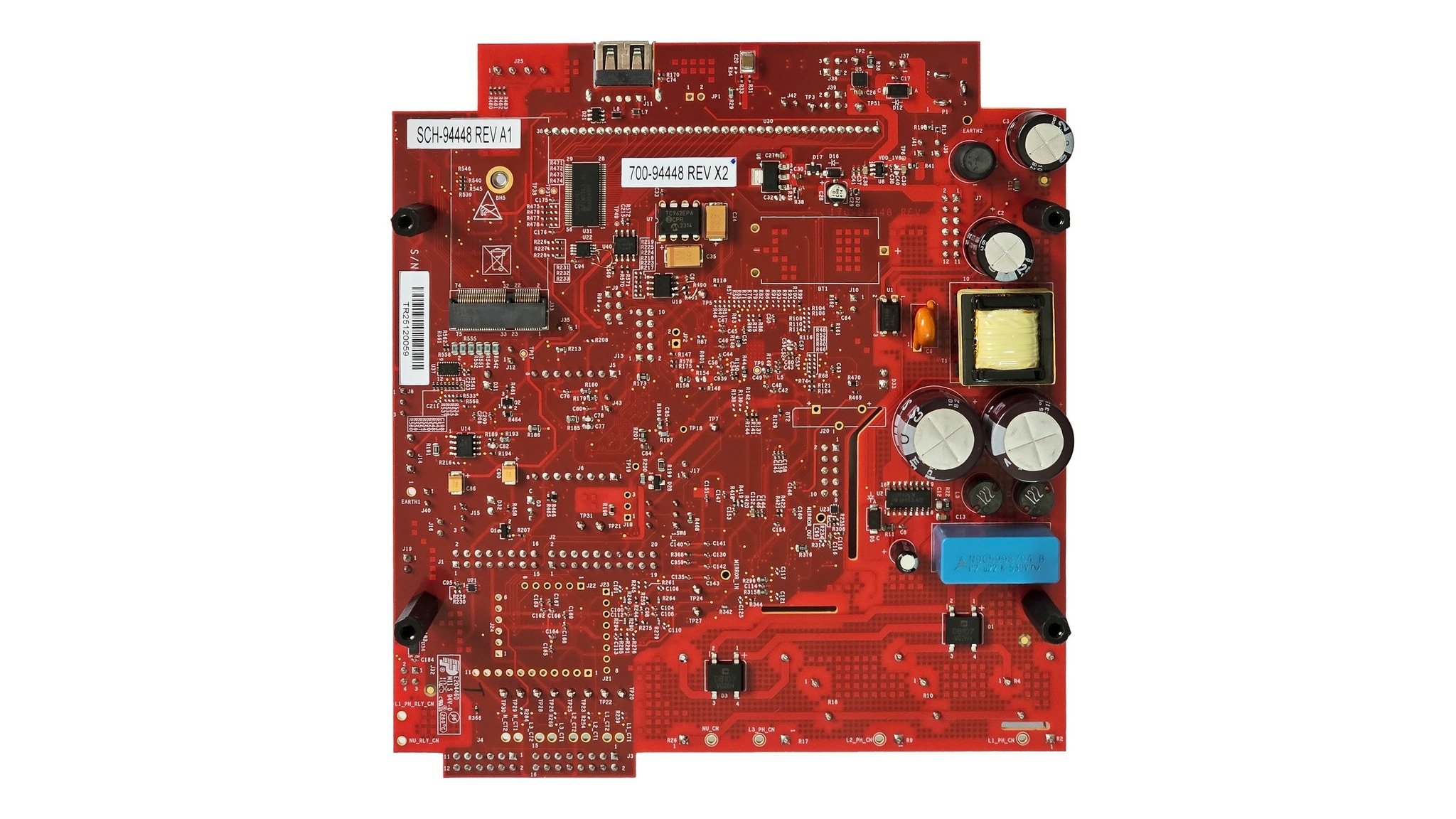

The EVSE-EMETER is designed for EV charging metering operations. It supports 1-, 2- and 3‑phase 230 V AC grid power and accurately measures grid voltage, charging current and energy during the EV charging session.
The board hosts an MCX N947 or an MCX N236 for the SAE J1772 PWM and FuSa operations, a TJA1021T Local Interconnect Network (LIN) transceiver for SAE J3068, a MKM35Z512 Metrology microcontroller unit (MCU) with integrated Analog Frond-Ends (AFEs) or an optional NXP external AFE.
The EVSE-EMETER supports the control pilot and proximity pilot, relay drive, Ethernet Controller Area Network (CAN) and is compatible with NXP development boards for i.MX 8, i.MX 9, i.MX RT1060, i.MX RT1064 or S32G-VNP-RDB3. Combine the EVSE-EMETER with the SIGBRD-HPGP to enable ISO 15118 communication between the EV and EVSE side.
Product Details
Block Diagram
Supported Devices
Interfaces
Automotive LIN Solutions
- TJA1021: ISO17987 LIN 2.1/SAE J2602 Transceiver
3.3 V / 5 V IO CAN Transceivers
- TJA1044: High-Speed CAN Transceiver with Standby Mode - Mantis Family
LCD Drivers
- PCA85176: 40 X 4 Automotive LCD Driver for Low Multiplex Rates
Processors and Microcontrollers
MCX N Series Microcontrollers
- MCX-N23X: MCX N23x Highly Integrated MCUs with On-Chip Accelerators, Intelligent Peripherals and Advanced Security
- MCX-N94-N54-N53-N52-N24: MCX N94, N54, N53, N52 and N24 with Highly Integrated Low-power Dual Core Arm® Cortex®-M33 MCUs, with on-chip Accelerators and Advanced Security
KM Series Arm Cortex-M0+
- KM3x: 50–75 MHz Precision Metrology MCUs with Segment LCDs Based on Arm® Cortex®-M0+
Sensors
I3C/I²C Digital Temp. Sensors
- P3T1755DP: I3C/I²C-Bus ±0.5 °C Accurate Digital Temperature Sensor
Features
Embedded Microcontroller
- MCX N947/MCX N236
- 2x or 1x Arm® Cortex®‑M33 with flash and RAM
- PWMs, analog‑to‑digital converters (ADCs) and digital‑to‑analog converters (DACs)
- Controller area network (CAN), Ethernet, universal asynchronous receiver‑transmitter (UART), serial peripheral interface (SPI) and Inter-Integrated Circuit (I²C) interfaces
- Timers, security (secure enclave) and tamper detection
Metrology MCU
- MKM35Z512
- Arm Cortex-M0 up to 75 MHz
- 4 x 24-bit sigma-delta ADC, 16-channel, 16-bit successive approximation register (SAR) ADC and up to 4 programmable‑gain amplifiers (PGAs)
- Tamper detection, random number generator, memory‑mapped cryptographic acceleration unit (MMCAU) and cyclic redundancy check (CRC)
Control Pilot and Proximity Pilot
- J1772 (IEC 61851) PWM, ISO 15118 EVSE and EV support
LIN Interface
- TJA1021T local interconnect network (LIN) transceiver for SAE J3068 to support LIN communication
Safety Checks
- GFCI, relay driver and headers
Host Connectors
- Arduino connector for the i.MX RT crossover MCU (MIMXRT1060/1064-EVK) and S32K3 automotive MCU (S32K3X4EVB-T172) development boards
- Expansion connector (EXP-CN) header for the i.MX 9 applications processor (MCIMX93-EVK) development board
- Multi-Function Port (MFP) for the S32G automotive processor (S32G-VNP-RDB3) development board
Tools and OS Support
- Linux® OS, FreeRTOS™ and MCUXpresso
