FRDM Platform for HB2001, 10 A H-Bridge, Programmable Brushed DC Motor Driver

FRDM-HB2001-EVM
Active

Roll over image to zoom in

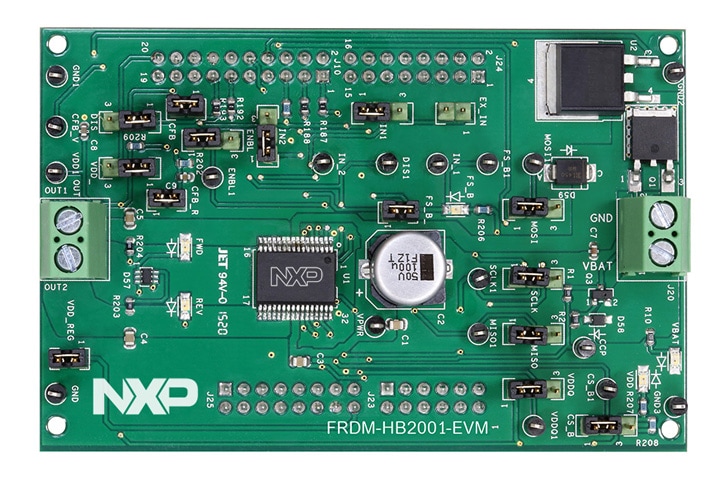

The FRDM-HB2001-EVM Evaluation Kit (EVM) is an easy-to-use circuit board that allows the user to exercise all the functions of the MC33HB2001 HSOP32 10 A H-Bridge device. The EVB parallel input can be easily controlled through lab equipment, any MCU with GPIOs and also FRDM-KL25Z board connected to a PC’s USB port. The board also supports SPI communication to configure, control as well as monitor the status of MC33HB2001.

Supported Devices

BLDC, H-Bridge, Stepper

  • HB2001: SPI Programmable 10 A H-Bridge Brushed DC Motor Driver

Features

Power Management

  • Built-in a voltage regulator to supply logic level circuitry
  • Built-in reverse battery protection

Debug

  • Test points to allow probing of signals

General Specifications

  • Motor control with direction and speed/torque control
  • Transient voltage suppressor to handle system level transients
  • Real-time current monitoring to implement closed loop control

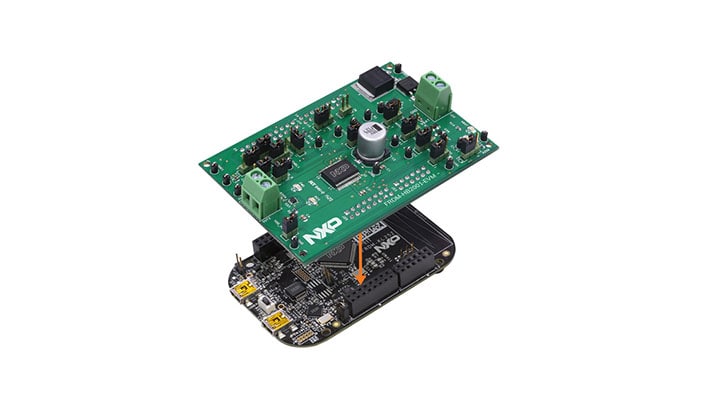

  • Compatible with NXP’s FRDM-KL25Z Platform
  • LEDs to indicate the supply status and direction of motor
  • Low ESR capacitor to reduce ripple in the power supply
  • Transient voltage suppressor to handle system level transients

Buy Options

FRDM-HB2001-EVM-Image

Click to expand

FRDM-HB2001-EVM
Active

Freedom Expansion Board - HB2001, 10 A H-bridge, Programmable Brushed DC Motor Driver.

    $166.75 USD
    In Stock :6

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
