Evaluation Kit MC33882 -Smart Six Output Switch with SPI and Parallel Input Control

KIT33882EKEVB
Active

Roll over image to zoom in

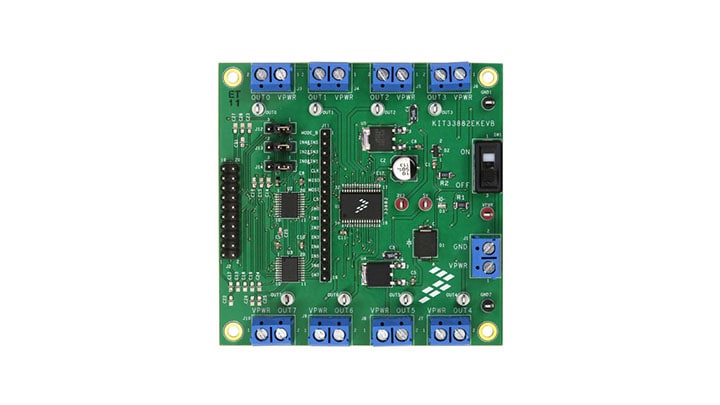

The KIT33882EKEVB evaluation board allows the user to exercise all the functions of the MC33882 smart six-output, low-side switch with SPI and Parallel Input Control.

  • Reduces part count and simplified circuitry
  • Simplifies interfacing to industry standard 5.0 V microprocessors having SPI
  • Simplifies means of getting diagnostic fault status
  • Offers built-in device protection features
  • Provides efficient control of up to six 1.0 A and two low current loads (30 mA) using a single IC
  • 0.3 Ohm RDSon

Product Details

Supported Devices

Power Management

Low Side Switches

  • MC33882: 6 Output Switch, SPI, Parallel Input Control

Features

Connectivity

  • FSD connector
  • NXP® SPI Generator (SPIGen) provides the user interface to the MC33882 SPI port
    • Send commands to the IC
    • Receive status information from the IC
  • Output terminals for loads

Test Terminals

  • Test points for inputs, outputs, and SPI signals

Buy Options

KIT33882EKEVB-Image

Click to expand

  • KIT33882EKEVB
    Active

  • Evaluation Kit MC33882 -Smart Six Output Switch (0.3 Ohm RDSon) with SPI and Parallel Input Control.

    • KIT33882EKEVB Hardware
    • Quick Reference Guide
  • $171.12 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
