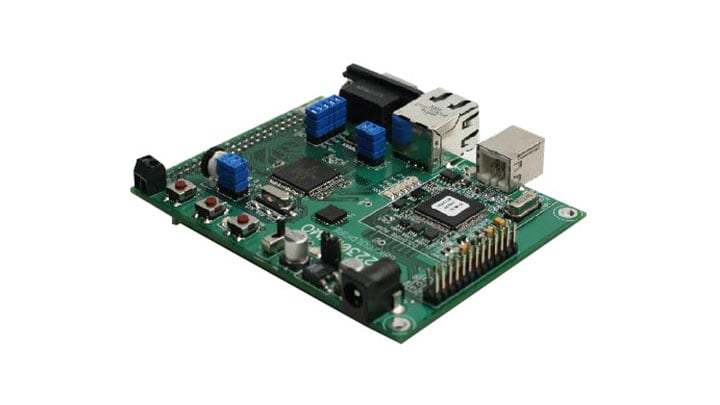

MCF52233 Demonstration Board

M52233DEMO Active

Roll over image to zoom in

The M52233DEMO development system for the NXP® MCF52233 ColdFire® MCU provides a fully functional, low-cost vehicle for high-performance embedded design of the MCF5223x family of ColdFire MCUs.

This low-cost development system offers an array of complementary software, including a fully licensed special edition of the CodeWarrior® Development Studio for development of applications up to 128 KB code size, as well as a host of low cost and professional tools from leading third-party tool vendors, including a complementary ColdFire TCP/IP stack by InterNiche.

See the MCF5223X product page for more information on how to evaluate each MCU using the M52233DEMO.

Product Details

Supported Devices

Processors and Microcontrollers

ColdFire® V2 MCUs

  • MCF5223X: Integrated ColdFire® V2 Ethernet Microcontrollers

Features

Microcontroller

    MCF52233 CPU

  • 60 MHz internal bus
  • 256 kB flash
  • 32 kB RAM
  • 80 LQFP package

Connectivity

  • 8-ch. x 12-bit ADC
  • QSPI, IIC, and CAN Serial ports
  • Fast Ethernet Controller (FEC) and Ethernet PHY (ePHY)
  • (3) UART serial ports with DMA capability
  • BDM / JTAG ports

Sensors

  • 3-axis accelerometer

Components

  • DMA controller with timers
  • Programmable Interrupt timer
  • (4) GPT timers
  • Four User LEDs with enable
  • Two User push switches
  • 5K ohm POT with enable

Software

  • Evaluation software from leading third-party tool vendors
  • Inter-Niche TCP/IP stack

Buy Options

M52233DEMO-Image

Click to expand

  • M52233DEMO
    Active

  • MCF52233 LOW COST EVALUATION BOARD.

    • M52233DEMO Single Board Computer
    • M52233DEMO User's Manual
    • One RS232 communication cable
    • One BDM (Background Debug Mode) "wiggler" cable
    • MCF52233UM ColdFire Integrated
    • Microprocessor User Manual*ColdFire Programmers Reference Manual
    • A selection of third-party developer tools and literature
    • ColdFire TCP/IP stack by InterNiche
  • $113.85 USD
  • For a quantity of 1
