NTAG-X-DNA-EVAL Schematics
Compact List

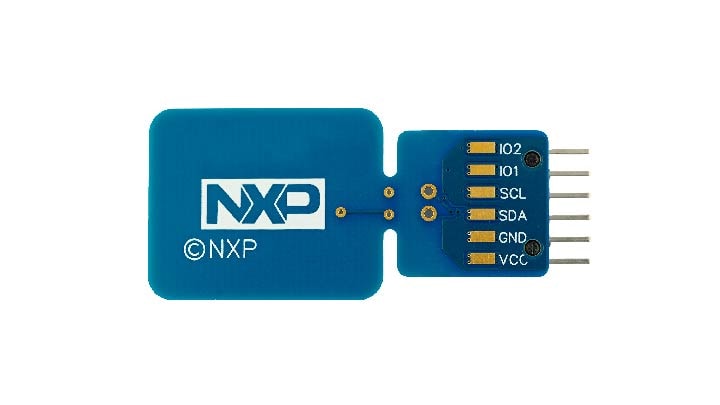

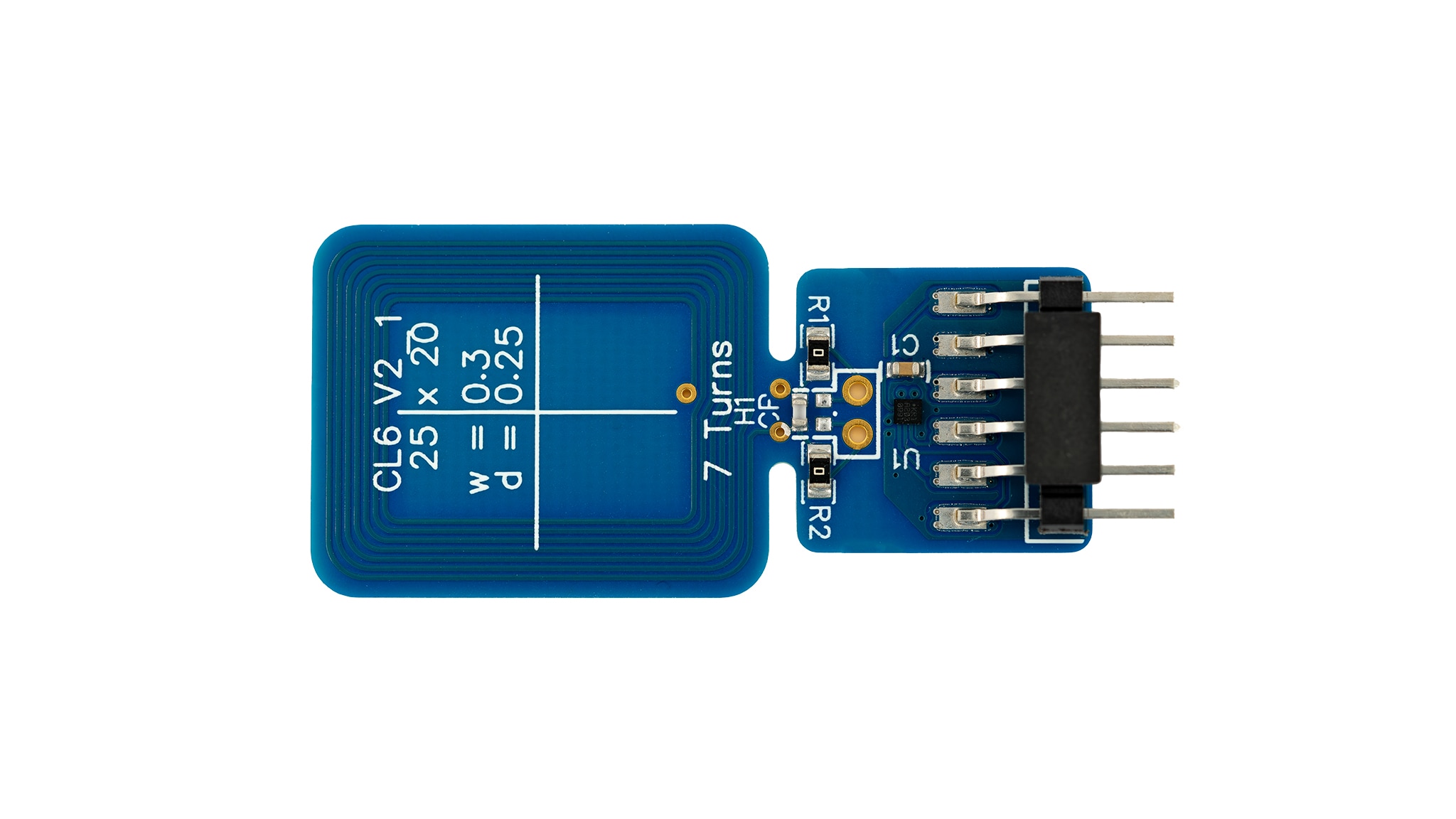

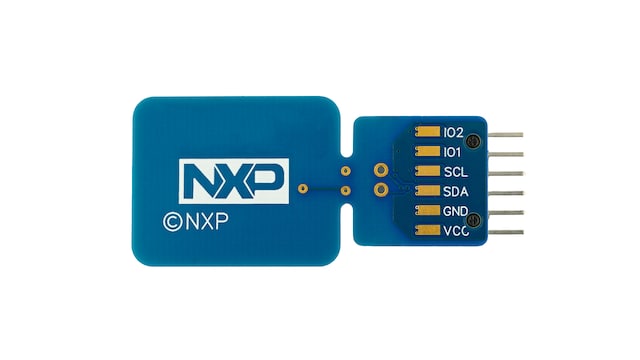

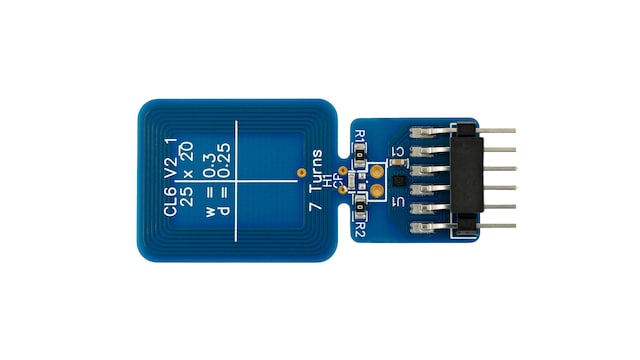

NTAG® X DNA Development Kit
The NTAG X DNA EVAL is a flexible and easy-to-use development kit designed for our distributors and partners. It is compatible with various platforms like Arduino, Raspberry Pi and any MCUs via a direct I²C connection. The development kit enables seamless evaluation of the NTAG X DNA secure connected tag features while performing various demonstrations and developing and testing secure authentication applications.
Product Details
Features
Advanced Security
- Common Criteria Evaluation Assurance Level (EAL) 6+ certified
- Secure companion chip to standard MCU or MPU
- EdgeLock 2GO support for certificate generation and certificate delivery
NFC Interface
- ISO/IEC 14443-4 (fully NFC Forum Type 4 tag compliant)
- 7-byte UID or 10-byte UID
- Silent mode
Host Interface
- I²C Target
- 2 x GPIOs
- Power downstream up to 20 mW
- Support lower power classes: 1.1 V and 1.8 V
Data Rate
- Up to 848 kbit/s for NFC/1 MHz for I²C
Cryptographic Algorithms
- Asymmetric, symmetric and mutual authentication key management and key provisioning via PKI Support for multiple crypto primitives
- RNG (NIST SP800-90B)
- SHA-256/384, HMAC and HKDF (RFC5869)
- AES-128/256 (ECB, CBC, CMAC, CCM and GCM)
- ECDSA and ECDH over NIST P-256 and Brainpool P256r1
Memory
- Up to 16 kB
- ISO 7816 file-based system
- Nonreversible monotonic counter
Temperature
- -40 °C to +105 °C
Package
- Industrial grade HVQFN20
- Small form factor: WLCSP16, FFC (wafer delivery), FFC package will not have I²C interface
Buy Options
Documentation
Quick reference to our documentation types
3 documents
Application Note (2)
-
NTAG X DNA - Dual Interface[AN14513]
-
NTAG X DNA - Antenna Design Guide[AN14236]
User Guide (1)
