S12G HVAC Control Reference Design

RDS12GHVAC-1

Roll over image to zoom in

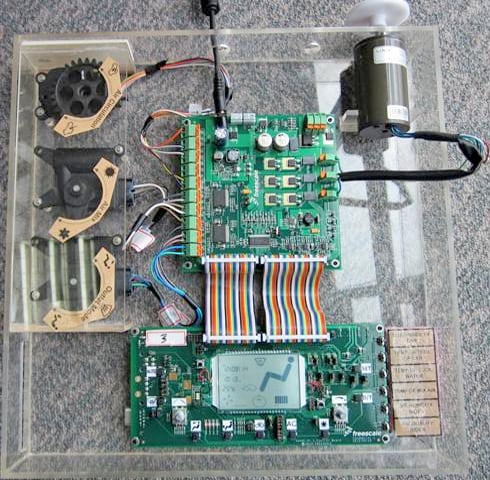

The RDS12GHVAC is a reference design based on the 16-bit S12G ultra-reliable microcontroller, the RDS12GHVAC consists of a central control board with Human-Machine Interface (HMI), a motor control board, flap and blower motors for enabling basic functions of an automotive HVAC using temperature, light, humidity, and air quality sensing interfaces with configurable automatic climate control software algorithm to efficiently control vehicle climate.

Product Details

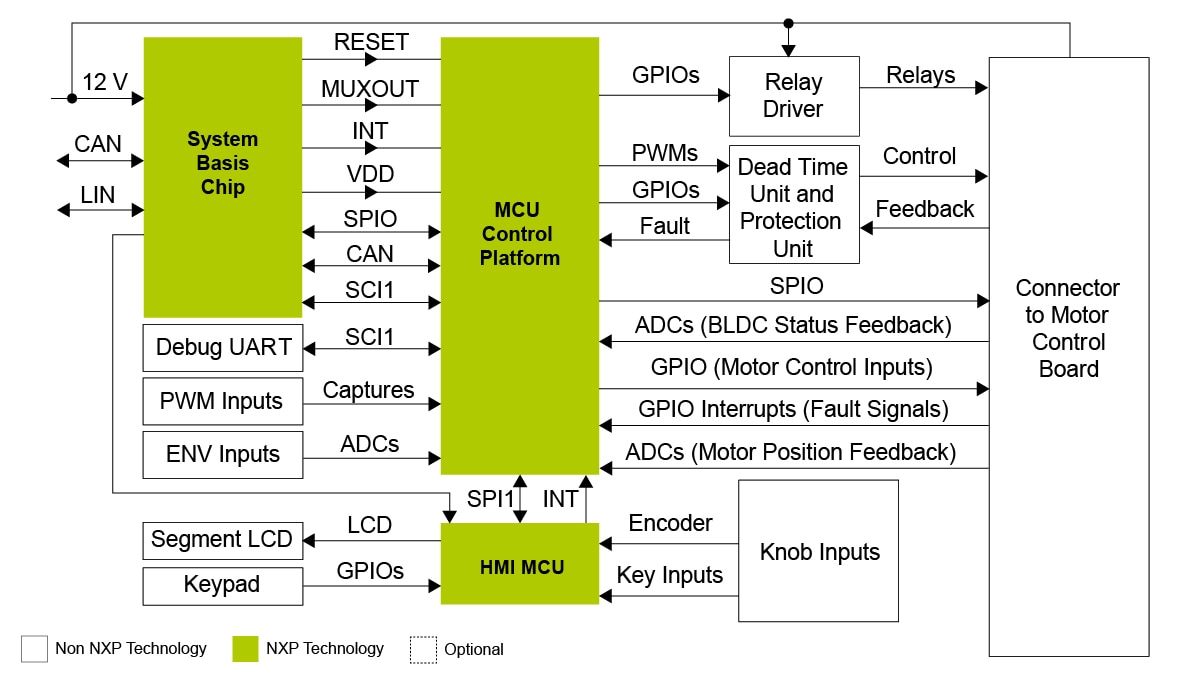

Block Diagram

RDS12GHVAC-1

S12G Automotive HVAC Control Platform
Get diagram PDF

Features

  • RDS12GHVAC can be tailored for both 12 V and 24 V HVAC systems
  • Supports multiple temperature zones and automatic climate control
  • Real-time clock and date display, adjustment for calendar
  • Extensible with touch keyboard or touchscreen board
  • Interfaces
    • CAN, LIN
    • 2 x logic relay interfaces to compressor defrost module
    • 3x3 matrix keypad and two encoder knob inputs
    • 4x37 segment LCD and adjustable backlighting
  • Power
    • Ultra-low power mode, can be woken up by HMI or LIN CAN bus
  • Target Applications
    • HEATING-VENTILATION-AIR-CONDITIONING
    • Industrial
N true 0 PSPRDS12GHVAC-1en 4 Application Note Application Note t789 3 User Guide User Guide t792 1 en_US en_US en Application Note Application Note 3 1 0 English This application note describes Flap Motor Control Based On HVAC Platform 1351146801820729071696 PSP 1.6 MB None None documents None 1351146801820729071696 /docs/en/application-note/AN4616.pdf 1603624 /docs/en/application-note/AN4616.pdf AN4616 documents N N 2016-10-31 Flap Motor Control Based On HVAC Platform /docs/en/application-note/AN4616.pdf /docs/en/application-note/AN4616.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 24, 2012 645036621402383989 Application Note Y N Flap Motor Control Based On HVAC Platform 2 0 English Describing the design of a three-phase sensorless BLDC motor drive with back-EMF zero-crossing based on the MC9S12G240 MCU that can be effectively used for motor control applications. 1351063865470741766849 PSP 3.0 MB None None documents None 1351063865470741766849 /docs/en/application-note/AN4618.pdf 3006184 /docs/en/application-note/AN4618.pdf AN4618 documents N N 2016-10-31 AN4618: Sensorless BLDC Motor Control Using S12G240 Based on HVAC Platform – Application Note /docs/en/application-note/AN4618.pdf /docs/en/application-note/AN4618.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 23, 2012 645036621402383989 Application Note Y N AN4618: Sensorless BLDC Motor Control Using S12G240 Based on HVAC Platform – Application Note 3 0 English Outlining how to implement a human-machine interface (HMI) 3x3 matrix keypad, two encoder type knobs, and a segment LCD in the heating, ventilation, and air conditioning (HVAC) platform solution based on the MC9S08LG32 MCU communicating via SPI with an MC9S12G240 MCU. 1350466523381725822248 PSP 499.5 KB None None documents None 1350466523381725822248 /docs/en/application-note/AN4617.pdf 499537 /docs/en/application-note/AN4617.pdf AN4617 documents N N 2016-10-31 AN4617: Human-Machine Interface (HMI) Design Using HVAC Platform – Application Note /docs/en/application-note/AN4617.pdf /docs/en/application-note/AN4617.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 18, 2012 645036621402383989 Application Note Y N AN4617: Human-Machine Interface (HMI) Design Using HVAC Platform – Application Note User Guide User Guide 1 4 0 English This document describes the basic steps for getting started with NXP’s HVAC Platform V1.1 demo, and the basic board function is explained. 1351178922595713065554 PSP 1.9 MB None None documents None 1351178922595713065554 /docs/en/user-guide/AHVACPUG.pdf 1863139 /docs/en/user-guide/AHVACPUG.pdf AHVACPUG documents N N 2016-10-31 HVAC Platform V1.1 User Guide /docs/en/user-guide/AHVACPUG.pdf /docs/en/user-guide/AHVACPUG.pdf User Guide N 132339537837198660 2023-06-19 pdf N en Oct 25, 2012 132339537837198660 User Guide Y N HVAC Platform V1.1 User Guide false 0 RDS12GHVAC-1 downloads en true 0 Y PSP Application Note 3 /docs/en/application-note/AN4616.pdf 2016-10-31 1351146801820729071696 PSP 1 Oct 24, 2012 Application Note This application note describes Flap Motor Control Based On HVAC Platform None /docs/en/application-note/AN4616.pdf English documents 1603624 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4616.pdf Flap Motor Control Based On HVAC Platform /docs/en/application-note/AN4616.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Flap Motor Control Based On HVAC Platform 1.6 MB AN4616 N 1351146801820729071696 /docs/en/application-note/AN4618.pdf 2016-10-31 1351063865470741766849 PSP 2 Oct 23, 2012 Application Note Describing the design of a three-phase sensorless BLDC motor drive with back-EMF zero-crossing based on the MC9S12G240 MCU that can be effectively used for motor control applications. None /docs/en/application-note/AN4618.pdf English documents 3006184 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4618.pdf AN4618: Sensorless BLDC Motor Control Using S12G240 Based on HVAC Platform – Application Note /docs/en/application-note/AN4618.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4618: Sensorless BLDC Motor Control Using S12G240 Based on HVAC Platform – Application Note 3.0 MB AN4618 N 1351063865470741766849 /docs/en/application-note/AN4617.pdf 2016-10-31 1350466523381725822248 PSP 3 Oct 18, 2012 Application Note Outlining how to implement a human-machine interface (HMI) 3x3 matrix keypad, two encoder type knobs, and a segment LCD in the heating, ventilation, and air conditioning (HVAC) platform solution based on the MC9S08LG32 MCU communicating via SPI with an MC9S12G240 MCU. None /docs/en/application-note/AN4617.pdf English documents 499537 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4617.pdf AN4617: Human-Machine Interface (HMI) Design Using HVAC Platform – Application Note /docs/en/application-note/AN4617.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4617: Human-Machine Interface (HMI) Design Using HVAC Platform – Application Note 499.5 KB AN4617 N 1350466523381725822248 User Guide 1 /docs/en/user-guide/AHVACPUG.pdf 2016-10-31 1351178922595713065554 PSP 4 Oct 25, 2012 User Guide This document describes the basic steps for getting started with NXP’s HVAC Platform V1.1 demo, and the basic board function is explained. None /docs/en/user-guide/AHVACPUG.pdf English documents 1863139 None 132339537837198660 2023-06-19 N /docs/en/user-guide/AHVACPUG.pdf HVAC Platform V1.1 User Guide /docs/en/user-guide/AHVACPUG.pdf documents 132339537837198660 User Guide N en None Y pdf 0 N N HVAC Platform V1.1 User Guide 1.9 MB AHVACPUG N 1351178922595713065554 true Y Designs
