TEA2356DB1624 140W PFC+AHB Demo Board

TEA2356DB1624 new
Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information please contact your sales representative.

Roll over image to zoom in

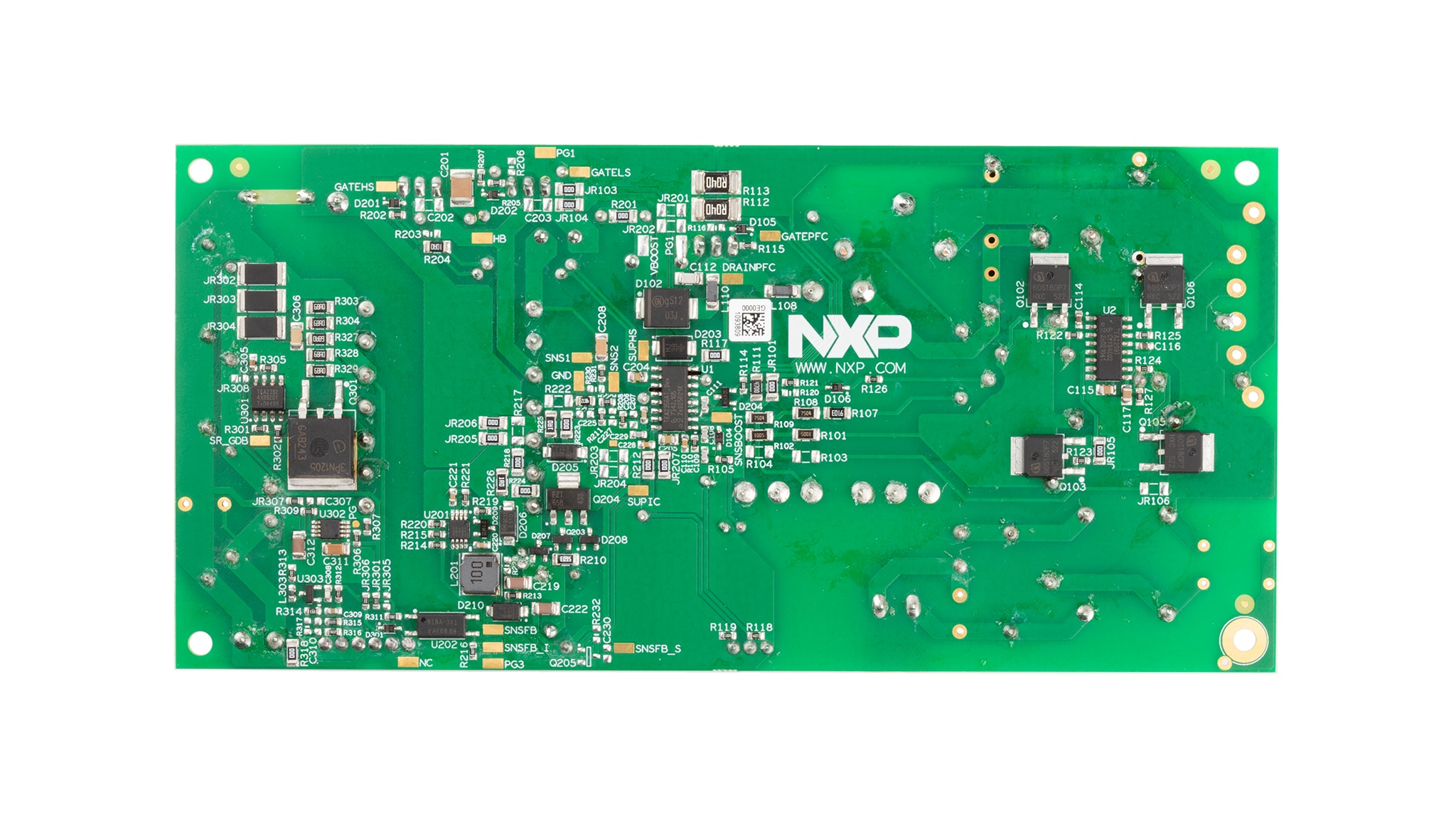

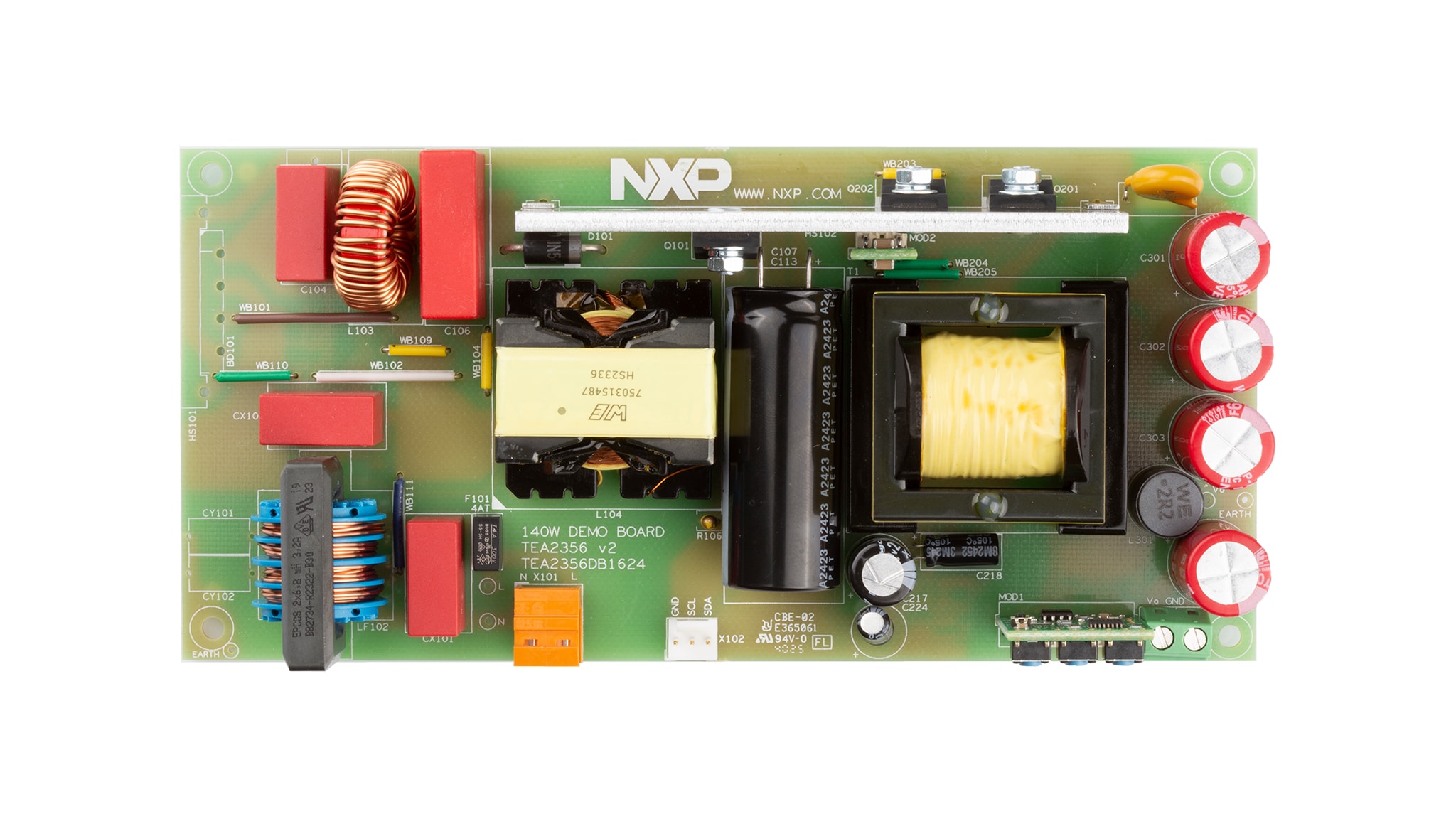

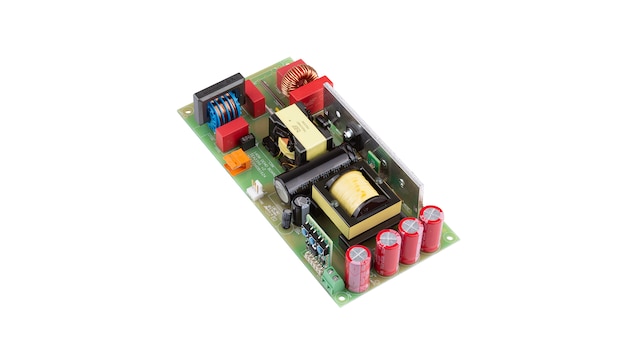

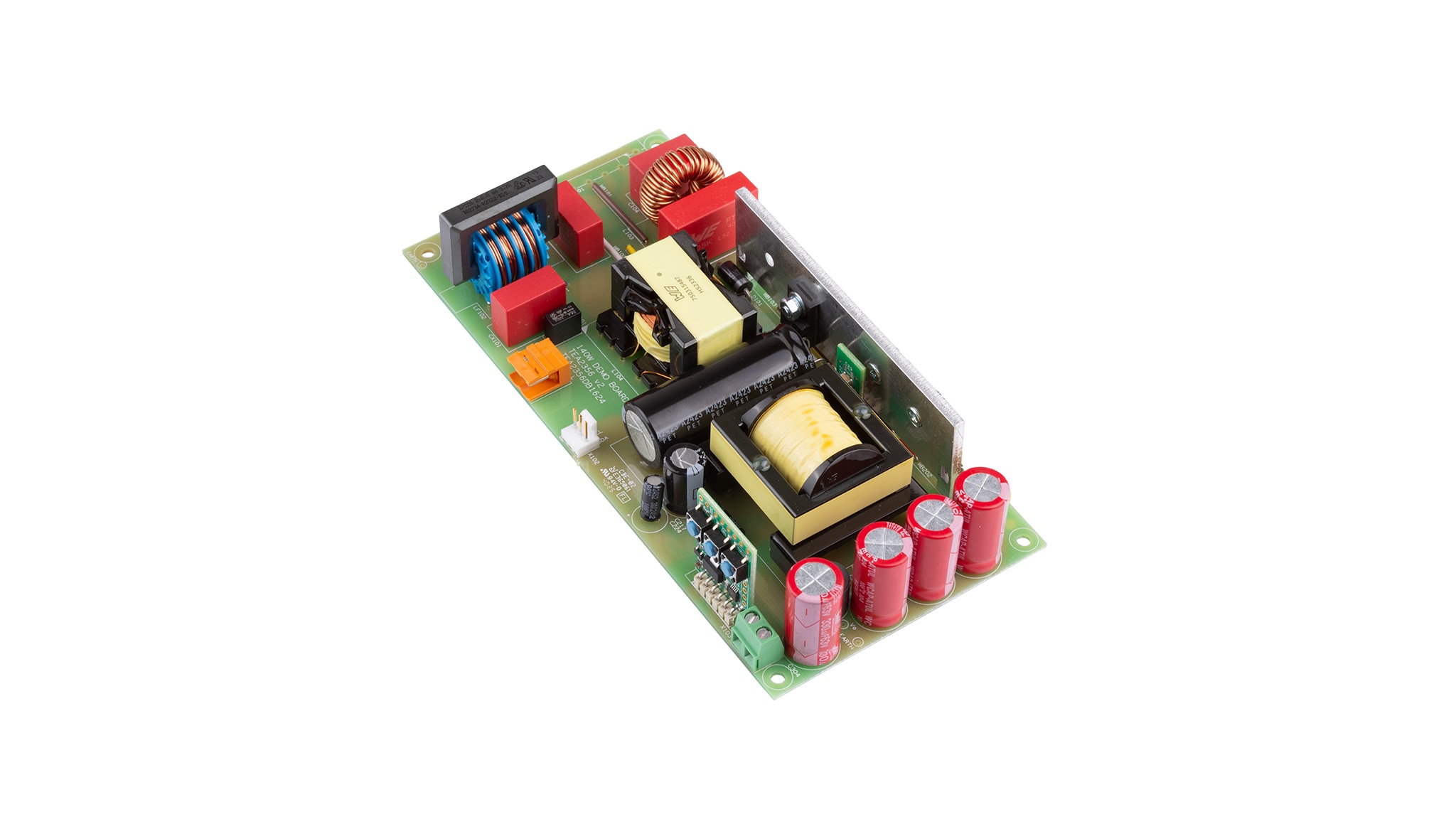

The TEA2356DB1624 is a 140 W PFC + AHB demonstration board that allows the output voltage to be configured to 5 V, 9 V, 15 V, 20 V, or 28 V. The design integrates the TEA2356 PFC + AHB controller together with the TEA2392 synchronous rectifier (SR) controller, providing a compact and efficient reference solution for high‑performance power conversion.

Supported Devices

Power Management

AC-DC Controllers

  • TEA2209T: Active Bridge Rectifier Controller

Features

Key Features

  • Complete functionality of a PFC and AHB controller in a single small-size SO16 package
  • Integrated high-voltage start-up
  • Integrated drivers and high-voltage level shifter (LS)
  • High-side driver directly supplied from the low-side driver output
  • Accurate boost-voltage regulation
  • PFC can be configured to operate in:
    • DCM/QR
    • DCM/QR/CCM (also called multimode operation)
    • CCM fixed frequency
  • Integrated X-capacitor discharge without of additional external components
  • Power good function
  • PFC jitter for optimized EMI performance
  • AHB jitter for optimized EMI performance
  • Excellent power factor (PF) and total harmonic distortion (THD), as the PFC current compensates for the input filter current
  • Optimum efficiency point tracking in low-power mode for the AHB
  • Adaptive current transfer time to cope with spread and varying resonant capacitor value of the AHB
  • Burst-mode of AHB for optimum low power efficiency
    • Burst-mode of AHB includes soft start and soft stop to minimize the audible noise in this mode
  • Accurate mode transition levels of the AHB (burst-mode, low-power mode and high-power mode)
  • Good stability at low resonant-capacitor values of the AHB
  • Several parameters can easily be configured during evaluation with the graphical user interface (GUI)
  • Can easily be combined with an external standby supply
  • Fast start-up behavior

Green Features

  • Valley/zero voltage switching for minimum switching losses
  • Very high efficiency from low load to high load
  • Compliant with latest energy-saving standards and directives (Energy Star, EuP)
  • Excellent no-load input power (< 60 mW at 5 V out for the combination of the TEA2356AT with the TEA2392T or TEA2093T)

Protection features

  • Independently configurable levels and timers
  • Protections can independently be set to be latched, safe restart, or latched after several attempts to restart
  • Supply overvoltage protection
  • Supply undervoltage protection (UVP)
  • Overload protection (OLP)
  • Internal and external overtemperature protection (OTP)
  • Accurate PFC and AHB overvoltage protection (OVP)
  • Second independent overvoltage protection via DRAINPFC pin
  • Overvoltage protection of the resonant capacitor (CRESOVP)
  • Overcurrent protection (OCP)
  • Inrush current protection (ICP)
  • Brownin/brownout protection
  • Disable input
  • Input to reset all protections
