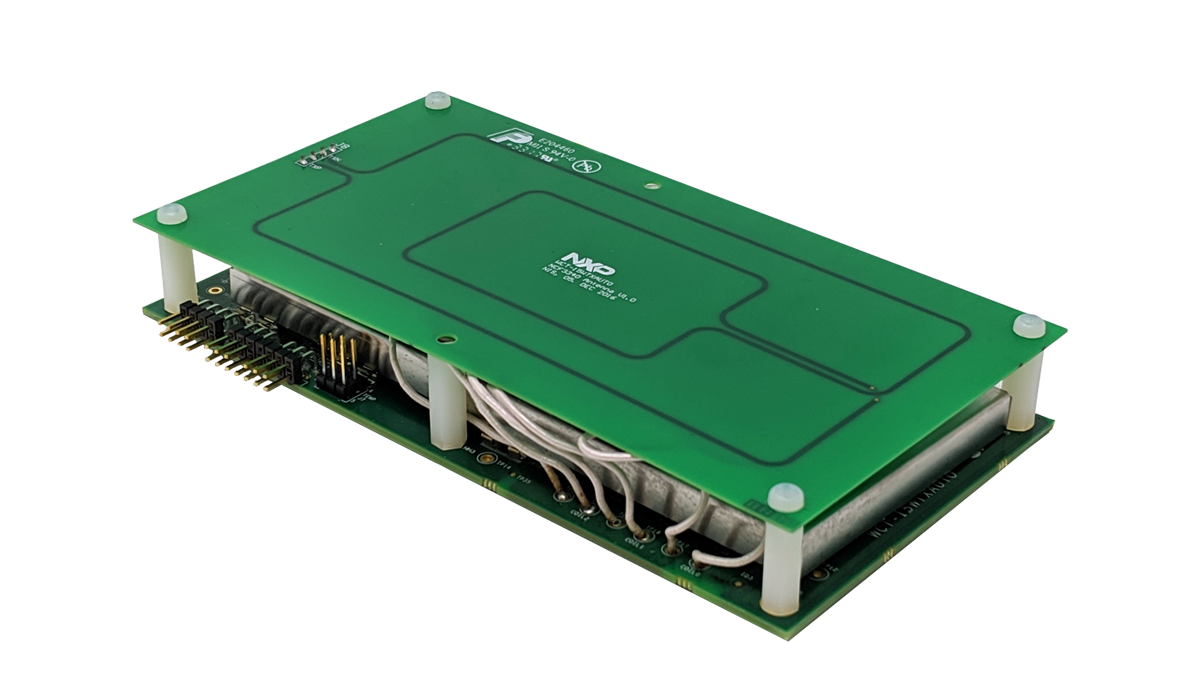

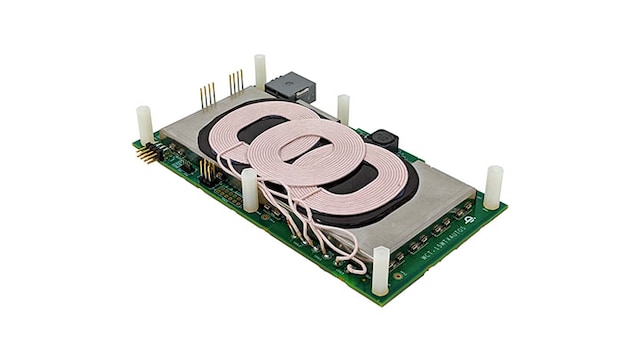

AUTOSAR Qi2 Wireless Charging Transmitter with Integrated Security Module

WCT-15WAUTOS2

Roll over image to zoom in

The WCT-15WAUTOS2 wireless power transmitter provides complete controller functionality with AUTOSAR and non-AUTOSAR SW enablement to implement a wireless charging transmitter solution in an automotive environment. Featuring an integrated security module designed for automotive security and on-chip Qi authentication, with flexible 512-4MB memory and both single and dual core options.

Block Diagram

Choose a diagram:

15WAUTOS2

15WAUTOS2-BD

MPPAUTOS2 After HW Modification

MPPAUTOS2-after-HW-modification-BD
Get diagram PDF

Features

Wireless Charging Function

  • Wireless charging compatibility with Qi2 (EPP/MPP)
  • Single and multidevice charger
  • On-chip security module

Scalable Single Platform

  • Single, multiple Cortex-M7 cores, 120 MHz to 160 MHz + FPU
  • 512 KB-4 MB Flash with ECC
  • FOTA – A/B firmware swap with zero downtime and roll-back support. Automatic address translation
  • 12-bit 1 Msps ADC, 16-bit eMIOS timer with logic control unit for motor control
  • Low-power run and standby modes, fast wake-up, clock and power gating
  • LQFP
  • AEC-Q100 qualified Grade 1: -40 °C to 125 °C

Safety, Security and Connectivity

  • ISO 26262 up to ASIL B
  • Fault Collection and Control Unit
  • Hardware and software watchdogs, clock/power/temperature monitors
  • Safety documentation and SafeAssure community support
  • HSE security engine - AES-128/192/256, RSA, ECC, secure boot and key storage; side channel protection; ISO 21434 intended
  • Ethernet TSN/AVB (100 Mbit/s - 1 Gbit/s), CAN FD, FlexIO (SPI/IIC/IIS/SENT protocol), serial audio interface, QSPI

Production-Grade Software

  • S32 Design Studio IDE – Eclipse, GCC and debugger, 3rd party support
  • Real-time Drivers – free of charge (AUTOSAR and non-AUTOSAR), ASIL-B compliant
  • Security firmware – NXP provided, field upgradable
  • S32 Safety Software Framework (SAF) and Structural Core self-test (SCST) library
  • Safety peripheral drivers

Buy Options

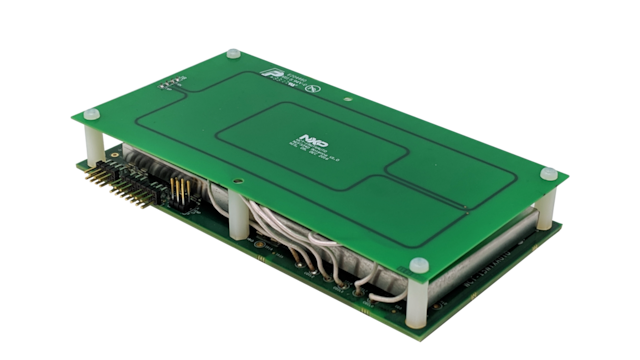

WCT-15WAUTOS2-Image

Click to expand

WCT-15WAUTOS2
Active

AUTOSAR Qi2 Wireless Charging Transmitter with Integrated Security Module.

    $599.99 USD
    In Stock :2

    Normally ships 1-2 business days

    ADD TO CART
