FRDM Expansion board for MC34931- Brushed DC Motor Driver, H-Bridge, 20 kHz

FRDM-34931S-EVB Active

Roll over image to zoom in

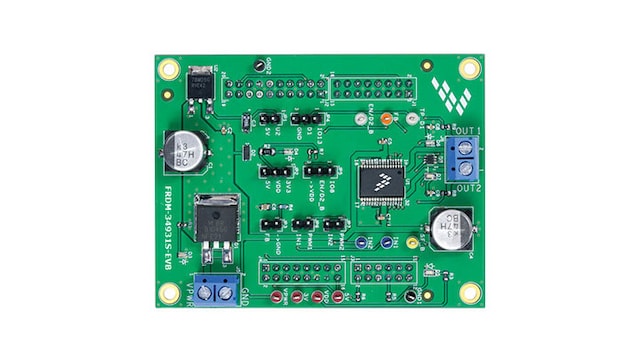

The FRDM-34931S-EVB Expansion Board is an easy-to-use circuit board that allows the user to exercise all the functions of the MC34931SEK H-Bridge circuit to drive a brushed DC motor with operation between 5-36 V and up to 5 A. The parallel input in FRDM-34931S-EVB can be easily controlled using 3.0/5.0 V compatible laboratory equipment, GPIO of any MCU or through a FRDM-KL25Z board connected to a PC’s USB port.

Using in conjunction with FRDM-KL25Z, the Graphical User Interface program provides the User Interface to the USB in FRDM-KL25Z board and allows the user to send commands to the IC.

Product Details

Supported Devices

BLDC, H-Bridge, Stepper

  • MC34931: MC34931/S H-Bridge, Brushed DC Motor Driver, 5-36 V, 5 A, 11 kHz/20 kHz

Features

Connectivity

  • Compatible with NXP’s all FRDM Development Platform
  • Enabling/disabling of outputs

Power Management

  • PWM frequency control up to 20 kHz
  • Monitoring of status flag pin for undervoltage, short circuit and over-temperature events
  • Built in reverse battery protection
  • Built in voltage regulator to supply logic level circuitry
  • Transient voltage suppressor to handle system level transients
  • Duty cycle

Test Points

  • Test points to allow probing of signals

Monitoring

  • Real-time load current monitoring for implementing advanced diagnostics

User Components

  • LEDs to indicate the supply status and direction of motor

General Specifications

  • Motor Run and Stop
  • Direction control

Buy Options

FRDM-34931S-EVB-Image

Click to expand

FRDM-34931S-EVB
Active

Freedom Expansion Board - MC34931, 36 V 5.0 A h-bridge.

    $124.20 USD
    Pending Stock
    ADD TO CART
    Order from distributors
    FRDM-34931SEVM-Image

    Click to expand

    FRDM-34931SEVM
    Active

    Freedom Expansion Board- MC34931, H-Bridge Driver.

      $131.10 USD
      Pending Stock
      ADD TO CART
      Order from distributors
