FRDM Expansion Board for the MPC17C724

FRDM-17C724-EVB
Active

Roll over image to zoom in

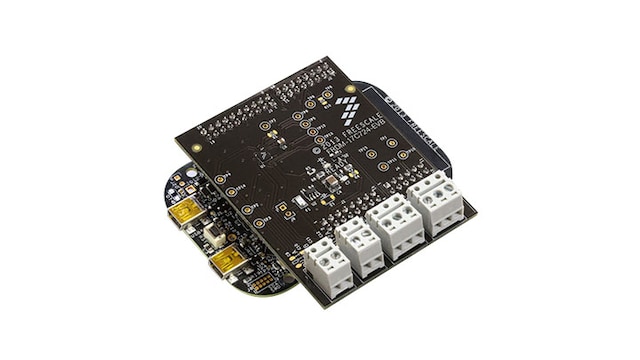

The FRDM-17C724-EVB offers a low-power, cost-effective evaluation and development system for quick application prototyping and demonstration of Kinetis® MCU families.

It features the MPC17C724 two-channel H-Bridge driver, which is ideal for portable electronic applications containing bipolar stepper motors or brush DC motors such as those used in camera lenses and irises.

The MPC17C724FS can operate efficiently (with supply voltages from 2.7 V - 5.5 V) and provide continuous motor drive currents of 0.4 A.

  • Small motor driver minimizes mounting area
  • Moderate drive current capability for small motor
  • Can connect with low cost MCU
  • Can put on small aperture of PCB for motor drive
  • Processor Expert® component for low voltage H-Bridge products enables rapid embedded application development.

Product Details

Supported Devices

Processors and Microcontrollers

KL Series Arm Cortex-M0+

  • KL1x: Kinetis® KL1x-48 MHz, Mainstream Small Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

BLDC, H-Bridge, Stepper

  • MPC17C724: H-Bridge, Motor Driver, 2.7-5.5 V, 0.8 A, 200 kHz

Features

Connectivity

  • Screw terminals for motor leads and power connections

Power Management

  • Board power is separate from host CPU power
  • Built in regulator for logic power supply
  • Fuse protected

User Components

  • General-purpose LED driven from FRDM-KL25Z

General Specifications

  • Designed for use with FRDM-KL25Z (can be used with FRDM and Arduino®)
