FRDM Kit - MPC17C724, 0.4 A Dual H-Bridge

FRDM-17C724EVB Active

Roll over image to zoom in

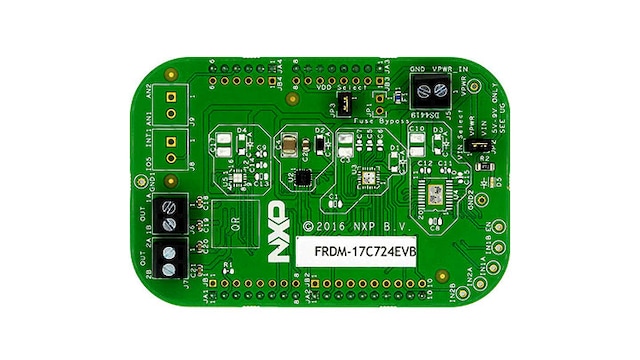

The evaluation kit features the MPC17C724 compact monolithic dual channel H-Bridge power IC, which is ideal for portable electronic applications containing bipolar stepper motors or brush DC motors, such as those used in camera lenses and shutters.

The MPC17C724 can operate efficiently with supply voltages from 2.7 V to 5.5 V and can provide continuous motor drive currents of 0.4 A with low RDS(ON) of 1.0 Ω. It is easily interfaced to low-cost MCUs via parallel 3.0 V- or 5.0 V-compatible logic and has built-in shoot-through current protection circuit and undervoltage detector to avoid malfunction.

Processor Expert® component for low voltage H-Bridge

Supported Devices

Processors and Microcontrollers

KL Series Arm Cortex-M0+

  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL1x: Kinetis® KL1x-48 MHz, Mainstream Small Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

BLDC, H-Bridge, Stepper

  • MPC17C724: H-Bridge, Motor Driver, 2.7-5.5 V, 0.8 A, 200 kHz

Features

General Specifications

  • PWM Control Frequency 200 kHz (Max)
  • Designed for use with FRDM-KL25Z (can be used with FRDM and Arduino®)

Connectivity

  • Screw terminals for motor leads and power connections

Power Management

  • Fuse protected
  • Built in regulator for logic power supply
  • Board power is separate from host CPU power

Size

  • Very Compact Size, Comes in 16-Terminal QFN Package (3 x 3 mm Terminal Pitch: 0.5 mm)

User Components

  • General-purpose LED driven from FRDM-KL25Z

Buy Options

FRDM-17C724EVB-Image

Click to expand

FRDM-17C724EVB
Active

FRDM-17C724EVB.

    $103.50 USD
    Pending Stock
    ADD TO CART
    Order from distributors
