PTN5150A-PTN36043 USB Type-C CC Logic Evaluation Kit

OM13584
Active

The PTN5150A-PTN36043 evaluation board can demonstrate the USB Type-C CC control logic behavior for both DFP and UFP cases. It can be controlled through either on-board strapping options, or I²C interface using tools such as Aardvark I²C tool. Depending on the device connected on the Type-C receptacle, the on-board status LEDs can indicate current connection type. There is also an USB3 SuperSpeed redriver PTN34043 that is designed for Type-C application to extend the driver strength of the USB3 5Gbps signal.

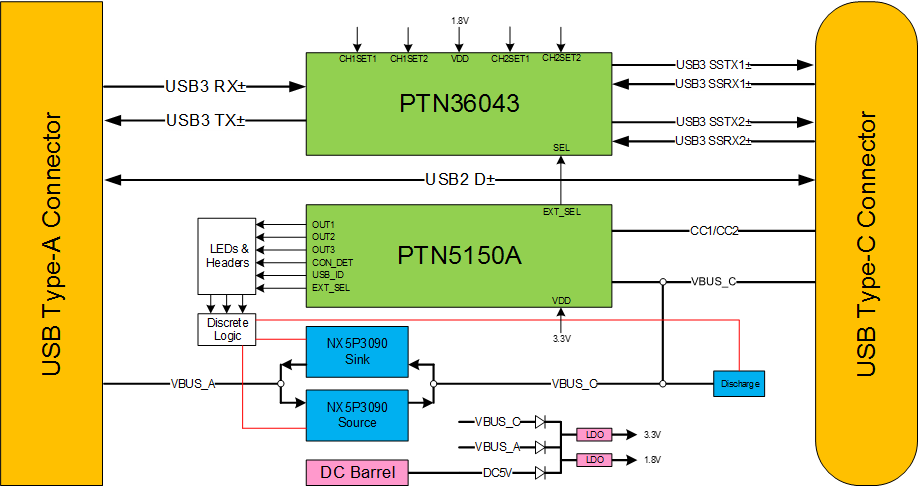

Block Diagram

OM13584

OM13584
Get diagram PDF

Supported Devices

Interfaces

USB Interfaces

  • PTN36043x: USB Type-C SuperSpeed Active Switch
  • PTN5150: CC Logic for USB Type-C Applications

Features

Connectivity

  • USB Type-C CC Logic Controller
  • USB3 SuperSpeed Redriver with adjustable EQ/OS/DE
  • GPIO interface or I²C interface controls

Power Management

  • Board can be powered from Type-A connector, Type-C connector (UFP configuration), or 5 VDC barrel
  • DFP Current Mode Detection

Debug

  • Debug Accessory Detection

Key Features

  • Orientation
  • ID Output
  • CON_DETECT
  • Convert from Type-A to Type-C, or vice versa

Buy Options

OM13584-Image

Click to expand

  • OM13584
    Active

  • PTN5150A-PTN36043 USB Type-C CC Logic Evaluation Kit.

  • Kit Contains:

    • Demo Board
    • Users Manual and Schematics
  • $181.25 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 1
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
