TEA2376DK1011 Development Programming Board and Samples

TEA2376DK1011

Roll over image to zoom in

The TEA2376 is a digital configurable two-phase interleaved PFC controller for high-efficiency power supplies, available in SO14 and SO10 package. The PFC operates in discontinuous conduction mode or quasi-resonant mode with valley switching to optimize efficiency.

The TEA2376 is suitable for TV, computing, server and industrial power supplies. For low-load operation with good efficiency, phase shedding and burst mode operation are included. The TEA2376 supports a high power factor and a low THD and contains many protections which can be configured independently by a GUI.

The TEA2376 allows an easy to design, highly efficient, reliable interleaved PFC with a low external component count for power levels up to typically 1000 W.

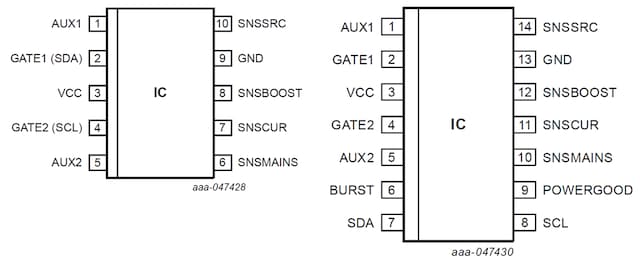

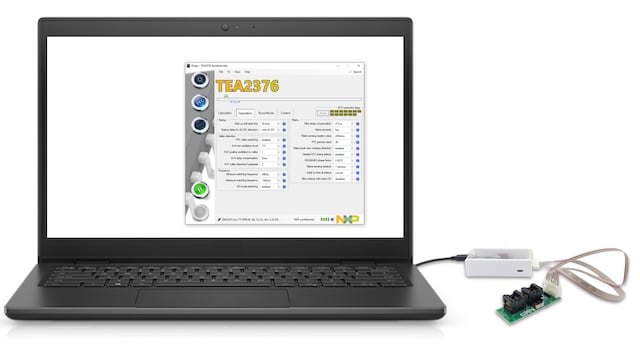

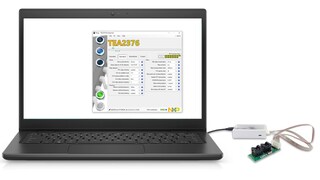

The TEA2376DK1011development kit includes the TEA2376DB1604 SO10 and SO14 socket board for programming TEA2376 IC samples in combination with the RDK01DB1563 I2C interface and 20 TEA2376DT IC samples that are most suitable for using during power supply development.

Supported Devices

Power Management

AC-DC Controllers with Integrated PFC

  • TEA2376: TEA2376xT, Digital Configurable Interleaved PFC Controllers

Features

TEA2376 Features

  • Interleaved PFC controller
  • Programmable phase shedding and burst mode operation
  • High PF and low THD
  • Low audible noise
  • Valley/zero voltage switching for minimum switching losses
  • Many programmable protections like Dual OVP, UVP, OTP, OCP, etc.

TEA2376DK1011 Content

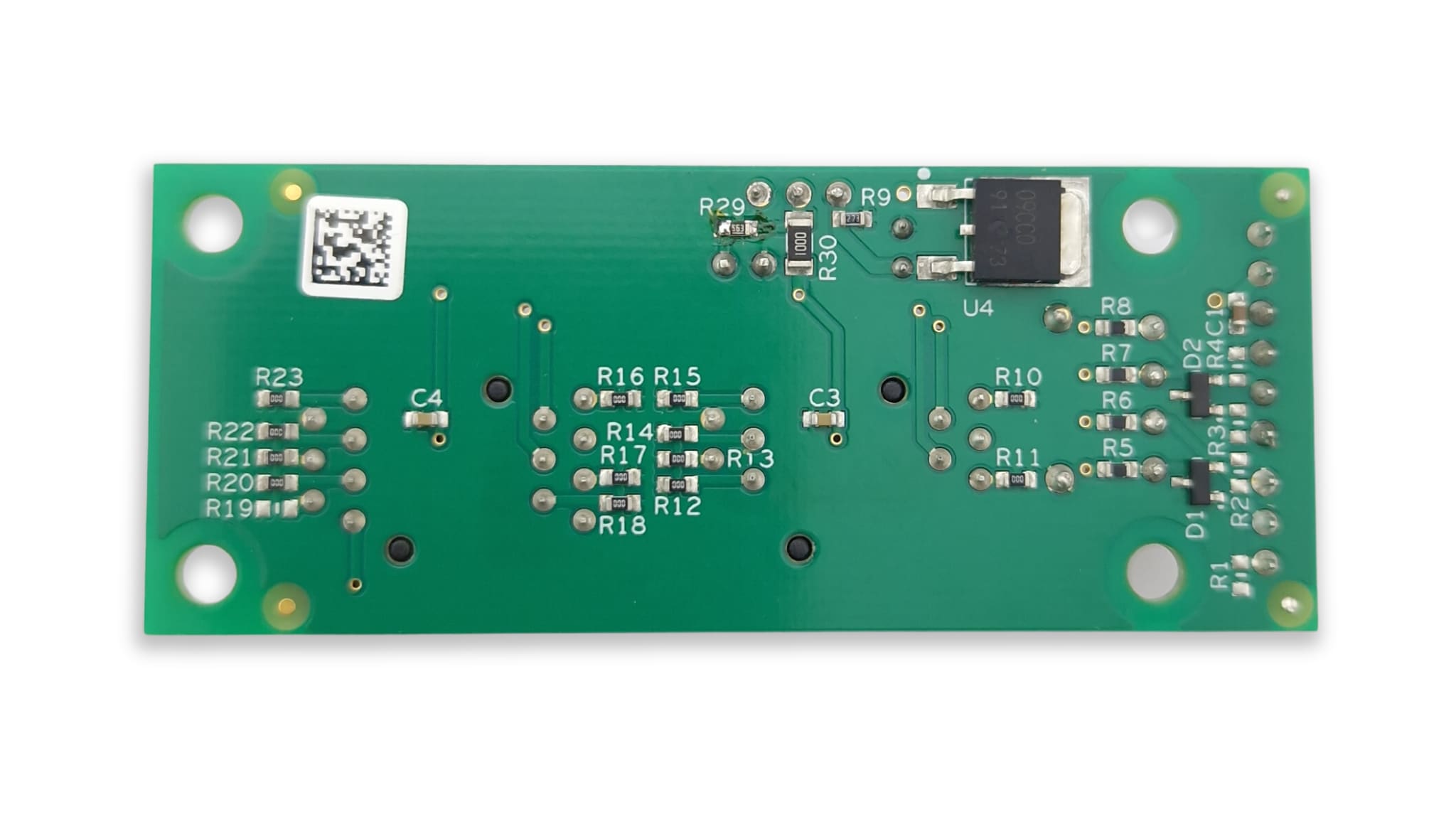

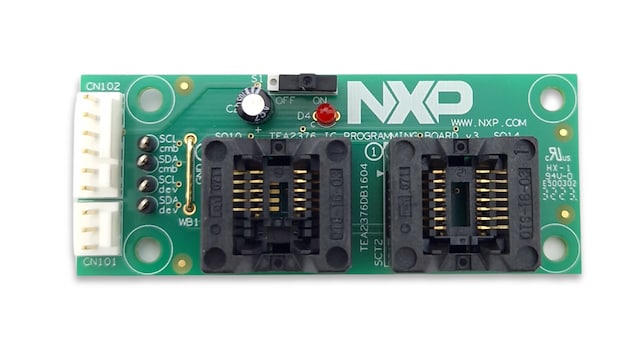

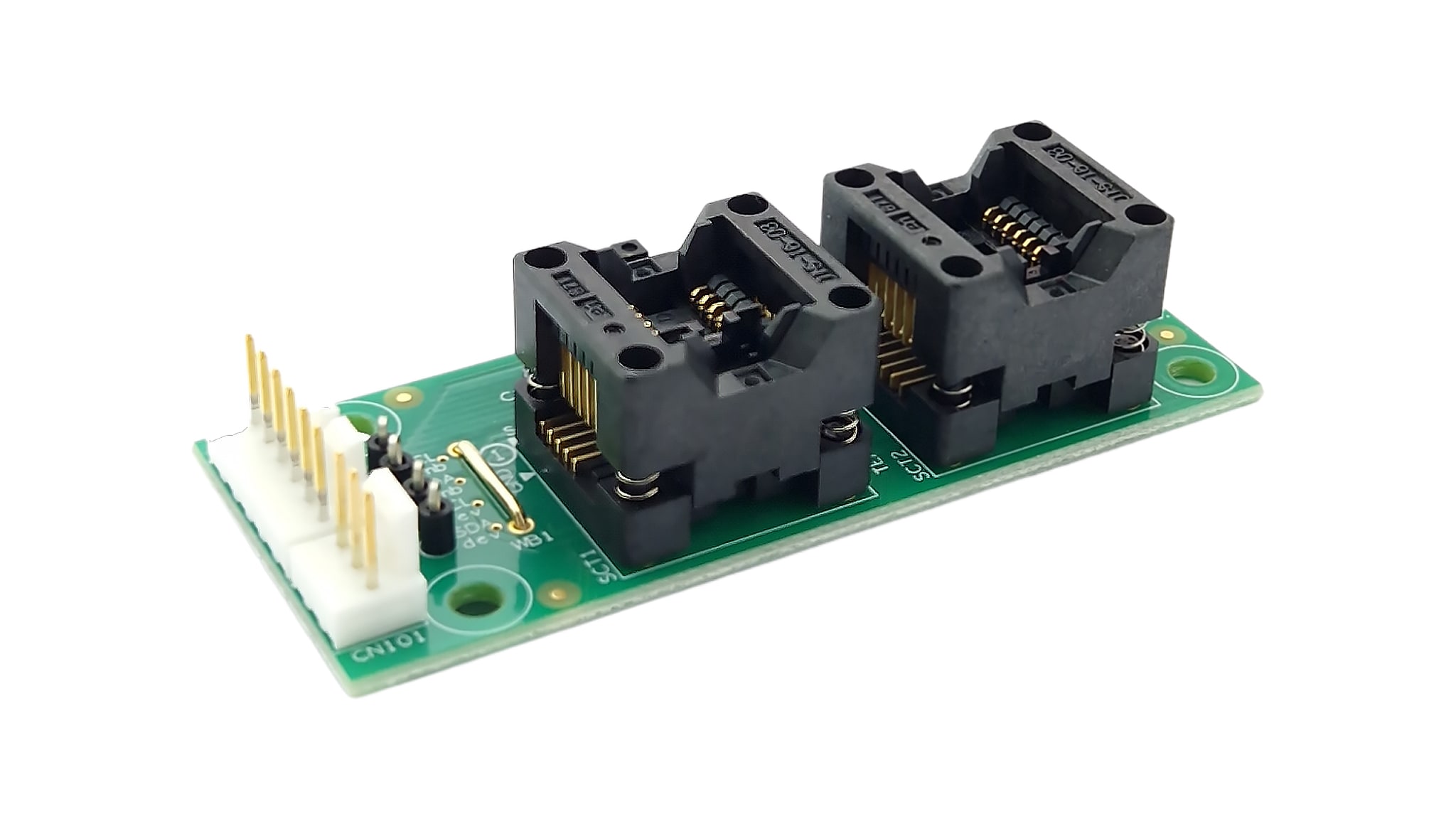

  • TEA2376DB1604 programming board with SO10 and SO14 IC sockets

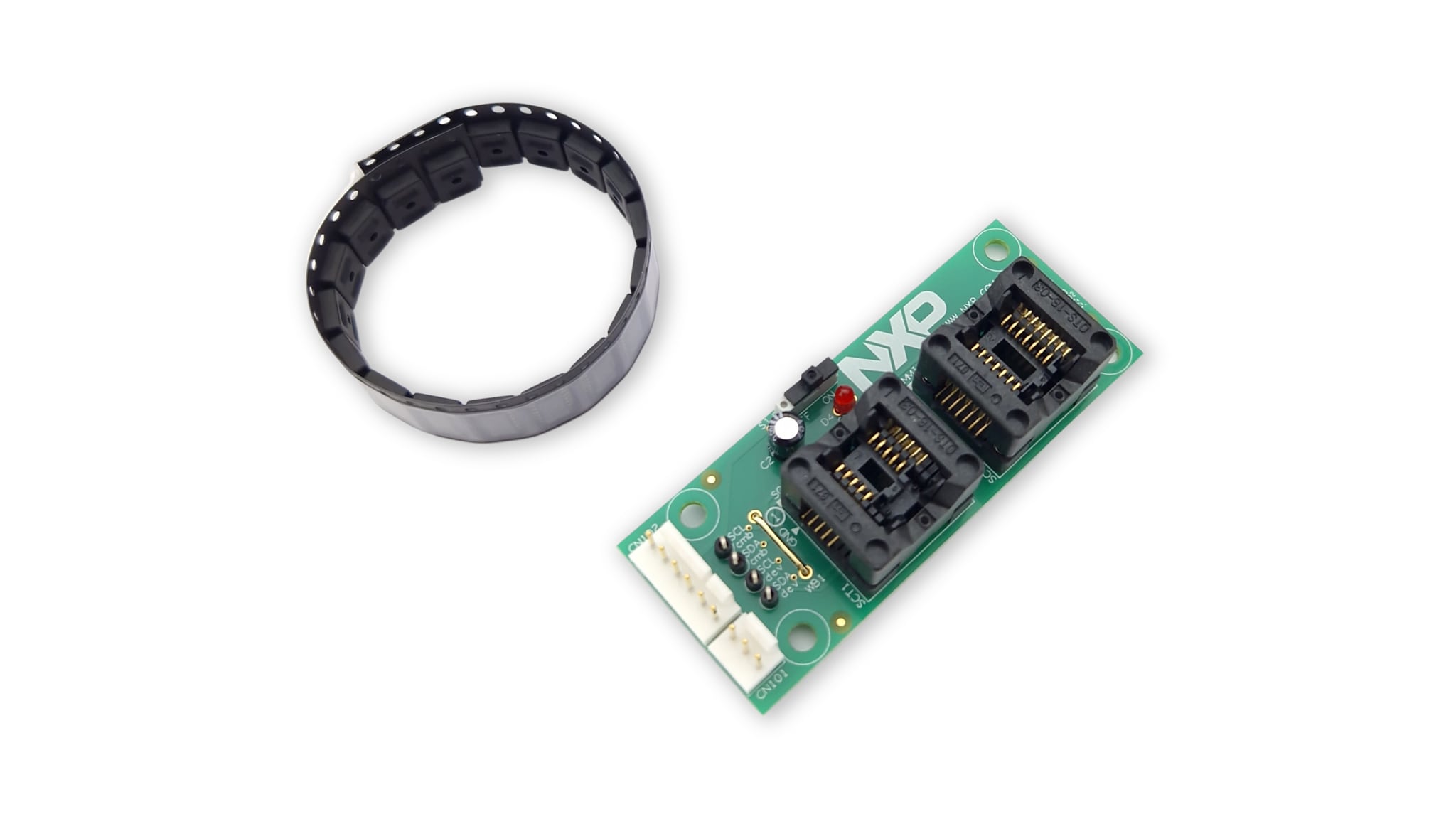

  • 20 TEA2376DT IC samples

TEA2376DB1604 Programming

  • This board can be used to program IC samples in combination with a TEA2016DB1514 USB I2C interface
  • A SO10 and SO14 IC socket support both TEA2376 package versions
  • A switch with LED indicator can be used to disconnect the VCC supply voltage when exchanging IC samples

Buy Options

TEA2376DK1011-Image

Click to expand

  • TEA2376DK1011
    Active

  • TEA2376DK1011 Development Programming Board and Samples.

  • Kit contains:

    • 1 TEA2376DB1604 programming board with SO10 and SO14 IC sockets
    • 10 TEA2376DT IC samples
  • $50.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
