Color eReader Reference Design Based on i.MX 8ULP

IMX8ULP-COLOR-EREADER Preproduction
  • This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

Roll over image to zoom in

The NXP Color eReader reference design demonstrates how to use the i.MX 8ULP built-in EPDC (Electrophoretic Display Controller) to drive the E Ink® Gallery™ 3 and Kaleido™ 3 color e-paper. Since an external TCON (Timing Controller) is not required, the cost and power consumption are significantly reduced.

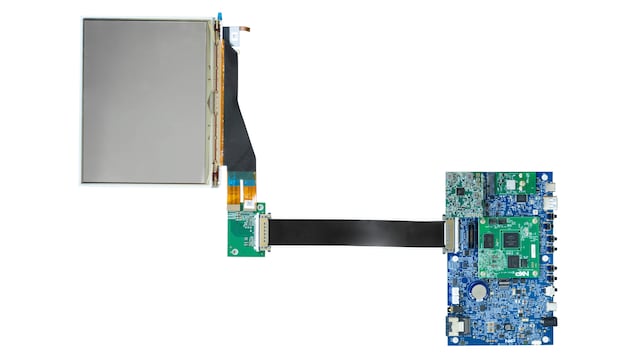

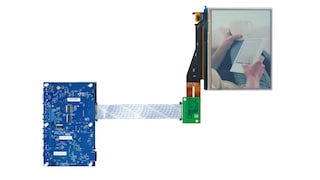

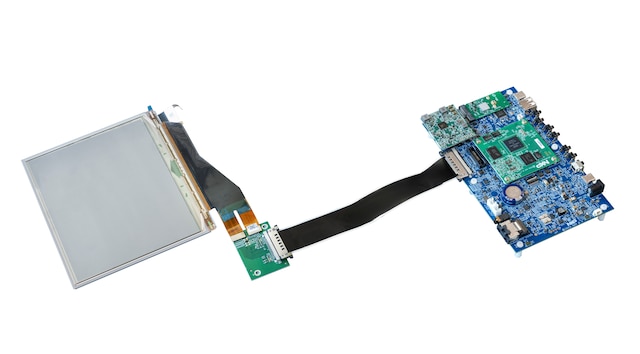

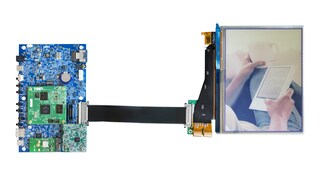

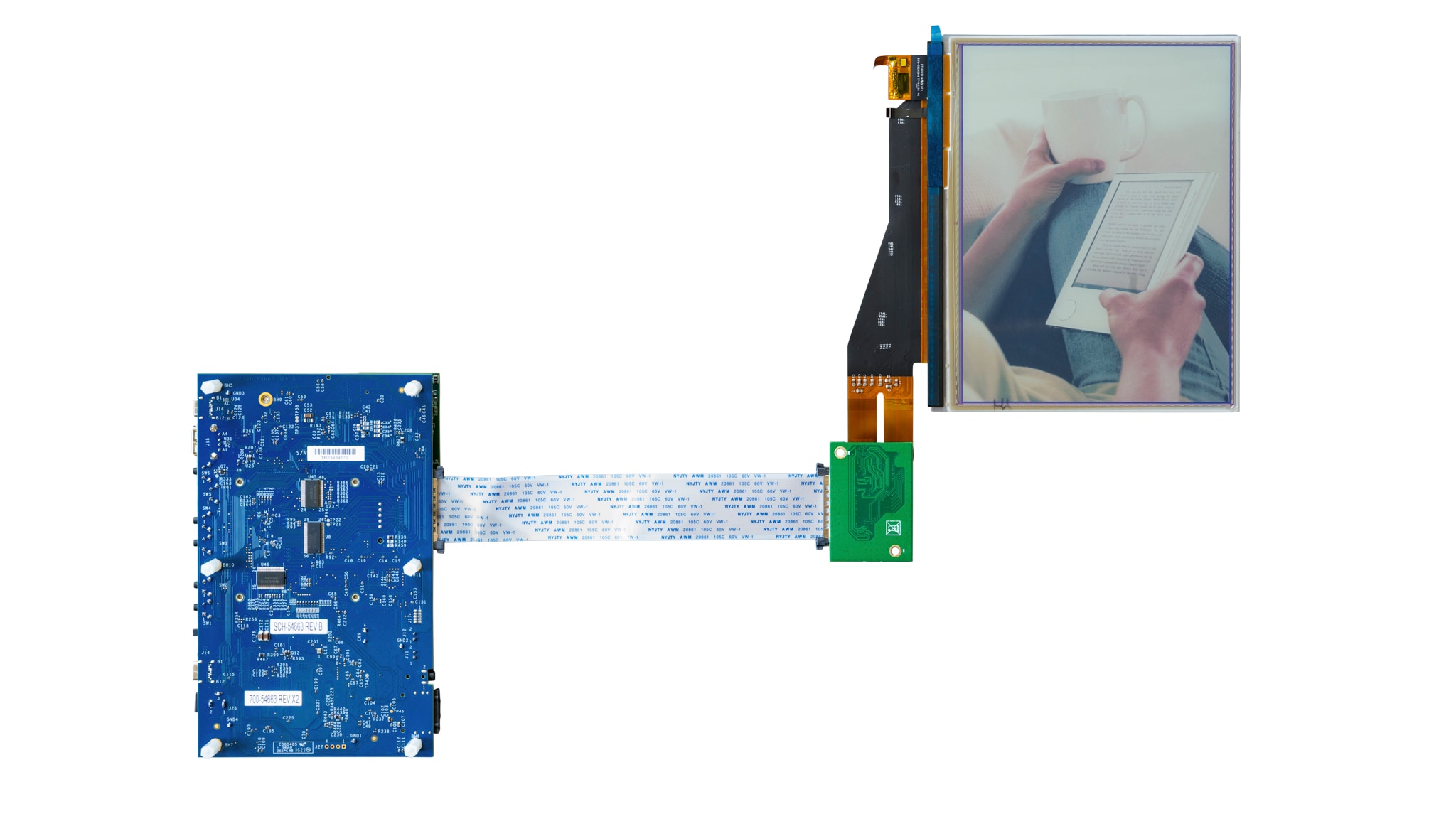

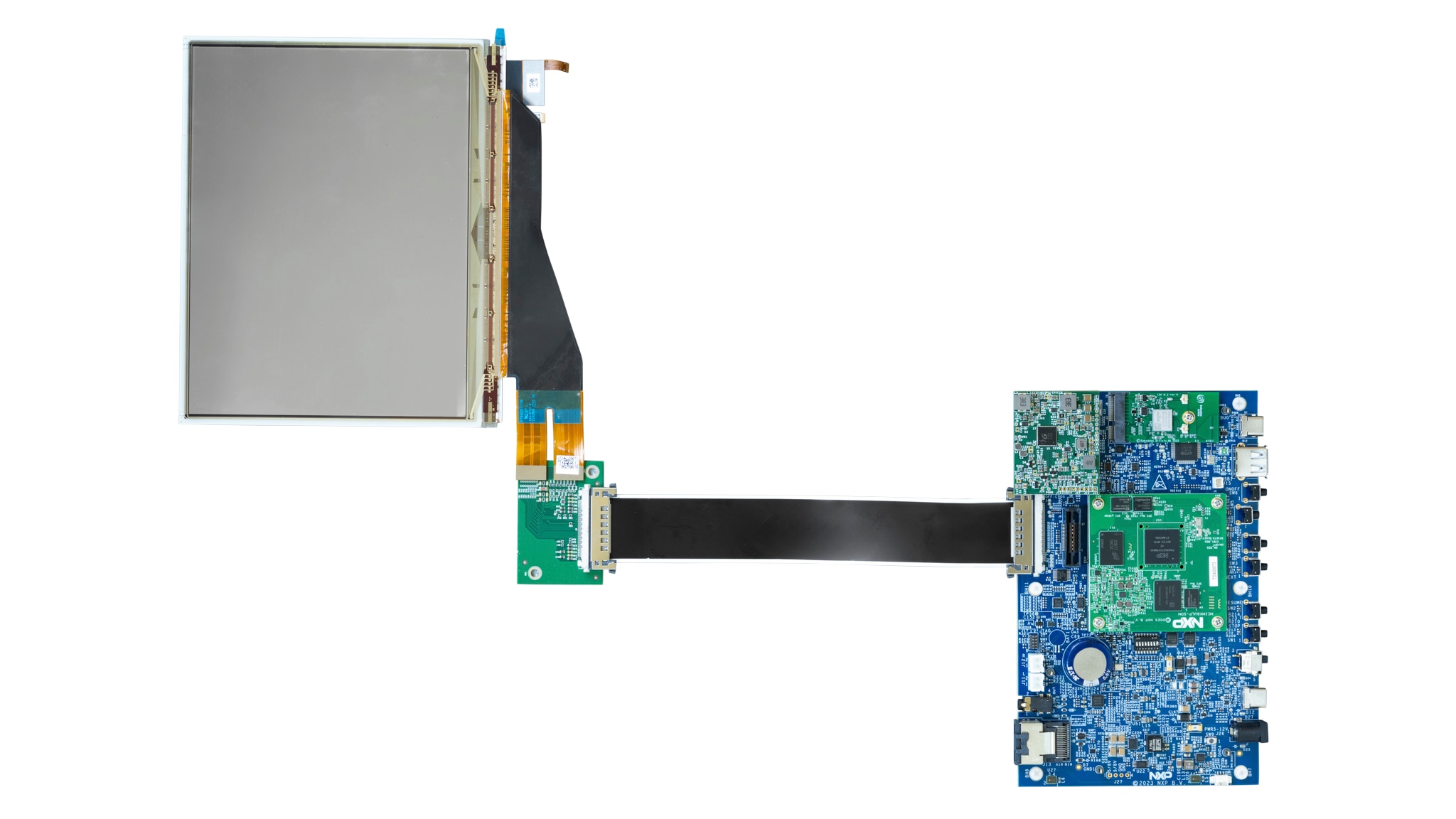

This reference design consists of:

  • A SOM (MCIMX8ULP-SOM) with the i.MX 8ULP processor, PMIC, 32GB eMMC, and 2GB LPDDR4x.
  • A baseboard (8ULP-ACEP-EPD) specifically designed to support eReaders.
  • An EPD PMIC daughter card (8ULP-ACEP-PMIC).
  • A panel adapter board (8ULP-ACEP-KH3) for the E Ink® Gallery™ 3 or Kaleido™ 3 color e-paper displays.

Block Diagram

Color eReader

Color eReader Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

i.MX 8 Applications Processors

  • i.MX8ULP: i.MX 8ULP Applications Processor Family

Interfaces

USB Interfaces

  • PTN5150: CC Logic for USB Type-C Applications

Power Management

5 V PMIC Solutions

  • PCA9460: 13-Channel Power Management Integrated Circuit (PMIC) for Ultra Low Power Application

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • IW416: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 4 (802.11n) + Bluetooth® 5.2 Solution

Features

Processor

  • NXP i.MX 8ULP applications processor

Memory

  • 2GB LPDDR4x + 32GB eMMC

PMIC

  • NXP PCA9460B: 13-Channel PMIC for Ultra Low Power Application

Display

  • E Ink® Gallery™ 3 and E Ink® Kaleido™ 3 color e-paper

Wireless

  • NXP IW416: Wi-Fi 1x1 Dual-Band (2.4/5 GHz) and Bluetooth 5.2

Connectivity

  • NXP PTN5150: USB 2.0 Type C

Tools and OS support

  • Linux®
