S12G Gen4 Lighting

KIT12XS6EVM Active

Roll over image to zoom in

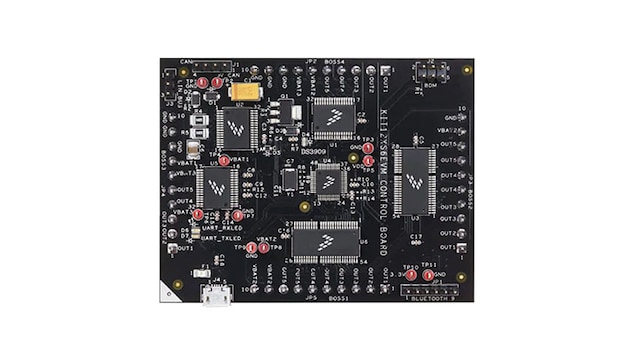

This kit is a control board that allows driving up to 20 separated loads with four integrated smart high-side switches. It can be associated with a large panel of bulbs types thanks to the device configuration and flexibility (incandescent, LED, HID ballast). These four daisy-chained smart power switches are controlled by an S12G MCU associated with the MC33903 System Basis Chip.

Block Diagram

Gen4 Lighting

KIT12XS6EVM Gen4 Lighting Reference Design - Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

16-Bit S12 and S12X MCUs

  • S12G: Ultra-Reliable S12G General Purpose Automotive and Industrial Microcontrollers

Power Management

High Side Switches

  • MC12XS6: External Automotive Lighting Multi-Channel eXtreme Switch

Interfaces

Automotive LIN Solutions

  • MC33903: SBC Gen2 with High-Speed CAN and LIN

Features

Functionality

  • 20 protected power high-side switches with low RDS(on)

Interfaces

  • A USB port with serial UART support

Connectors

  • CAN and LIN bus connectors
  • Bluetooth® connector with LDO voltage regulator

Debugging

  • Background debug mode (BDM) connector for downloading microcode to the S12G128 on-chip flash memory

Buy Options

KIT12XS6EVM-Image

Click to expand

  • KIT12XS6EVM
    Active

  • Evaluation Kit - MC12XS6, Automotive Bulb Driver using four Multichannel eXtreme Switches.

  • Kit contains:

    • Dual and triple high-side switches with high transient current capability
    • 16-bit 5.0 MHz SPI control of overcurrent profiles, channel control including PWM duty-cycles, output ON and OFF openload
    • Operating voltage is 7.0 V to 18 V with sleep current < 5.0 µA, extended mode from 6.0 V to 28 V
  • $80.04 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
KITLIGHTEVB-Image

Click to expand

  • KITLIGHTEVB
    Active

  • Evaluation Kit - eXtreme Switch Lighting Board.

  • Kit contains:

    • Load board for KIT12XS6EVM lighting
    • 3 x 12 V-55/60 W H4 bulbs
    • 4 x 12 V LED loads
    • 4 x 12 V 5/21 W bulbs
    • 2 x 12 V 21 W bulbs
  • $129.72 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
