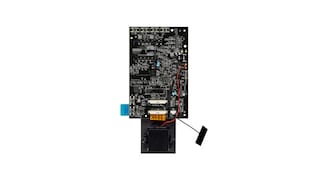

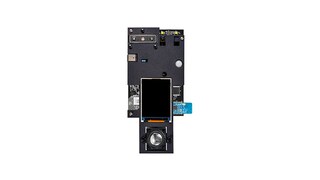

NXP EdgeReady MCU-Based Solution for 3D Face Recognition

Roll over image to zoom in

Product Details

Block Diagram

Choose a diagram:

i.MX RT117F 3D Face Recognition Hardware Block Diagram

i.MX RT117F 3D Face Recognition Hardware Block Diagram

i.MX RT117F 3D Face Recognition Software Block Diagram

i.MX RT117F 3D Face Recognition Software Block Diagram

Supported Devices

Wireless Connectivity

Bluetooth Low Energy

Processors and Microcontrollers

i.MX RT Crossover MCUs

Features

Memory

  • 2 MB SRAM (i.MX RT117F internal)
  • 32 MB QSPI NOR Flash Module
  • 32 MB SDRAM PC200 Module

Camera

  • Orbbec 3D SLM Camera Module with Depth and IR Sensing
  • Optional RGB Camera Module with GalaxyCore GC0308 Image Sensor

Display

  • Optional Rocktech TFT Display with Parallel Interface

Motion Detection

    Optional Murata PIR Sensor

Audio Playback

    Optional MQS DAC (internal i.MX RT117F) to control inexpensive analog amplifier

Lighting

    Optional White LED Strobe with PWM LED driver

User Interface

    Optional User/Reset Switches and RGB Status LED

Toolchain

ML/AI

    Smart Lock Application featuring NXP Machine Learning Face Recognition Engine

Phone App

    Android Smart Lock App for the Remote Registration

Buy Options

SLN-VIZN3D-IOT-Image

Click to expand

  • SLN-VIZN3D-IOT

  • NXP EdgeReady MCU-Based Solution for 3D Face Recognition.

  • $299.00 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
