PIN Pad Point of Sale (POS) Solution

PIN-PAD-POS

Roll over image to zoom in

The PIN pad point of sale solution has been designed to be a PIN entry device (PED) in the PCI certification process and has undergone PCI 4.1 certification. The solution is based on the TWR-POS-K81 Tower® board and comes with design files, Infogard PCI 4.1 submittal paperwork and software used to achieve for certification.

K8x MCU Family Hardware Tools - Fact Sheet

Product Details

Select a section:

Block Diagram

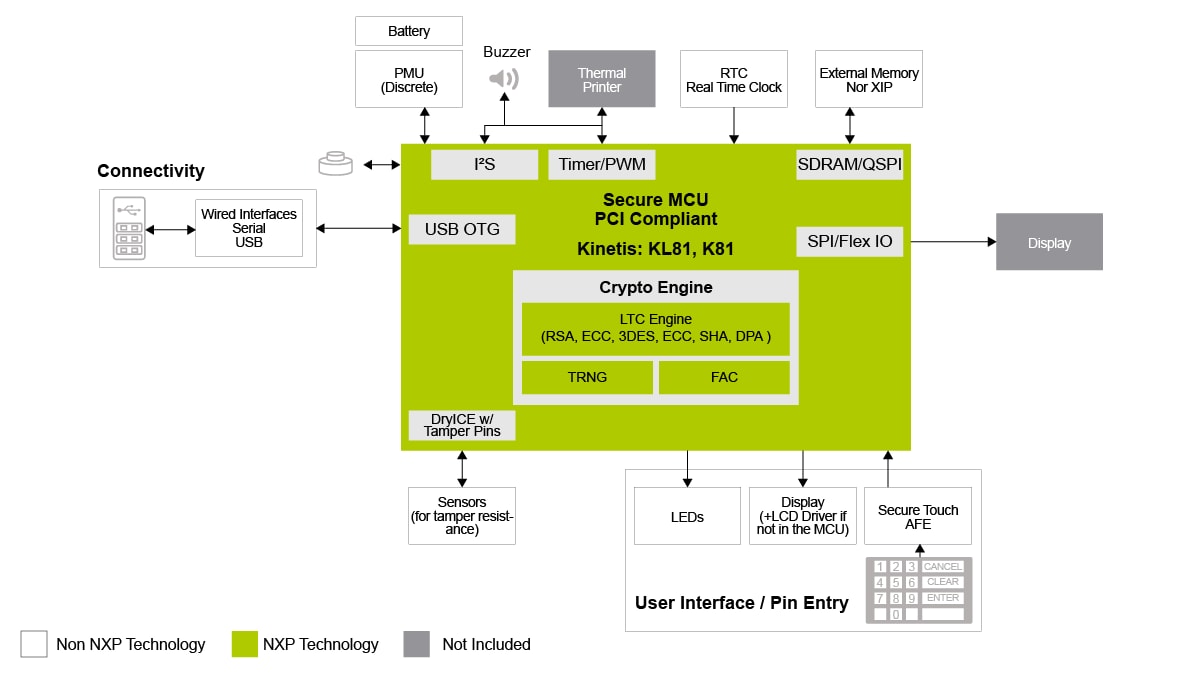

Point-of-Sale Block Diagram

PIN Pad Point of Sale (POS) Solution
Get diagram PDF

Supported Devices

Processors and Microcontrollers

K8x Secure

  • K81_150: Kinetis K81-150 MHz HW Cryptographic Co-Processor, Anti-Tamper and QuadSPI Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core

KL Series Arm Cortex-M0+

  • KL8x: Kinetis® KL8x-72/96 MHz Secure Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Features

Display Options

  • Two-line character segment

EMVCo

  • EMVCo Level 1 CT/CL stacks by NXP
  • EMVCo Level 2 CT/CL stacks by Cardtek
  • EMVCo and PCI PTS V4.1 certification

Other

  • Chip-and-PIN keypad based on Cirque® SecureSense™ technology

Buy Options

TWR-POS-K81-Image

Click to expand

  • TWR-POS-K81

  • Point-Of-Sales (POS) Tower System Development Board based on Kinetis K81 MCUs.

  • The TWR-POS-K81F board is a targeted reference design for the point-of-sale market

    Kit contains:

    • TWR-POS-K81
  • $499.00 USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 1
    • Shipping: Normally ships 1-2 business days
Buy from NXPBuy From Distributor
