Automotive Motor Control Solutions

Complete Motor Control development kits and reference designs for rapid prototyping and evaluation of 3-phase BLDC/PMSM, 3-phase sensorless BLDC/PMSM and 3-phase PMSM, and sensorless BLDC targeting automotive and industrial applications, without the need to wait for final hardware design.

Arm-Based
MagniV
MPC5xxx
Software
Communities
Trainings
Documentation

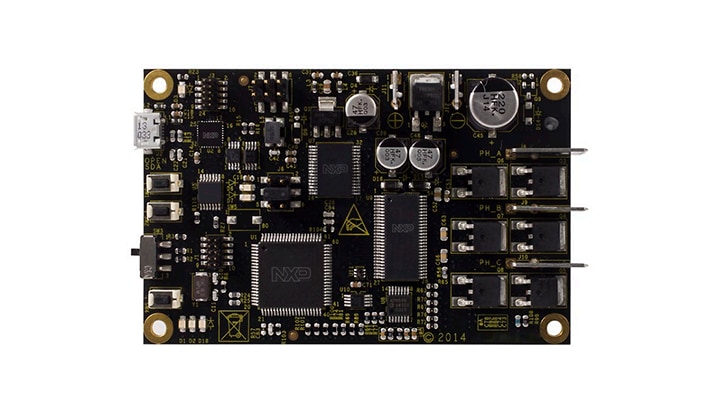

Arm-Based Development Platform

Key Features

Solution	MCU	Motor Control Type / Technique	Position and Speed sensor	Typical Motor Control Application	Typ. Voltage	Current
MCSPTE1AK116	S32K116	1x 3 ph BLDC/PMSM motor 6-Step Commutation / Field Oriented Control (FOC)	Encoder / Hall / Sensorless	Basic BLDC/PMSM actuators for mirrors, seats, trunk, pumps…	12 V	up to 8 A
MCSXTE2BK142	S32K142	1x 3 ph BLDC/PMSM motor 6-Step Commutation / Field Oriented Control (FOC)	Encoder / Hall / Sensorless	BLDC/PMSM actuators for windows and doors, HVAC, pumps, engine cooling,…	12 V / 24 V	up to 25 A
MCSPTE1AK144	S32K144	1x 3 ph BLDC/PMSM motor 6-Step Commutation / Field Oriented Control (FOC)	Encoder / Hall / Sensorless	BLDC/PMSM actuators for windows and doors, HVAC, pumps, engine cooling,…	12 V	up to 8 A
MCTPTX1AK324	S32K324	3x 3 ph BLDC/PMSM motor, 1x DC, 4x HS switch 6-Step Commutation / Field Oriented Control (FOC)	1x Encoder / Hall / Sensorless 2x Sensorless	BLDC/PMSM multimotor applications like thermal management for EV	12 V	3x up to 8 A 1x 1.5 A for DCM 5 A peak for HS switches
MCSPTE1AK344	S32K344	1x 3 ph BLDC/PMSM motor 6-Step Commutation / Field Oriented Control (FOC)	Encoder / Hall / Sensorless	Advanced BLDC/PMSM applications with higher demands on functional safety and security like power steering, braking, compressors, belt start generators,…	12 V	up to 8 A
MCSXTM4CK344	S32K344	2x 3 ph BLDC/PMSM motor Field Oriented Control (FOC)	Encoder / Resolver / Sensorless	Dual 24/48 V BLDC/PMSM motor control applications requiring high functional safety and security standards for applications like Starter Generator, Engine Colling Fan, Water Pump, A/C Compressor, eTurbo, eBooster as well as Small Traction Drives for e-Bikes, e-Scooters, Rickshaws,…	24 V / 48 V	up to 2x 80 A
MCSPTR2AK396	S32K396	1x 3 ph PMSM motor Field Oriented Control (FOC) with Resolver	Resolver / Encoder / Hall / Sensorless	Advanced PMSM applications with higher demands on functional safety and security like power steering, braking, compressors, belt start generators, traction drives…	12 V / 24 V	up to 10 A
S32M24XEVB	S32M244	1x 3 ph BLDC/PMSM motor 6-Step Commutation / Field Oriented Control (FOC)	Encoder / Hall / Sensorless	Advanced integrated solution for BLDC/PMSM applications with higher demands on high-performance and functional safety compliance with ISO 26262 up to ASIL B.	12 V	up to 15 A
S32M27XEVB	S32M276	1x 3 ph BLDC/PMSM motor 6-Step Commutation / Field Oriented Control (FOC)	Encoder / Hall / Sensorless	Advanced integrated solution for BLDC/PMSM applications with higher demands on high-performance and functional safety compliance with ISO 26262 up to ASIL B.	12 V	up to 15 A
S32M276SFFRD	S32M276	1x 3 ph BLDC/PMSM motor 6-Step Commutation / Field Oriented Control (FOC)	Encoder / Hall / Sensorless	Small form factor reference board with integrated solution for BLDC/PMSM applications and CAN interface.	12 V	up to 8 A

How to Develop Your Own Motorized Ice Cream Maker

Watch Tomorrow Lab® team discover S32M2 and create a quiet, efficient, intelligent, ideal motorized ice cream maker.

Discover More

S12 MagniV and S12 Development Platforms

Key Features

Solution	MCU	Motor Control Type / Technique	Position and Speed sensor	Typical Motor Control Application	Typ. Voltage	Current
S12ZVM-EFP	S12ZVML128	1x 3 ph BLDC/PMSM motor 6-Step Commutation / Field Oriented Control (FOC)	Encoder / Hall / Sensorless	BLDC/PMSM actuators for windows and doors, HVAC, pumps, engine cooling,…	12 V	up to 20 A
MCSXSR1CS12ZVM	S12ZVML128	1x 3 ph BLDC/PMSM motor 6-Step Commutation / Field Oriented Control (FOC)	Resolver / Encoder / Hall / Sensorless	BLDC/PMSM HVAC, pumps, engine cooling,…	12 V	up to 80 A
S12ZVML-MINIKIT	S12ZVML128	1x 3 ph BLDC/PMSM motor 6-Step Commutation / Field Oriented Control (FOC)	Sensorless	BLDC/PMSM actuators for windows and doors	12 V	up to 5 A
MTRCKTSBNZVM128	S12ZVML128	1x 3 ph BLDC motor 6-Step Commutation	Resolver / Encoder / Hall / Sensorless	BLDC/PMSM actuators for windows and doors, HVAC, pumps, engine cooling,…	12 V	up to 8 A
MTRCKTSPNZVM128	S12ZVML128	1x 3 ph PMSM motor Field Oriented Control (FOC)	Resolver / Encoder / Hall / Sensorless	BLDC/PMSM actuators for windows and doors, HVAC, pumps, engine cooling,…	12 V	up to 8 A
MTRCKTSBNG128	S12G128	1x 3 ph BLDC motor 6-Step Commutation	Hall / Sensorless	BLDC/PMSM actuators for windows and doors, HVAC, pumps, engine cooling,…	12 V / 24 V	up to 10 A
S12ZVM32EVB	S12ZVM32 / S12ZVML31	1x 3 ph BLDC/PMSM motor 6-Step Commutation / Field Oriented Control (FOC)	Encoder / Hall / Sensorless	BLDC/PMSM actuators for windows and doors, HVAC, pumps, engine cooling,…	12 V	up to 8 A
S12ZVMAEVB	S12ZVMA	1x unidirectional DC motor (half-bridge)	Hall	Unidirectional DC motor in pumps,…	12 V	up to 8 A
S12ZVMBEVB	S12ZVMB	1x bidirectional DC motor (full-bridge)	Hall	Bidirectional DC motor in actuators,…	12 V	up to 8 A
S12ZVMC256EVB	S12ZVMC256	1x 3 ph BLDC/PMSM motor 6-Step Commutation / Field Oriented Control (FOC)	Encoder / Hall / Sensorless	BLDC/PMSM actuators for windows and doors, HVAC, pumps, engine cooling,…	12 V	up to 8 A
S12ZVMEVB	S12ZVML128	1x 3 ph BLDC/PMSM motor 6-Step Commutation / Field Oriented Control (FOC)	Resolver / Encoder / Hall / Sensorless	BLDC/PMSM actuators for windows and doors, HVAC, pumps, engine cooling,…	12 V	up to 8 A

MPC57xx and MPC56xx Development Platforms

Key Features

Solution	MCU	Motor Control Type / Technique	Position and Speed sensor	Typical Motor Control Application	Typ. Voltage	Current
MCSPTR2A5775E	MPC5775E	1x 3 ph PMSM motor Field Oriented Control (FOC) with Resolver	Resolver / Encoder / Hall / Sensorless	Advanced PMSM applications with higher demands on functional safety and security like power steering, braking, compressors, belt start generators, traction drives…	12 V / 24 V	up to 10 A
MTRCKTSPS5744P	MPC5744P	1x 3 ph PMSM motor Field Oriented Control (FOC) with Resolver	Resolver / Encoder / Hall / Sensorless	Advanced PMSM applications with higher demands on functional safety and security like power steering, braking, compressors, belt start generators, traction drives…	12 V / 24 V	up to 10 A
MTRCKTDBN5643L	MPC5643L	2x 3 ph BLDC motor 6-Step Commutation	Resolver / Encoder / Hall / Sensorless	Dual BLDC for HVAC, pumps, engine cooling… with higher demands on functional safety	12 V / 24 V	up to 10 A
MTRCKTDPS5643L	MPC5643L	2x 3 ph PMSM motor Field Oriented Control (FOC) with Resolver	Resolver / Encoder / Hall / Sensorless	Dual PMSM for power steering, braking, active suspension, traction drives… with higher demands on functional safety	12 V / 24 V	up to 10A
MTRCKTSBN5643L	MPC5643L	1x 3 ph BLDC motor 6-Step Commutation	Resolver / Encoder / Hall / Sensorless	Single BLDC for HVAC, pumps, engine cooling,… with higher demands on functional safety	12 V / 24 V	up to 10A
MTRCKTSPS5643L	MPC5643L	1x 3 ph PMSM motor Field Oriented Control (FOC) with Resolver	Resolver / Encoder / Hall / Sensorless	Single PMSM for power steering, braking, active suspension, traction drives… with higher demands on functional safety	12 V / 24 V	up to 10A
MTRCKTSBN5604P	MPC5604P	1x 3 ph BLDC motor 6-Step Commutation	Resolver / Encoder / Hall / Sensorless	BLDC for HVAC, pumps, engine cooling,…	12 V / 24 V	up to 10 A
MTRCKTSPS5604P	MPC5604P	2x 3 ph PMSM motor Field Oriented Control (FOC) with Resolver	Resolver / Encoder / Hall / Sensorless	PMSM for active suspension, traction drives,…	12 V / 24 V	up to 10A
MTRCKTSBN5606B	MPC5606B	1x 3 ph BLDC motor 6-Step Commutation	Resolver / Encoder / Hall / Sensorless	BLDC for HVAC, pumps, engine cooling,…	12 V / 24 V	up to 10A

S32K396 Motor Control Kit is Now Available

An advanced, integrated kit with powerful equipment to help you design your next PMSM motor control application.

Start your development

Software Ecosystem for Motor Control

Model-Based Design Toolbox (MBDT)

A comprehensive collection of tools that plug into the MATLAB® and Simulink® model-based design environment to support fast prototyping, verification and validation on NXP microcontroller-based real targets.

Automotive Math and Motor Control Library (AMMCLib)

A precompiled off-the-shelf software library with building blocks for motor control and general mathematical applications.

FreeMASTER Run-Time Debugging Tool

A user-friendly real-time debug monitor and data visualization tool that enables runtime configuration and tuning of embedded software applications.

Motor Control Application Tuning (MCAT)

A HMTL-based user-friendly graphical plug-in tool for PMSM FOC and BLDC motor control applications and real-time control structure parameter tuning through FreeMASTER debugging tool.

Engineering Support

Take advantage of the thousands of technical Q&A in our online engineering communities!
Get help from our support team and accelerate your design cycle.

Trainings

S32K324 Triple Permanent Magnet Synchronous Motor Control Reference Design Board Introduction

Training

Deep-dive into hardware interfaces and target applications of the MCTPTX1AK324.

A Model-Based Design (MBDT) Environment for Motor Control Algorithm Development

Training

This webinar, cohosted by MathWorks, shows how to design and develop Motor Control algorithms with Simulink®, using the Embedded Coder and Model-Based Design Toolbox for S32K3xx.

NXP Software and Tools Solutions for Motor Control Applications in Automotive

Training

In this session, you will learn about all the steps required to build complete solutions based on electric motors with NXP in-house solutions.

Deploying Motor Control Algorithms on NXP S32K from Simulink®

Training

Learn how to use MathWorks' new Motor Control Blockset™ together with Embedded Coder® to generate C code for motor control algorithms.

S32K3 Motor Control Training

Training

This webinar will explain motor control solutions powered by the NXP S32K3 MCU and the new motor control kit.

Motor Control Solutions Based on the Scalable and Secure S32K3 and S32K1 MCU Families

Training

Discover the motor control capabilities of 32-bit Arm® Cortex®-M-based S32K3 and K1 microcontroller families.

Design Resources

Design

3-Phase Permanent Magnet Synchronous Motor Control Development Kit with S32K396

The S32K396 LV Motor Control Kit (MCSPTR2AK396) is a highly advanced, modular kit for PMSM motor control applications.

Design

S32K344 Motor Control Development Kit for High-Power 48 V Applications

The MCSXTM4CK344 and MCDXTM4CK344 are motor control development kits for rapid prototyping and evaluation of high-power 48 V applications.

Design

S32M24x PMSM/BLDC Motor Control Evaluation Board

The S32M24xEVB-C064 and S32M24xEVB-L064 are evaluation boards engineered for 3-phase brushless direct current (BLDC) and permanent magnet synchronous motor (PMSM) control applications.
