Freedom Kit - MC33926, 5.0 A Throttle H-B

FRDM33926PNBEVM
Active

Roll over image to zoom in

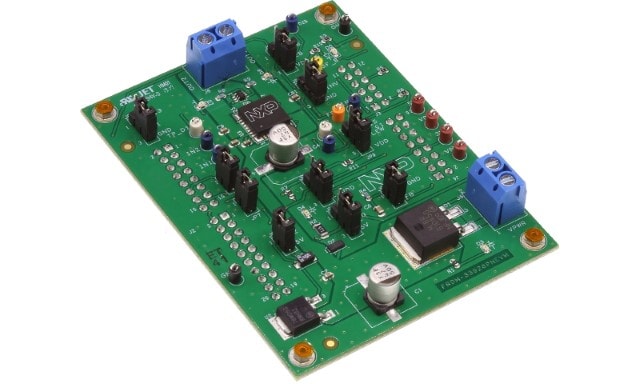

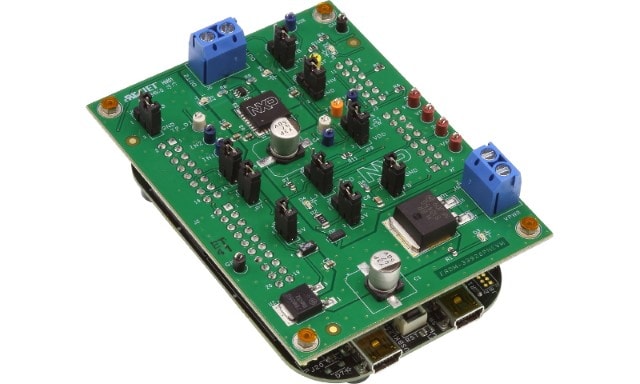

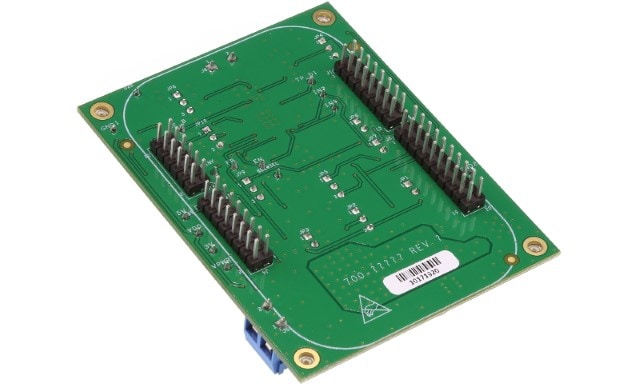

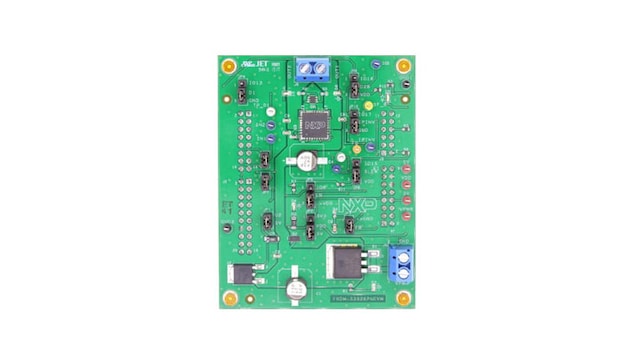

The Evaluation Kit features the 33926, which is a monolithic H-Bridge Power IC designed for any low-voltage DC servo motor control application in Industrial and Automotive within the current and voltage limits stated in this specification. One example of application in automotive is the electronic throttle control. The 33926 can control inductive loads with currents up to 5.0 A peak. RMS current capability is subject to the degree of heat-sinking provided to the device package. Internal peak-current limiting (regulation) is activated at load currents above 6.5 A ± 1.5 A. Output loads can be pulse-width modulated (PWM’ed) at frequencies up to 20 kHz. Supported with FRDM-KL25Z.

Product Details

Supported Devices

BLDC, H-Bridge, Stepper

  • MC33926: H-Bridge, Brushed DC Motor Driver, 5-28 V, 5 A, 20 kHz

Features

Connectivity

  • 3.0 V and 5.0 V TTL / CMOS Logic Compatible Inputs

Power Management

  • 8.0 V to 28 V Continuous Operation (Transient Operation from 5.0 V to 40 V)
  • Overcurrent Limiting (Regulation) via Internal Constant-Off-Time PWM
  • Output Short Circuit Protection (Short to VPWR or Ground)
  • Sleep mode with Current Draw < 50 µA (with Inputs Floating or Set to Match Default Logic States)

General Specifications

  • Temperature-Dependant Current-Limit Threshold Reduction
  • All Inputs have an Internal Source/Sink to Define the Default (Floating Input) States
  • 225 mΩ maximum RDS(ON) @ 150 °C (each H-Bridge MOSFET)

Software

  • SPIGen provides a PC-based interface allowing you to easily exercise FRDM-33926ESEVM functions to control a DC Brushed Motor. SPIGen runs on any Windows 7 or Windows 10 system and supports a maximum PWM frequency of 40 kHz.

Buy Options

KIT-33926PNBEVM-Image

Click to expand

KIT-33926PNBEVM
Active

Freedom Kit - MC33926, 5.0 A Throttle H-B.

    $54.00 USD
    In Stock :1

    Normally ships 1-2 business days

    ADD TO CART
    FRDM33926PNBEVM-Image

    Click to expand

    FRDM33926PNBEVM
    Active

    Freedom Kit - MC33926, 5.0 A Throttle H-B.

      $22.00 USD
      Pending Stock
      ADD TO CART
      Order from distributors

      Documentation

      Quick reference to our documentation types

      Filters

      3 documents

      Compact List

      Design Resources

      Select a section:

      Related Hardware

      Quick reference to our board types.
      Filters

      1 hardware offering

      Design Files

      Quick reference to our design files types.
      Filters

      2 design files

      Software

      Quick reference to our software types.

      Filters

      3 software files

      • Configuration Tools

        SPI Generator (SPIGen) Software

        Download Options
      • BSPs and Device Drivers

        FRDM33926PNBEVM: Driver and Demo App

        GITHUBRev 1Sep 24, 2024 16:35:001 KBFRDM33926PNBEVM-GITHUB-RESOURCE
        Download
      • BSPs and Device Drivers

        FRDM33926PNBEVM: Application Code Hub

        MCUXPRESSORev 1Sep 24, 2024 16:35:001 KBFRDM33926PNBEVM-APPLICATION-HUB
        Download
