MC9S12G64 Ultra Reliable 16-bit Tower System Module Demonstration Board

TWR-S12G64

Roll over image to zoom in

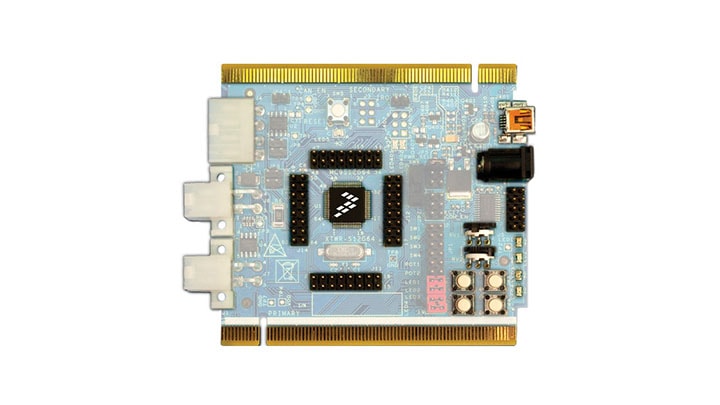

The TWR-S12G64 is a demonstration board for the NXP® MC9S12G64 automotive 16-bit MCUs. An integrated open-source BDM, software tools, and examples provided with the development board make application development and debug quick and easy. All MCU signals are available on one or both edge connectors.

The TWR-S12G64 operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform.

Product Details

Select a section:

Supported Devices

Processors and Microcontrollers

16-Bit S12 and S12X MCUs

  • S12G: Ultra-Reliable S12G General Purpose Automotive and Industrial Microcontrollers

Products

No Longer Manufactured

  • MC33661: LIN Enhanced Physical Interface

Features

Microcontroller

  • MC9S12G64, 64 LQFP
  • 25 MHz Bus Frequency
  • Internal oscillator

Memory

  • 64 kB flash, 2048B EEPROM, 4096B RAM

Connectivity

  • SCI, SPI, MSCAN
  • 4 2x8, 0.1" CTR, to access to all MCU pin signal

Power Management

  • Power input from OSBDM, Tower® System, or External 12 V Barrel Connector

Debug

  • Integrated open source BDM (OSBDM)

Components

  • 1 ea. high-speed CAN Physical Layer Transceiver
  • 1 ea, Enhanced LIN Physical Layer Transceiver
  • RS-232 Serial Data Physical Layer Transceiver
  • 4 user Push-Button Switches and 4 user LED Indicators
NXP

Buy Options

  • TWR-S12G64

  • Tower System, 16-bit MCU Module, MC9S12G64, 64KB Flash, Automotive.

    • Part Number TWR-S12G64 contains:
      • TWR-S12G64 board with a MC9S12G64 16-bit MCU
      • DVD with IDE software, training materials and collateral
      • USB cable
      • DB9 to IDC 2X5 Socket Header
      • NXP Warranty Card
    • Part Number TWR-S12G64-KIT also contains:
      • TWR-ELEV: Tower System Elevator Module
      • TWR-PROTO: Prototyping Module with perfboard area
  • $315.00 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor
  • $101.15 USD
  • For a quantity of 1
    • Availability: Pending stock
Buy from NXPBuy From Distributor

Documentation

Quick reference to our documentation types.

Filters

5 documents

Design Resources

Select a section:

Design Files

Filters

1 design file

  • Printed Circuit Boards and Schematics

    TWR-S12G64 - Schematics

    PDFRev CApr 13, 2013 00:00:00176.2 KBTWR-S12G64_SCH
    Sign in required
    Download

Software

Filters

2 software files

  • BSP, Drivers and Middleware

    LIN2.x and SAE J2602 Stack

    FLEXERARev v4.6.3Jan 30, 2020 00:00:001 KBFSL_LIN_2.X_DRIVER
    Download
  • Code Snippets

    Tower® S12G64 Software Demo.

    ZIPRev 1May 16, 2012 00:00:00304.3 KBTWR-S12G64_SW_DEMO
    Download
