Prototyping with Perfboard Area Tower System Module

TWR-PROTO Active

Roll over image to zoom in

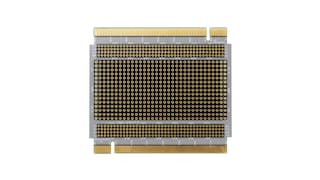

The NXP® TWR-PROTO Prototyping Module provides an easy way for you to add custom circuitry to your Tower® System designs.

  • The module is a 9 x 8 cm board with card-edge connectors that allows it to be plugged directly into the Tower System
  • The perfboard area provides access to all of the signals as well as a generous 8.3 x 3.8 cm prototyping area.
  • Designed to be combined and used with other MCU and peripheral modules in the Tower System

Product Details

Features

  • Broad board prototyping area with 5V, 3.3V, and GND access

Connectivity

  • Primary Connector
  • Primary Connector Signal Access
  • Secondary Connector Signal Access
  • Secondary Connector

Buy Options

TWR-PROTO-Image

Click to expand

  • TWR-PROTO
    Active

  • Tower System, Peripheral Module, Prototyping with Perfboard Area.

    • TWR-PROTO module
    • Quick Start Guide document
  • $17.24 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
