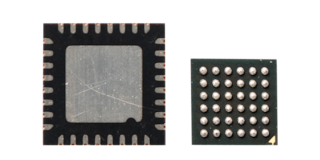

CLRC663 plus Family: High-Performance NFC Frontends
Design Files
Receive the full breakdown. See the product footprint and more in the eCad file.

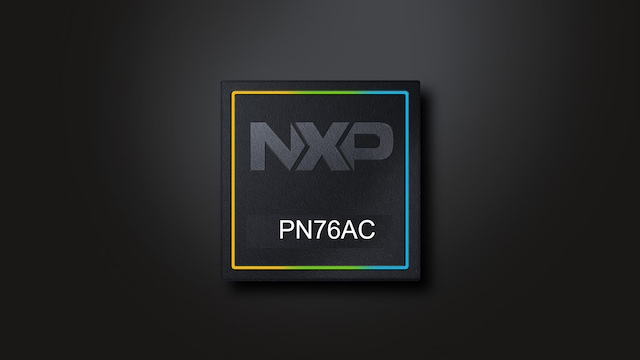

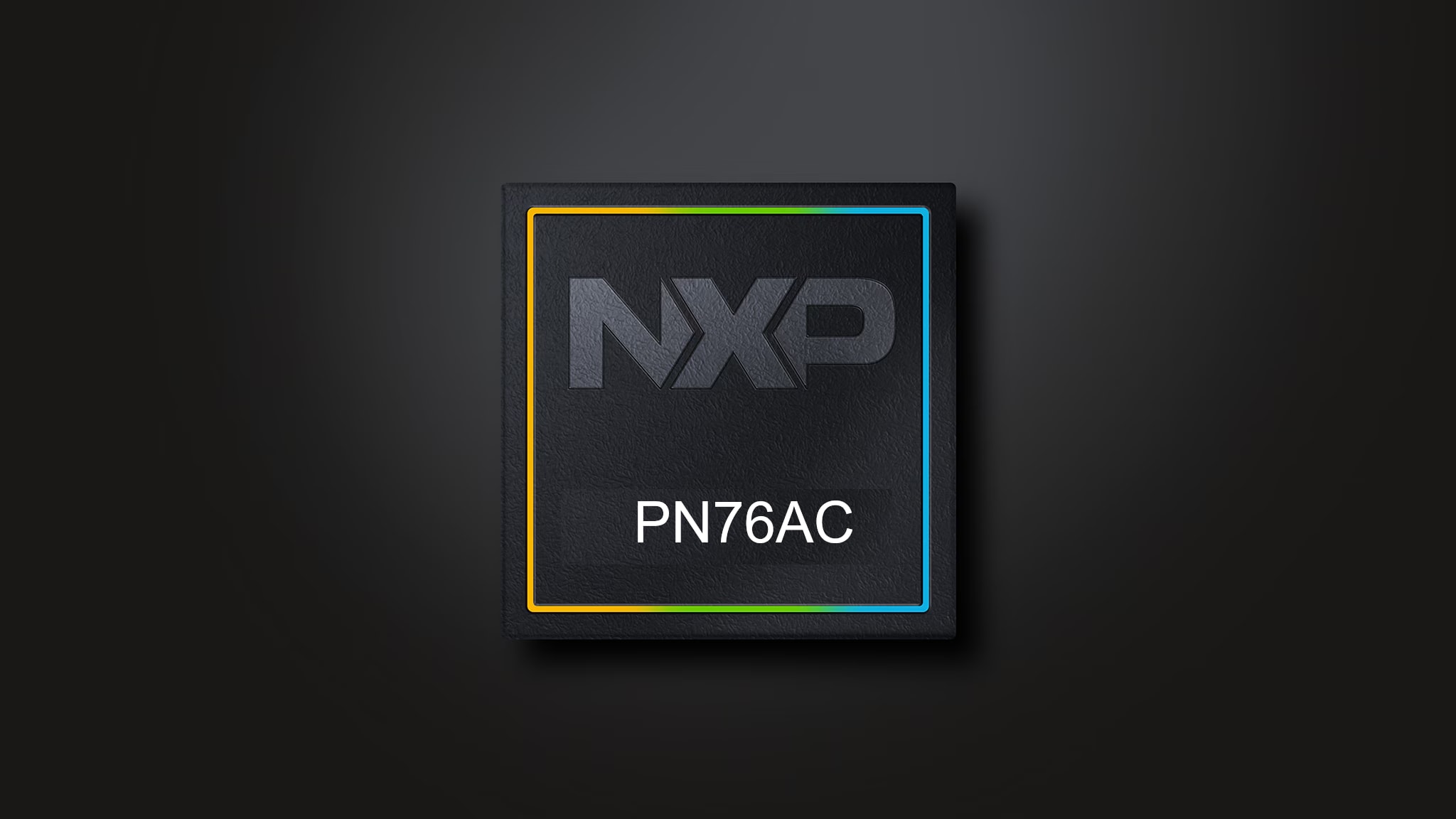

PN76AC: Plug-and-Play NFC Controller Connecting to NXP’s MCU and MPU Portfolio
PN76AC is a power‑optimized near field communication (NFC) controller with a near field communication controller interface (NCI), designed for battery‑operated devices and accessories for home and building automation, alarm gateways, smart appliances and healthcare. It offers serial peripheral interface (SPI) or inter‑integrated circuit (I²C) host interfaces, up to 2 W radio frequency (RF) output, ultra‑low‑power card detection for battery‑powered devices, dynamic power control and easy configuration. It also supports firmware updates for future feature upgrades.
Product Details
Features
RF Functionality
- Reader/Writer mode for ISO/IEC 14443-A
- ISO/IEC14443-B and FeliCa
Power Saving
- NFC radio with ultra‑low‑power card detection
System Integration
- Aliro-certified with MCX W72
- Fast porting to other microcontrollers (MCUs) and microprocessors (MPUs)
- Firmware update in-field (future NXP feature updates)
- System allows maximum flexibility to implement user‑defined software functionality on a connected host MCU
Related products

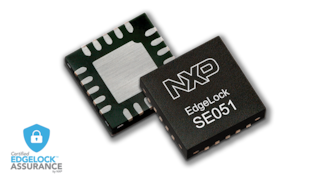

EdgeLock® SE051: Proven, Easy-to-Use IoT Security Solution with Support for Updatability and Custom Applets
