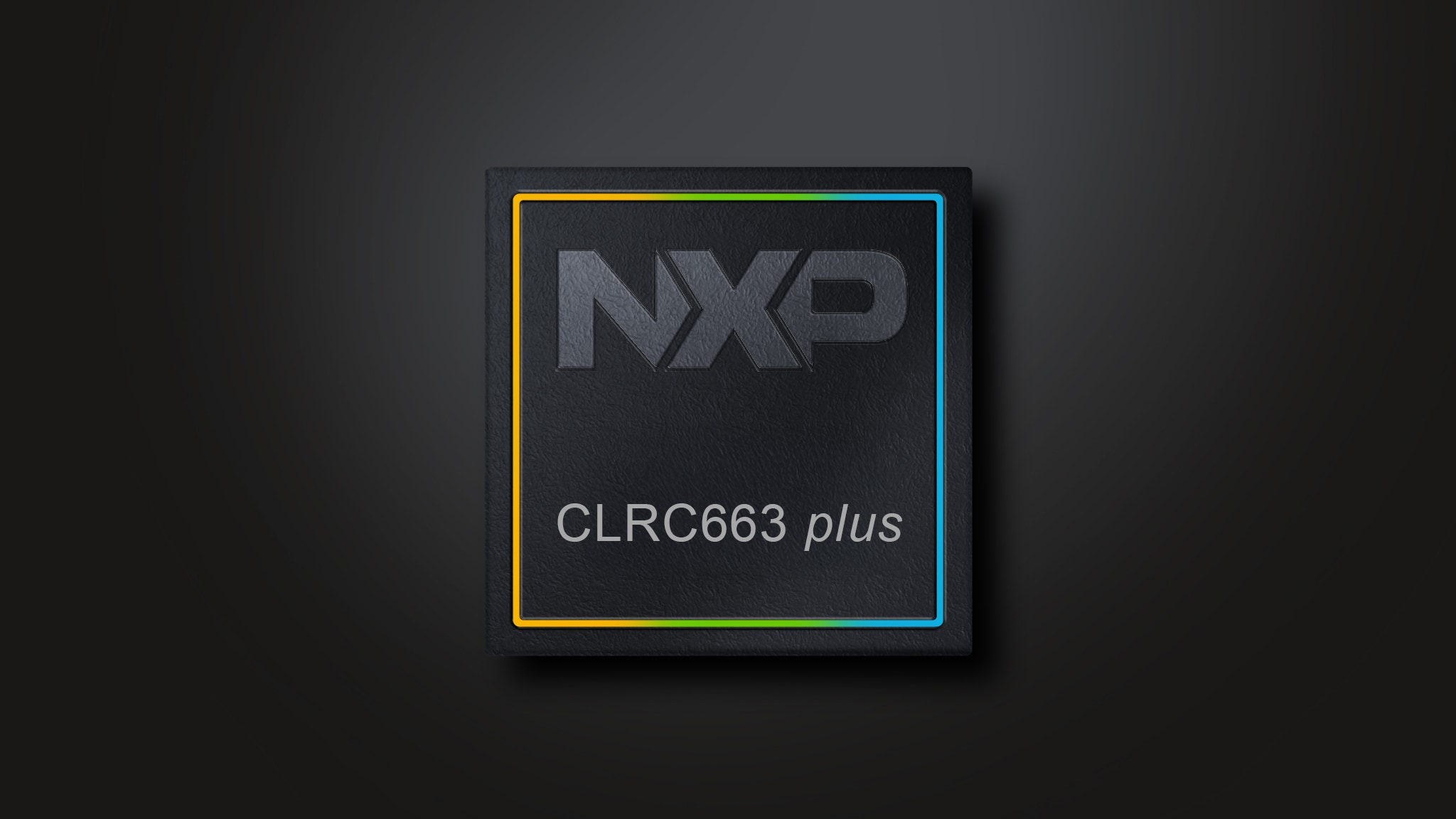

CLRC663 <i>plus</i> family

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

Please check the new online NFC Antenna Tool for tag and reader devices.

If you need high NFC performance or the lowest power consumption, use this remarkably efficient yet highly flexible frontend family to push your design further. It offers an extended temperature range, pin-to-pin compatibility within the CLRC663 plus family (see table below), and time-saving software tools. Supporting, among others, MIFARE^®, ISO/IEC 14443, ISO/IEC 15693, and ISO/IEC 18000-3m3, the CLRC663 plus family is the natural companion to match with NXP NFC tags.

The CLRC663 plus family is a great choice for NFC applications with high performance requirements: access control, gaming, and industrial.

A fast antenna design is supported by the NFC Antenna Design Hub, the PC based configuration tool "NFC Cockpit" enables simple configuration (e.g. RF register settings, DPC, AWC ) and compliance testing (EMVCo) of the device. The Feature complete software support library for NFC Frontend ICs, - the NFC reader Library - is designed to give developers a faster and simpler way to deliver NFC-enabled products.

Data Sheet

Application Notes

Product Details

Features

High performance and more flexible antenna design

Maximum transmitter current: 350 mA operating with 500 mA limiting value
Freely programmable 6 kB EEPROM

Longer battery life

Supply voltage: 2.5 to 5.5 V
Power-save modes: hard power-down, standby, extended LPCD options

Extended temperature range

HVQFN32: -40 to +105 °C (industrial/automotive)
VFBGA36: -40 to +85 °C

Multiple interfaces to support a broad range of microcontrollers

Host interfaces: SPI, I²C, UART
Up to 8 GPOs
512 byte FIFO buffer
high-security reader using SAM interface

Fast development

Supported by NFC Cockpit and NFC Reader Library
Complete range of development kits and boards

Full RF standard compliance

ISO/IEC 14443A/MIFARE
ISO/IEC 14443B
JIS X 6319-4 comparable with FeliCa™1 scheme
ISO/IEC 15693
ISO/IEC 18000-3 mode 3/ EPC Class-1 HF

Compact, reliable package

HVQFN32 (5×5×0.85mm) with wettable flanks
VFBGA36 (3.5×3.5×0.8mm) for smallest footprint
Pin-compatible to CLRC663 family

Comparison Table

	CLRC663 plus	CLRC661 plus	MFRC631 plus	MFRC630 plus	SLRC610 plus
ISO/IEC 14443A – MIFARE/NTAG	Yes	Yes	Yes	Yes
ISO/IEC 14443B	Yes		Yes
JIS X 6319-4 – FeliCa	Yes
ISO/IEC 15693 – ICODE SLIX/DNA	Yes	Yes			Yes
ISO/IEC 18000-3m3 – ICODE ILT	Yes	Yes			Yes
ISO/IEC 18092 passive initiator	Yes
HVQFN32 (5×5×0.85mm)	with wettable flanks
VFBGA36 (3.5×3.5×0.8mm)	yes
Product longevity program	10 years
