Name: NFC Antenna Development Kit
Price: 26.22 USD

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

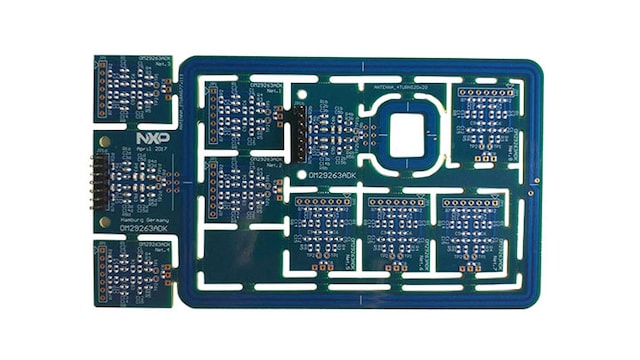

The NFC antenna development kit is a set of 2 ready-to-use pre-matched antennas for use with the CLRC663 plus development board (CLEV6630B). It consists of the popular 4 turns 20x20mm² and the 2 turns 77x113mm² antennas. It complements the standard 2 turns 65x65 mm² antenna and comes in addition of the 3 turns 30x50mm² antenna present in the CLRC663 plus development kit (OM26630FDK).

The NFC antenna development kit is also compatible with the CLRC663 development board (CLEV6630A) and can be optimized for the PN5180 (PNEV5180B/OM25180FDK) and PN7462 family (PNEV7462C/OM27462CDKP) development boards/kits using the 8 included antenna matching PCBs following the instructions in the quick start guide.

This NFC antenna development kit is an excellent tool to evaluate the performance of different antenna shapes and the quickest way to prototyping.

Design Files

Product Details

Supported Devices

RFID

NFC Readers

CLRC66303HN: CLRC663 plus Family: High-Performance NFC Frontends
MFRC63002HN: MFRC630: High-performance frontend for MIFARE^® and NTAG^® products in access control
PN5180: Full NFC Forum-Compliant Frontend IC
PN7462: NFC Cortex^®-M0 All-in-One Microcontroller with Optional Contact Interface for Access Control

Features

20x20 mm2 antenna optimal to interact with mobile phones
NTAG® or ICODE® SLIX where footprint is limited
77x113mm2 antenna for excellent performance with e.g. ICODE® ILT or MIFARE® including DESFIRE® family

Plug and play with CLRC663 plus development board

Plug and play with CLRC663 plus development board

Buy Options

Click to expand

OM29263ADK
Active
NFC Antenna Development Kit.

- Availability: Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order
