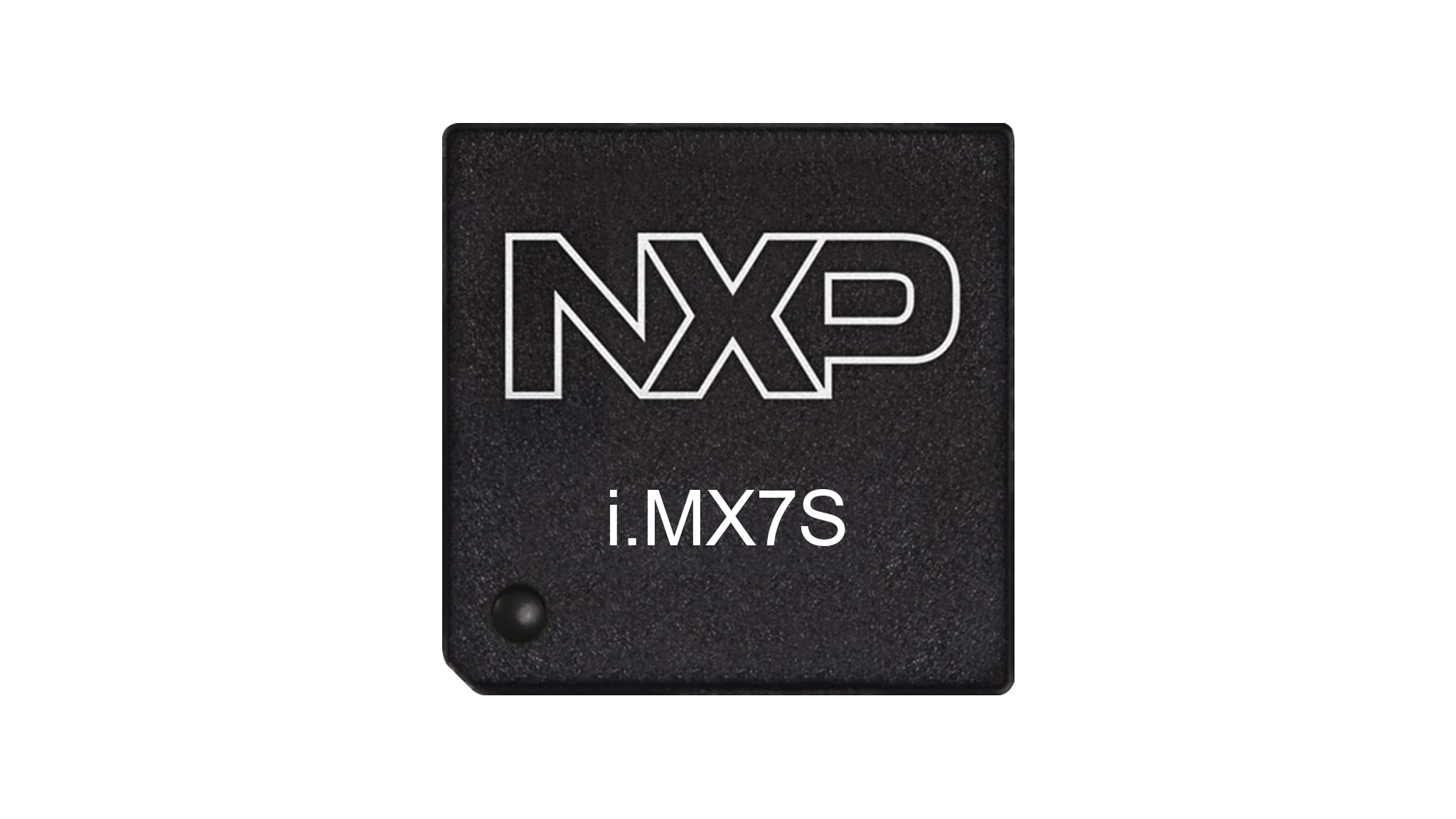

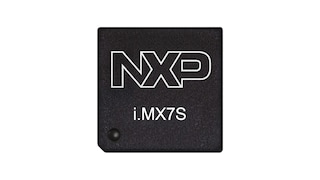

i.MX 7Solo Processors Family

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Click over video to play

The i.MX 7Solo family of processors represents our latest achievement in high-performance processing for low-power requirements with a high degree of functional integration. These processors are targeted towards the growing market of connected devices. The i.MX 7Solo family of processors features our advanced implementation of the Arm® Cortex®-A7 core, which operates at speeds of up to 1 GHz, as well as the Arm Cortex-M4 core. The i.MX 7Solo family supports multiple memory types including 16/32-bit DDR3L/LPDDR2/LPDDR3-1066, Quad SPI memory, NAND, eMMC and NOR. Several high-speed connectivity connections include Gigabit Ethernet with AVB and USB. Both parallel and serial Display and Camera interfaces are provided.

i.MX 7 applications processors are part of NXP's EdgeVerse™ edge computing platform.

Data Sheet

Reference Manual

Product Details

Block Diagram

i.MX 7Solo Applications Processors

Get diagram PDF

Features

Heterogeneous Multicore Processing Architecture, Arm Cortex-A7 and Cortex-M4 configuration
External Memory Support: DDR3/DDR3L/LPDDR2/LPDDR3
Flash Memory Support: NAND (60-bit ECC), Managed NAND (eMMC, eSD)
Single Gigabit ETH controllers supporting AVB
Parallel RGB and MIPI DSI Display Interfaces
Parallel and MIPI CSI Camera Interfaces
256 KB SRAM
Quad SPI
Communication Ports (I²C, SAI, UART, SPI, SDIO, USB)

Reduce Total Cost of Ownership by getting SoC Platform Development Assistance with NXP Professional Support

Are you working with NXP processors or microcontrollers?
Don’t spend your money solving issues that NXP has already solved.

With NXP’s Premium Support, you’re getting expert help and a contractually obligated agreement for high-quality technical assistance. Enjoy guaranteed response times and direct access to NXP engineers who have likely already solved the issues you are facing.

Benefits include:

Fast, personalized responses
Single point of contact
Eliminate spending time/energy/money on “solved problems”
Direct support from NXP engineers with rapid routing to subject matter experts if required
Guaranteed response time – with easy and effective escalation path if needed.
Peace of mind with contract-backed technical support
Tell your customers that you have a support agreement with NXP

Click here to discover how Premium Support can optimize your next design.
